Dutton-Lainson 14927 B1502 Plated Trailer Brake Winch 1500 Lbs Capacity
Dutton-Lainson 14927 B1502 Plated Trailer Brake Winch 1500 Lbs Capacity
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

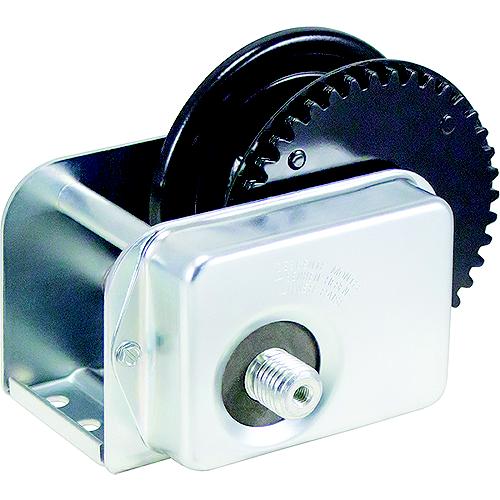

VideosThe Dutton-Lainson 14927 B1502 Plated Trailer Brake Winch 1500 Lbs is a 1500 lb brake winch for industrial use. Extra heavy duty construction for long life. Gear cover for enclosed braking mechanism, 2-1/2 inch reel hub diameter. Load locks in place when handle is released. Great for grain augers, boat lifts, pickup cranes, etc. Lift and lower with ease. A 150 pound minimum load required for winch to function properly. Powder coated black reel, zinc TUFFPLATE base and hardware. Handle included. NOTE: For boat lift applications, handle may be replaced by large wheel (supplied by lift manufacturer).
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
| Model | Rated Capacity | Min. Operating Load Required | Drum Hub Dia. | Gear Ratio | Handle Length | Maximum Mechanical Advantage | Maximum Drum Capacity Cable |
|
|---|---|---|---|---|---|---|---|---|
| B1200B | 1200 lb/545 kg (1) | 75 lb/34 kg | 1-1/8" | 4:1 | 12-1/4" | 72.9 | 7/32" x57' | |
| B1202B | 1200 lb/545 kg (2) | 75 lb/34 kg | 2-1/2" | 4:1 | 12-1/4" | 36.1 | 7/32" x46' | |
| B1500 | 1500 lb/681 kg (1) | 150 lb/68 kg | 1-1/8" | 6:1 | 12-1/4" | 106.9 | 1/4" x52' | |
| B1502 | 1500 lb/681 kg (2) | 150 lb/68 kg | 2-1/2" | 6:1 | 12-1/4" | 53.5 | 1/4" x45' | |
| B2500 | 2500 lb/1135 kg (1) | 300 lb/136 kg | 1-5/16" | 12:1 | 12-1/4" | 180.9 | 5/16" x51' | |
| B2502 | 2500 lb/1135 kg (2) | 300 lb/136 kg | 2-1/2" | 12:1 | 12-1/4" | 104.5 | 5/16" x45' | |
| B2503 | 2500 lb/1135 kg (2) | 300 lb/136 kg | 3-1/8" | 12:1 | 12-1/4" | 85.5 | 5/16" x40' | |
| B3503 | 3500 lb/1589 kg (2) | 500 lb/227 kg | 3-1/8" | 18.75:1 | 12-1/4" | 134 | 3/8" x28' | |
| B4010A | 4000 lb/1814 kg (2) (4) | - - | 2-1/2" | 41:1 | - - | - - | 9/32" x54' (27' per side) |
