Tekonsha 3021-P Plug-In Wiring Adapter For Electric Brake Controllers - Dodge
Tekonsha 3021-P Plug-In Wiring Adapter For Electric Brake Controllers - Dodge
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

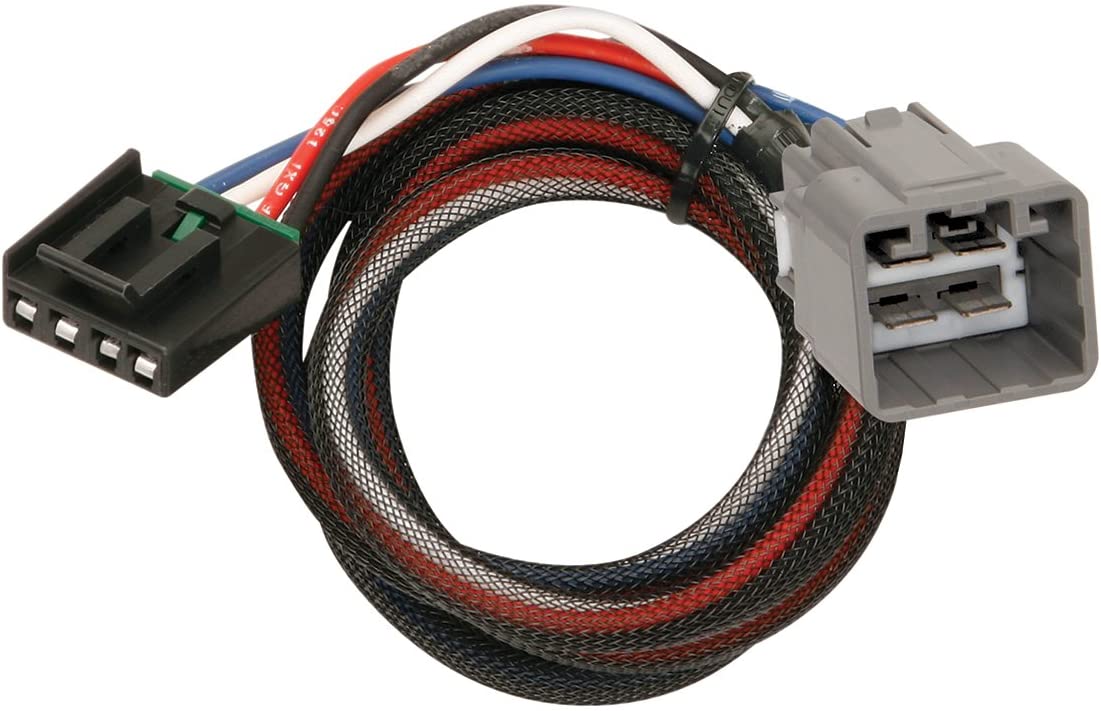

VideosInstall your electric brake controller quickly and easily with this custom Tekonsha 3021-P Plug-In Wiring Adapter. Simply plug one end of the adapter into your brake controller and then plug the other end into the built-in harness beneath your vehicle's dash.
Product Features
- Wiring adapter eases installation of your electric brake controller
- Custom connector end plugs into the built-in port beneath the dash of your vehicle
- Other end plugs into the back of your electric brake controller
- Compatible time-delayed brake controllers: Draw-Tite Activator I (5100), Draw-Tite Activator II (5500), Draw-Tite Activator III (5520) and Tekonsha PowerTrac (39523)
- Compatible proportional brake controllers: Tekonsha Prodigy (90185), Tekonsha P2 (90885), Tekonsha P3 (90195), Tekonsha Primus IQ (90160) and Tekonsha Voyager (39510)
- Limited 1-year warranty
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Installation of Tekonsha Brake Controller Adapter
This adapter plugs into the 4-pin connector on your vehicle's built-in brake control wiring harness. The harness is located underneath the dash, to the left of the steering column, taped to another harness near the emergency brake pedal.
To install your electric brake controller you need to connect the wiring of the controller to your vehicle. Certain manufacturers offer pre-wired options, typically known as tow packages, wherein these wires are run for you from the dash to the trailer connector on the back of your vehicle. Often, a brake controller wiring harness is included with your tow package. This harness plugs into a port beneath your dash and connects to the four wires of the brake controller. If, however, you have a brake controller with a plug in place of the four loose wires, you can use the Tekonsha adapter.
This adapter requires no hardwiring. It is designed to plug directly into your electric brake controller for the simplest installation possible. Because there are no wires to connect, installation is not permanent. You can unplug and remove your brake controller at any time and securely stow it away.
