Dexter 23-398 7 x 1-3/4 Inch Left Hand Hydraulic Brake Assembly
Dexter 23-398 7 x 1-3/4 Inch Left Hand Hydraulic Brake Assembly
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

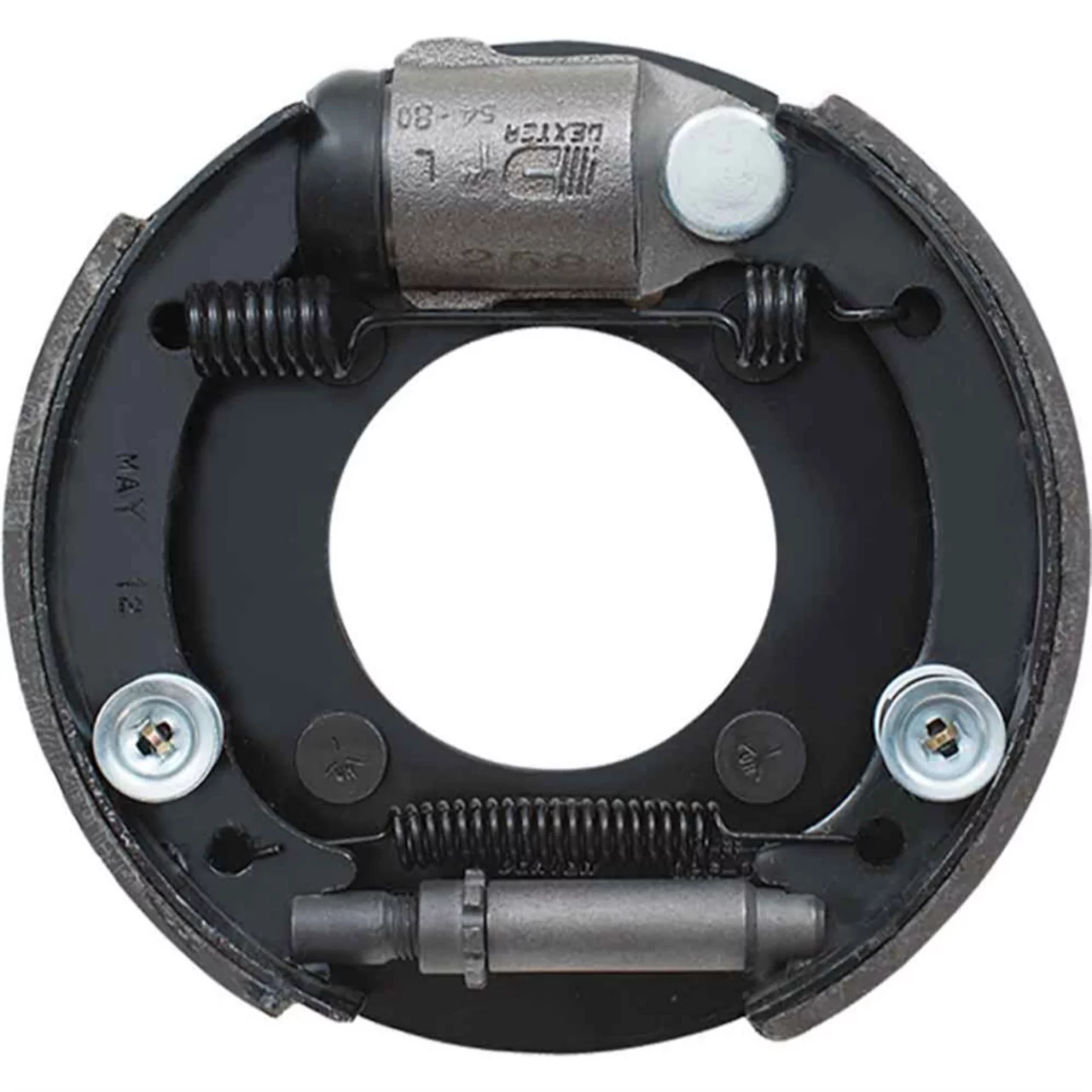

The Dexter 23-398 7 inch x 1-3/4 inch Left Hand Hydraulic Brake Assembly has a capacity of 2,500 lbs. per pair.
Uni-Servo
Dexter 7" x 1-3/4" Left hand hydrTaulic complete brake assembly 2500lb capacity per pair. Mounts with 4 bolts(included). Nuts-6-17 and washers-5-8 not included.
• Fits standard 2,000-2,500lb axles with a 4 bolt pattern on the mounting flange.
• Left Hand(driver's side)
• Complete assembly ready to bolt on and wire
• For use with a 7" inside diameter drum
• The shoes are 1-3/4" wide
To determine the size of the brake, you need 2 measurements. The first is the diameter of the brake(D). The second is the width of the shoe(W). It is good to take note of how many mounting bolts the brake has.
