Dexter 23-27 Right Hand Electric Brake Assembly - 10 Inch x 2-1/4 Inch - 3500 Lb Capacity
Dexter 23-27 Right Hand Electric Brake Assembly - 10 Inch x 2-1/4 Inch - 3500 Lb Capacity
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

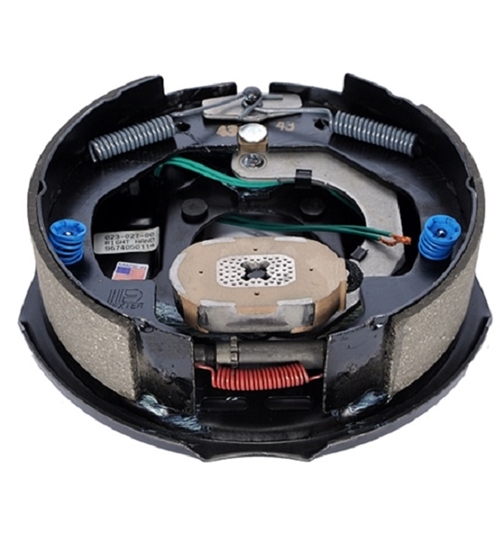

Dexter 10" x 2-1/4" Right Hand electric complete brake assembly. 3,500lbs capacity per pair. Mounts with 4 bolts (included), bolts are 2-7/8" apart, center to center. Uses 10" Hub/Drums. Nuts-6-17 and washers-5-8 sold separately.
Product Specifications
• Fits standard 3500lb axle with a 4 bolt pattern on the mounting flange.
• Right Hand(passenger's side)
• Complete assembly ready to bolt on and wire
• For use with a 10" inside diameter drum
• The shoes are 2 1/4" wide
To determine the size of the brake, you need 2 measurements. The first is the diameter of the brake(D). The second is the width of the shoe(W). It is good to take note of how many mounting bolts the brake has.
