Triton 10627 Amber 2 Inch Round LED Clearance Sidemarker Light - 2 Pack (MCL-55AB)
Triton 10627 Amber 2 Inch Round LED Clearance Sidemarker Light - 2 Pack (MCL-55AB)
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

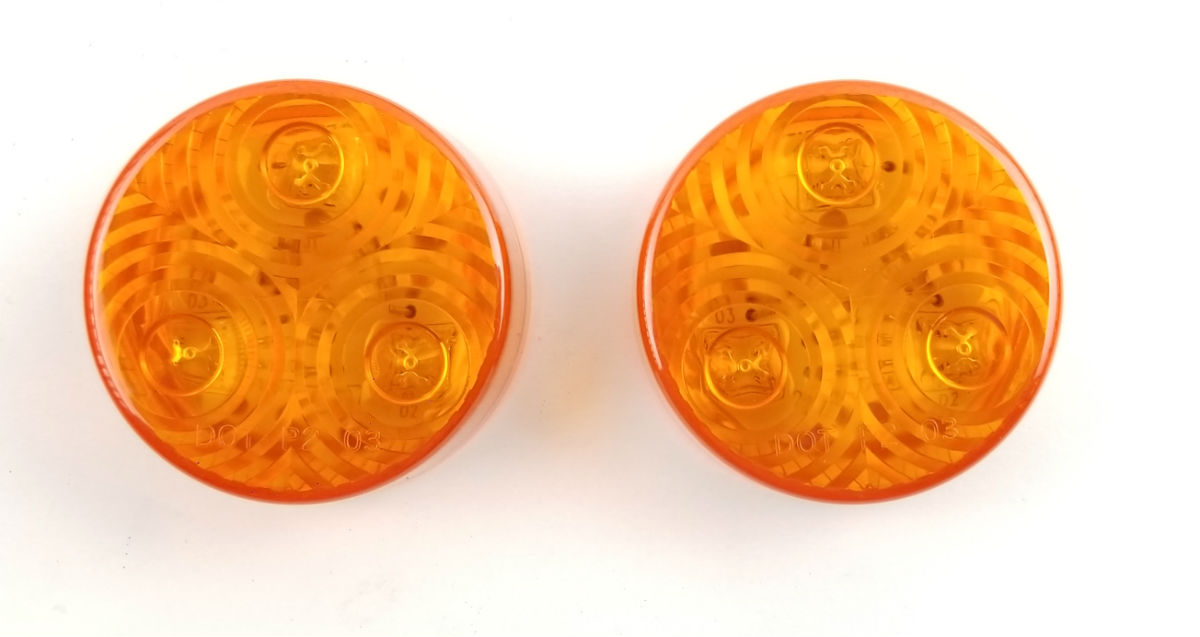

Triton 10627 Amber 2-inch Round LED Clearance Sidemarker Light is sealed against the elements and outdoor weather conditions. The Triton 03534 Rubber Grommet works with this light. Lights come in a package of 2.
Features
- Color: Amber
- Diameter: 2 Inches
- Shape: Round
- Type: LED
- Qty: 2
- Optronics LED (MCL-55AB)
Not sure exactly what year / model your Triton Trailer is?
Click here to view our Triton VIN Number Breakdown Chart!
Additional Information
Hanna Trailer Supply Snowmobile Trailers - Available Now!
Hanna Trailer Supply Snowmobile Trailer Parts And Accessories
A Comprehensive Guide For Getting Your Snowmobile Trailer Ready For The Season
Ask The Triton Expert
"What is the color code for the wires on my Triton trailer?"
Most trailers have four basic wires for trailer lights. Trailers with brakes will have more for the braking systems that are available. Shown below is the basic coloring for Triton's trailers.
No Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground
Surge Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground
Blue/Gray= free backing valve
(goes to vehicle reverse lights)
Normally the center pole of a 7-round plug is for the free backing valve
Electric Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground
Red=electric brakes
Black= breakaway battery hot wire
Blue= backing lights
Any additional 12v accessories would have to be addressed separately.
"Why do I have more wires than connections going into my plug?"
The front wire harness plugs that plugs into the vehicle may have extra wires running into them. You might notice that you will have 6 wires going into a flat four plug. Most of the time the running light wire (brown) and ground wire (white) is ran to both sides making it look like 6 wires are going into the plug. Your plug basically merges these two "like" wires together to make the standard four wire connection of yellow, green, brown, and white.
If you are splicing in a plug instead of getting a new front leader section then simply merge the two white wires and the two browns wires to go from 6 wires to 4 wires to match the new plug.
