HWH R1171 Replacement Spring Kit for Hydraulic Leveling Jacks (2 Springs)

Brands:
Product Number: HWH-R1171
Vendor Number: R1171
$80.95 $36.99

HWH R1171 Replacement Spring Kit for Hydraulic Leveling Jacks (2 Springs)

Brands:
Product Number: HWH-R1171
Vendor Number: R1171
$80.95 $36.99 You Save $43.96 (54.3%)
Adding this item to your cart will qualify your order for US domestic

QTY:

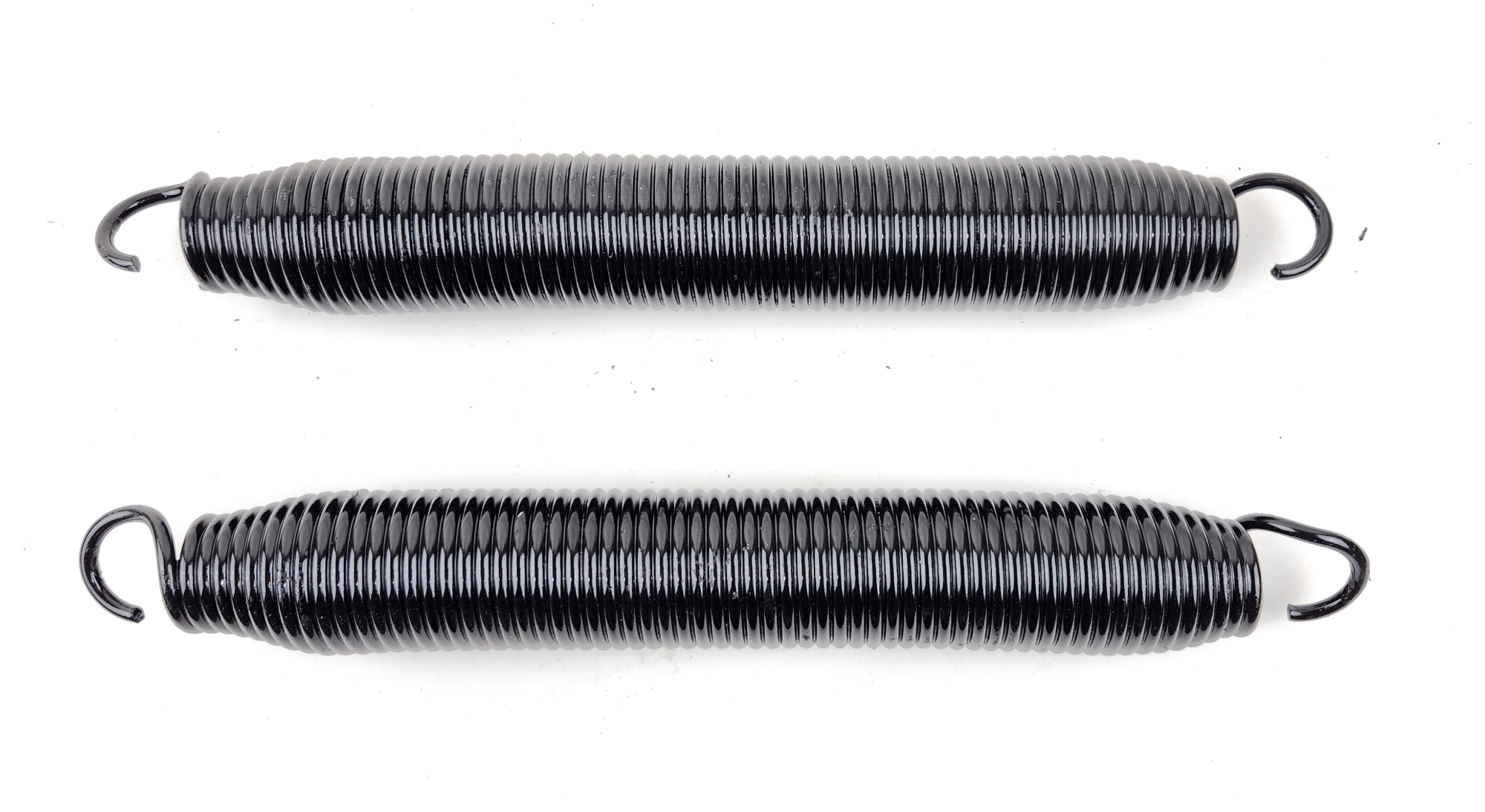

This listing is for one R1171 replacement spring kit for HWH Hydraulic Leveling Jacks. Each kit contains two springs.

R1171 Spring Kit Specifications:

  • 12-1/4" x 1-5/8" from end of hook to end of hook
  • 10-1/16" x 1-5/8" from base of hook to base of hook
  • 1.68" diameter
  • 57 coils
  • Used on 9,000 lb HWH Hydraulic Jacks with 8-1/2" or 14" stroke

Do you need two sets of these springs? Click here to save BIG on a two pack (4 springs)!

NOTE: Counting coils and measuring the diameter of existing springs is only a guide. To make certain you order the correct springs, please find the AP# stamped on your HWH hydraulic jack. Provide this info and we can verify the proper jack springs for your RV.

Which HWH Spring Kit is the right one for replacing the springs on my HWH Hydraulic Jack?



Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Instruction Sheet for Jack Spring Removal and Replacement

If a vehicle is parked or stored for an extended period of time and the jacks fail to retract completely, extend the jacks back down to the ground then retract the jacks again. If the jacks do not retract completely without assistance, replace the springs. There are two (2) springs included in each spring kit. The correct spring kit must be used.

HWH RV Jack Replacement Spring Size Chart



Great transaction
By: Linda
on 6/8/2015
I received an extremely well packaged set of these springs very quickly. They do not look exactly like the ones that broke, but because of info on this site; I'm sure they're the correct replacements. I'm going to have them professionally installed because I don't have the strength to do it myself. So far, so good.
