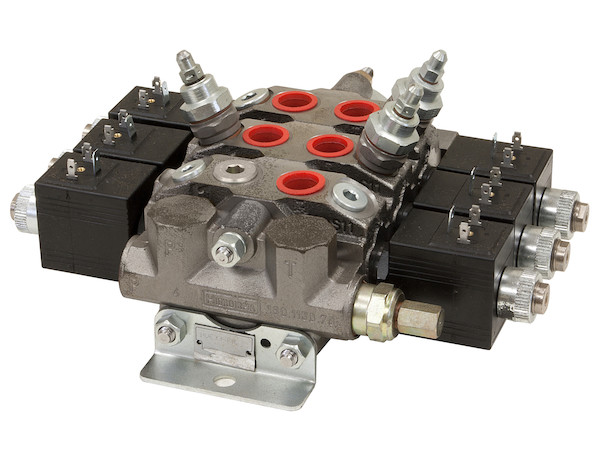

Buyers HVE334PB Electric Sectional Valve 3-Way/3-Way/4-Way/PB
The compact Electric Sectional Valve from Buyers Products features a compact design. Its electrical controls allow you to mount a switch in the cab and control the valve remotely. It's great for smaller trucks and plow trucks. The 12V valve is rated to a max flow of 11 GPM. It features a simple on/off (non-proportional) flow. It can handle a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI ). Two additional adjustable port reliefs -- angle and dump -- are available to provide protection for the specific job. The valve has cylinder spools, and features load hold check in the neutral position, precision-machined and ground spools, and easily replaceable spool end seals. Additional configurations are available. Please contact Customer Service for further information.
- Many configurations available to fit your exact needs.
- Electric controls take less room in your cab -- great for smaller trucks.
- Tough cast-iron sectional design for reliability and versatility.
- Handles demanding jobs with a maximum rating of 4300 PSI (when the main relief is set to a higher pressure).
- Adjustable main relief lets you tackle jobs of varying demands.
- Additional job-specific workload protection with optional port reliefs (angle and dump) available.
Specifications
| Amps per Coil | 2.5 | Coil Voltage | 12 |
| Electrically Operated (y/n) | Yes | Inlet Port Size | 1/2 SAE ORB (-8) |
| Main Relief Setting | 1300-3000 (Set at 2150) PSI | Maximum Flow Rate | 11 GPM |
| Maximum Pressure | 3600 PSI | Number of spools | 3 |
| Out Port Size | #8" | Outlet Port Size | 1/2 SAE ORB (-8) |
| Port Relief Angle | 1900-4300 (Set at 2150) | Port Relief Dump | 400-1900 (Set at 600) |
| Port reliefs ( Y/N) | No | Port Type | SAE |
| Power Beyond (y/n) | Yes | Relief (Y/N) | Yes |
| Spool Action 1 | Power Up/Gravity Down | Spool Action 2 | Power Up/Gravity Down |
| Spool Action 3 | Power Up/Power Down | Work Port Size | 1/2 SAE ORB (-8) |
| Shipping Weight | 12 lb |
