Buyers PU5007 4 Way/3 Way DC Power Unit-Manual Controls Horizontal 1.8 Quart Reservoir

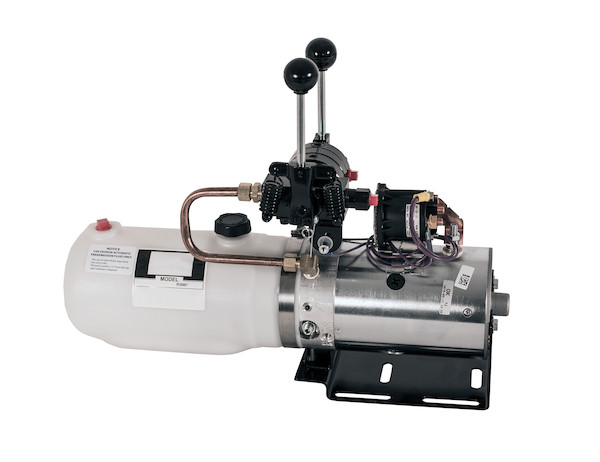

The 4 Way/3 Way DC Power Unit - Manual Controls from Buyers Products is an all-in-one, compact power pack. This horizontal-mount power unit is ideal for powering snow plow lift and angle operations. It features rod and ball manual control handles for each valve. The 3 way and 4 way valves are banked. The 4 way valve is a tandem center rotary shear type valve, with 0.250 NPTF outlets. The 3 way valve has a checked cylinder port and 0.250 NPTF outlet. The valve assembly is fitted with electrical contact for synchronizing the valve wit the motor. The assembly has a suction filter.
- Compact, cost-effective power for snow plow lift and angle operations.
- Includes everything you need to power the job.
- 3 way/4 way functionality for power lift and angle cylinders.
- Included rod and ball handles.
- 4 way valve is a tandem center rotary shear type valve, with 0.250 NPTF outlets.
- The 3 way valve has a checked cylinder port and 0.250 NPTF outlet.
- Valve assembly is fitted with electrical contact for synchronizing the valve wit the motor. The assembly has a suction filter.
Specifications
| Controller Included? | No | Height | 4.50" |
| Length | 10" | Manual or Push Button | Manual |
| Motor Horsepower | 1.5 HP | Motor Power (kW) | 1.5 |
| Motor Voltage | 12 VDC | Mounting Position | Horizontal |
| Number of Cartridge Valves | 0 | Outlet Port Size | 1/4 NPT |
| Pressure Rating | 2000 PSI | Reservoir Material | Polyethylene |
| Reservoir Usable Volume | .45 Gal | Reservoir Volume (Gal) | 0.45 |
| Spool Action | Power Up/Gravity Down - Spring Center | Spool Action | Power Up/Power Down - Spring Center |
| Width | 4.5" | Shipping Weight | 35 lb |
