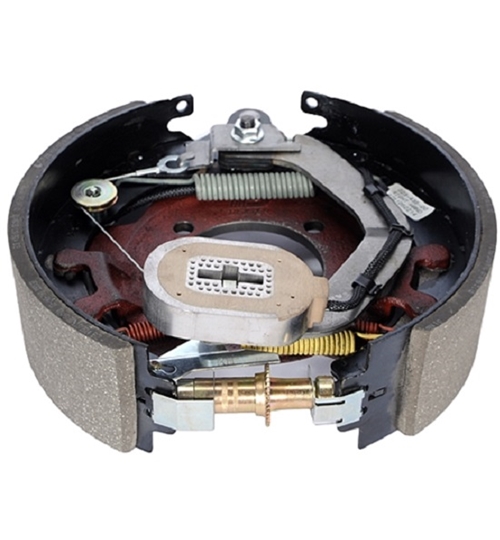

Dexter 23-435 Electric Trailer Brake Assembly Right Hand 12-1/4 Inch x 3-3/8 Inch - 8-9K Lb Capacity
Dexter 23-435 Electric Trailer Brake Assembly Right Hand 12-1/4 Inch x 3-3/8 Inch - 8-9K Lb Capacity
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Dexter 12-1/4" x 3-3/8" 8,000lb-9,000lb (with a 4 bolt flange) Right hand electric brake. Complete assembly. Self-adjusting design keeps shoes properly aligned for longer-lasting brake that requires less maintenance. Axle bore diameter: 3-7/8" Mounts with 4 bolts (not included). Locknuts-6-46 and bolts-7-97 sold separately.
» Was redesigned with forward self-adjusting feature in June 1996.
» Was redesigned with a cast backing plate in May 2000 replacing the stamped version.
Product Specifications
• Fits Dexter 8,000lb-9,000lb axles(with cast backing and 4 bolt flange)
• For use with a 12 1/4" inside diameter and 3 3/8" deep drum
• Shoes are 3-3/8" wide
• Self-adjusting
• Right hand(passenger's side)
• Complete assembly ready to install
To determine the size of the brake, you need 2 measurements. The first is the diameter of the brake(D). The second is the width of the shoe(W). It is good to take note of how many mounting bolts the brake has.
