Bigfoot SQI24-IMO Hydraulic Single Leg Trailer Jack w/ Manual Override - 12000 Lb - 24 Inch Lift
Bigfoot SQI24-IMO Hydraulic Single Leg Trailer Jack w/ Manual Override - 12000 Lb - 24 Inch Lift
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

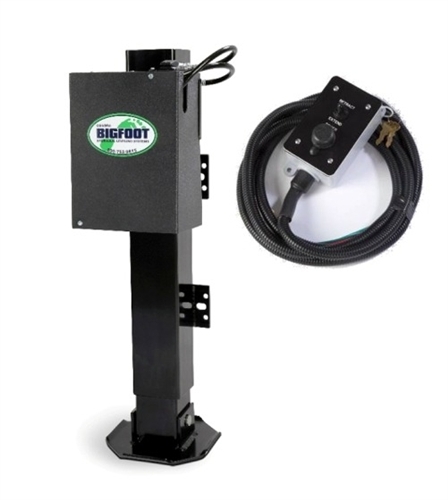

The Bigfoot SQI24-IMO single point, single pump 12,000 Lb square leg jack can be used on any horse, cargo, heavy equipment, bumper-pull or gooseneck trailer.

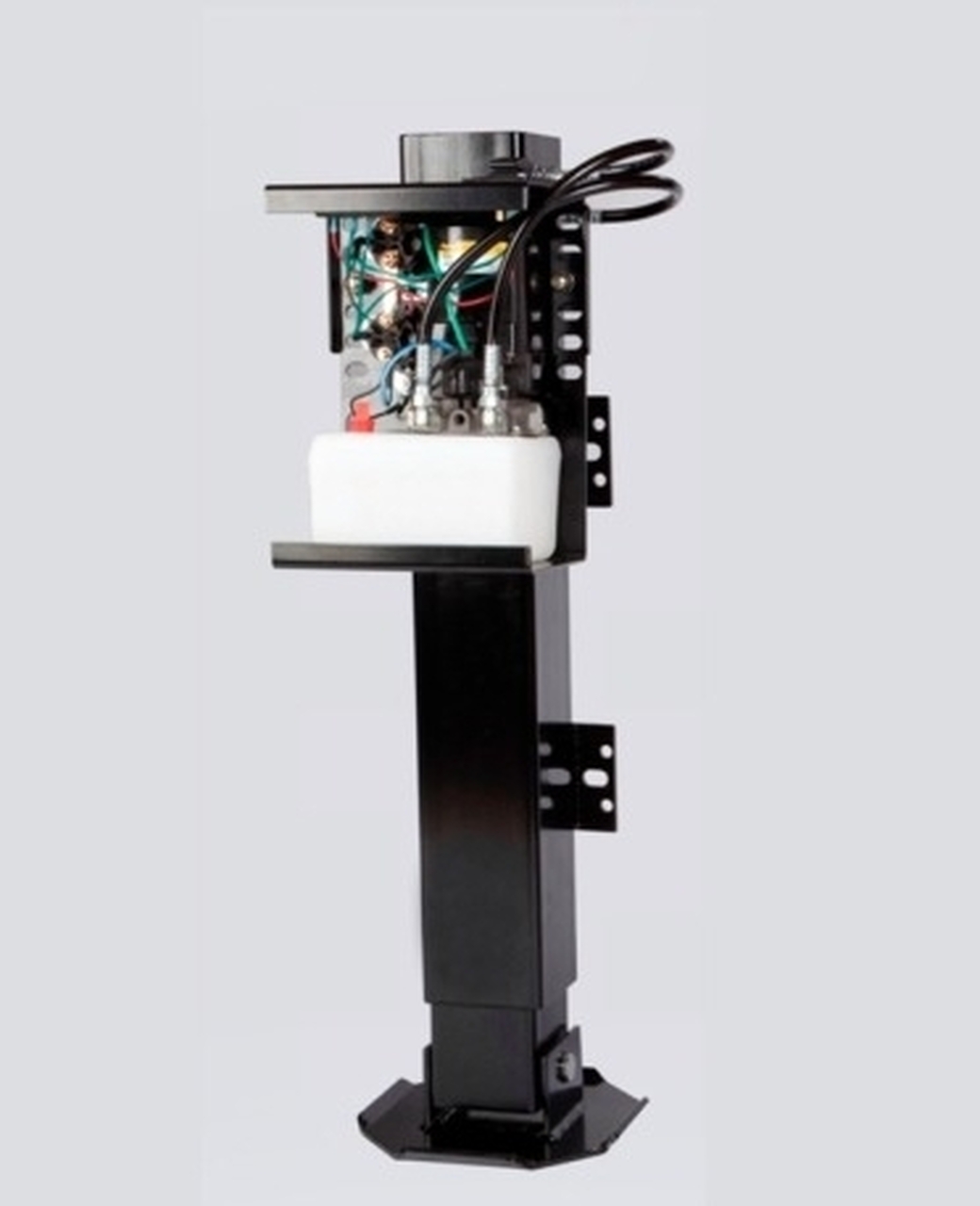

The 35" overall length in the retracted position and has 24" of travel. This unit has the standard control option with a weatherproof control box. This unit has the manual override option that enables operation with no power to the system. This unit also has the wireless control option with a key fob and secondary controls inside the tank assembly. Comes complete with everything you need: pump/motor, wires, mounting brackets, manual override and a weatherproof box with key lock. Pump comes standard mounted to the front of the jack, but it can also be remotely mounted. This trailer jack has a hex drive manual override in case of power failure.
Product Specifications:
- Single leg
- 12,000 Lb capacity
- 4-1/2" x 4-1/2" inch outer tube
- 11-1/2" x 5-1/2" tank assembly
- 24" Lift
- 59" extended height
- 35" retracted height
- Includes wireless control
- Wireless remote switch
- Hex drive manual override
- 10" x 10" large swivel foot pad
- 20" mounting bracket
- Pump comes mounted to the front, but can be remotely mounted
- Limited Manufacturer Warranty: 5 years cylinders, 2 years parts, 1 year labor
