Dexter 8-174-5UC3-EZ Complete E-Z Lube Hub and Drum Assembly for 6,000 and 7,000 lb Axles - 5 Spoke
Dexter 8-174-5UC3-EZ Complete E-Z Lube Hub and Drum Assembly for 6,000 and 7,000 lb Axles - 5 Spoke
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

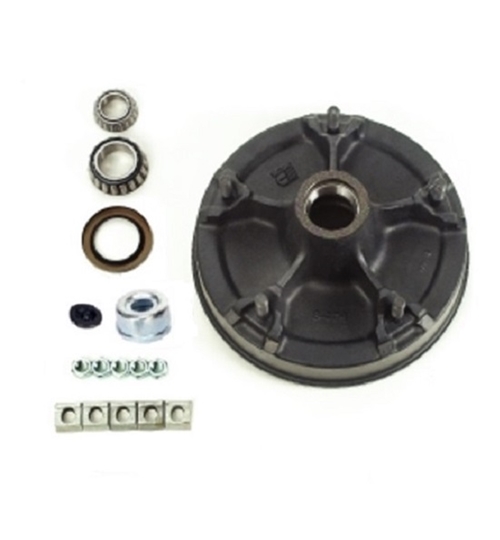

Install this hub-and-drum assembly on your trailer. Fits 6,000-lb and 7,000-lb axles E-Z Lube Axles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, grease cap, wheel bolts, and lug nuts included. This hub & drum is designed for use with axles with a #42 spindle.
Redline BK3-100 Trailer Bearing Kit (1 Wheel)
Product Features
- Trailer hub-and-drum assembly provides surface area for brake shoes to grip when brake is activated
- Compatible with electric and hydraulic drum brakes
- Sturdy iron construction
- Bearings, races, grease seal, grease cap, wheel bolts, and lug nuts are included
- Hub and drum are made in the USA
Product Specifications
- Application: 6,000-lb to 7,000-lb trailer axles
- Drum dimensions: 12" diameter x 2" wide
- Works with 12" brake assembly
- Bolt pattern: 5-spoke utility
- Distance from bolt to bolt: 6-1/2"
- Distance from bolt to center: 5-3/8"
- Wheel stud diameter: 9/16"
- Grease cap flange diameter: 2.446"
- Weight capacity: 3,500 lbs per hub
Bearing, Race, & Seal Information
- Bearings (included)
- Inner bearing: 25580 (1.75" inner diameter)
- Outer bearing: 15123 (1.25" inner diameter)
- Races (included)
- Inner race: 25520
- Outer race: 15245
- Grease seal (included): 10-36
- Inner diameter: 2.25"
- Outer diameter: 3.376"
Dexter Trailer Hubs and Drums - 8-174-5UC3-EZ
- 5 Spoke Utility
- For 6000 lbs Axles
- For 7000 lbs Axles
- Hub with Integrated Drum
- Standard
- 9/16 Inch Stud
- 15123
- 25580
- E-Z Lube
- Dexter
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
