This listing is for one Dexter 42866UC3-EZ E-Z-Lube Hub and Drum Assembly for 5,200 lb to 7,000 lb Axles - 8 on 6-1/2
This hub & drum is designed for use with a #42 spindle. Install this hub-and-drum assembly on your trailer. Fits 5,200-lb to 7,000-lb E-Z Lube axles. Inner bearing (25580) and race, outer bearing (14125A) and race, grease seal, grease cap, wheel bolts, and lug nuts included. Each hub has a 3,500lb capacity. Spindle nut and spindle washer sold separately. Each hub & drum has unique cooling fins to help keep your brakes cool.
Product Features
- Trailer hub-and-drum assembly provides surface area for brake shoes to grip when brake is activated
- Compatible with electric and hydraulic drum brakes
- E-Z Lube-compatible grease cap makes lubricating bearings fast and easy
- Remove rubber plug to access zerk fitting on spindle - no need to disassemble hub
- Sturdy iron construction
- Bearings, races, grease seal, grease cap, wheel bolts, and lug nuts are included
- Hub and drum are made in the USA
Product Specifications
- Application: 5,200-lb to 7,000-lb E-Z Lube trailer axles with #42 spindles
- Drum dimensions: 12" diameter x 2" wide
- Works with 12" brake assembly
- Bolt pattern: 8 on 6-1/2"
- Grease cap flange diameter: 2.72"
- Wheel stud diameter: 1/2"
- Weight capacity: 3,500 lbs per hub
Bearing, Race, & Seal Information
- Bearings (included)
- Inner bearing: 25580 (1.75" inner diameter)
- Outer bearing: 14125A (1.25" inner diameter)
- Races (included)
- Inner race: 25520
- Outer race: 14276
- Grease seal (included): 10-36
- Inner diameter: 2.25"
- Outer diameter: 3.376

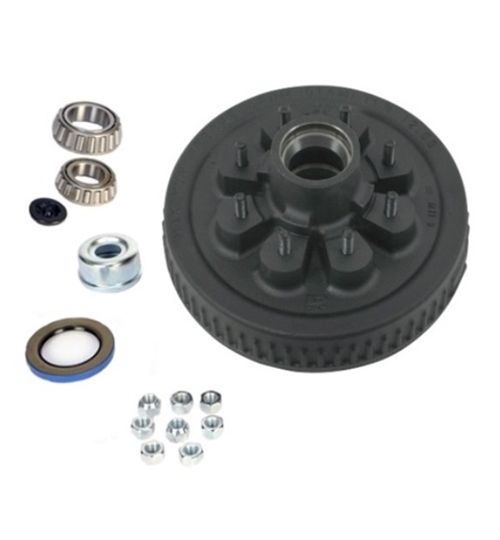

Items in Kit
• 1 25580 Inner Bearing (1.75" ID)
• 1 14125A Outer Bearing (1.25" ID)
• 1 25520 Inner Race (Already Pressed In) 3.265" OD
• 1 14276 Outer Race (Already Pressed In) 2.717" OD
• 1 10-36 Grease Seal (2.25" x 3.376")
• 1 21-43-1 Grease Cap (2.72" OD)
• 1 85-1 Grease Cap Plug
• 8 X1023R Coned Wheel Nuts
• 1 8 on 6.5" Hub & Drum
• 3,500lb Capacity Per Hub
• Use with a 12" x 2" brake
Dexter Trailer Hubs and Drums - 42866UC3-EZ
- 8 on 6-1/2 Inch
- For 5200 lbs Axles
- For 6000 lbs Axles
- For 7000 lbs Axles
- Hub with Integrated Drum
- 16 Inch Wheel
- 16-1/2 Inch Wheel
- 17 Inch Wheel
- 17-1/2 Inch Wheel
- EZ Lube
- 14125A
- 25580
- Dexter
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
