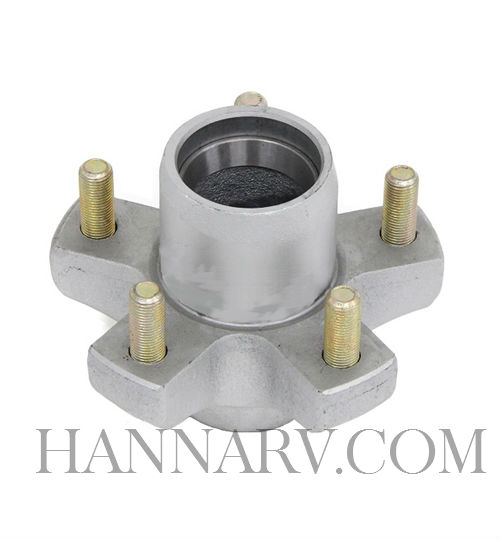

Dexter 8-259-50 GAL-DEX Hub Only - 5 on 4.5 - L44649 Bearings - 5.5 Inch Hub Flange - Fits BTR 1-1/16 Inch Spindle
Dexter 8-259-50 GAL-DEX Hub Only - 5 on 4.5 - L44649 Bearings - 5.5 Inch Hub Flange - Fits BTR 1-1/16 Inch Spindle
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Galvanized hub is for use on idler axles. Trailer hub fits 2,000-lb and 2,200-lb idler axles with BT8 or BTR spindles. Inner and outer races included. Bearings, grease seal, grease cap, and galvanized lug nuts sold separately.
Corrosion Resistance for Marine Use
This trailer hub has a zinc coating that resists corrosion, making it ideal for use on your boat or snowmobile trailer. All GAL-DEX hubs undergo a test in which they are sprayed with a 5-percent salt solution to determine corrosion resistance over time. These products are able to withstand 500 hours of constant exposure to the saltwater mist. This 500-hour salt spray rating indicates that a product is not only durable enough to last in freshwater environments, but it can also be used on trailers that come into contact with saltwater.
Product Features
- Marine-grade trailer hub fits idler axles
- Includes inner and outer races
- Requires bearings, grease seal, grease cap, and lug nuts (sold separately)
- Zinc plating has a 500-hour salt spray rating
- Ideal for use on a boat or snowmobile trailer
- Durable enough for saltwater applications
- Made in the USA
- GAL-DEX™ corrosion resistant finish (Marine)
Product Specifications
- Application: 2,000-lb and 2,200-lb axles with 1" BT8 or 1-1/16" BTR spindles
- Wheel size: 8" to 12"
- Hub flange diameter: 5-1/2"
- Bolt pattern: 5 on 4-1/2"
- Wheel bolt dimensions: 1/2" diameter x 2" long
- Grease cap flange diameter: 1.988"
- Weight capacity: 1,100 lbs per hub
Bearing, Race, & Seal Information
- Bearings (sold separately)
- Inner bearing: L44643 or L44649
- Outer bearing: L44643 or L44649
- Races (included)
- Inner race: L44610
- Outer race: L44610
- Grease seal (sold separately): 10-60
To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.
Dexter Trailer Hubs and Drums - 8-259-50
- 5 on 4-1/2 Inch
- For 2000 lbs Axles
- For 2200 lbs Axles
- Hub
- 10 Inch Wheel
- 12 Inch Wheel
- Standard
- 1/2 Inch Stud
- L44643
- L44649
- L44643
- L44649
- Dexter
Dexter 8-259-50 GAL-DEX Hub Only - 5 on 4.5 - L44649 Bearings - 5.5 Inch Hub Flange - Fits BTR 1-1/16 Inch Spindle
008-259-50 Dexter Trailer Idler Hub with Races for 2K and 2.2K Axle - 5 on 4-1/2 - GAL-DEX Replaces 8-259-50
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
