Trailer Parts Pro H34822BX-116 Boxed Pregreased Hub Assembly - 4 on 4 - L44649 Bearings - 2K Axles w/ 1-1/16 Inch Spindle
Trailer Parts Pro H34822BX-116 Boxed Pregreased Hub Assembly - 4 on 4 - L44649 Bearings - 2K Axles w/ 1-1/16 Inch Spindle
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

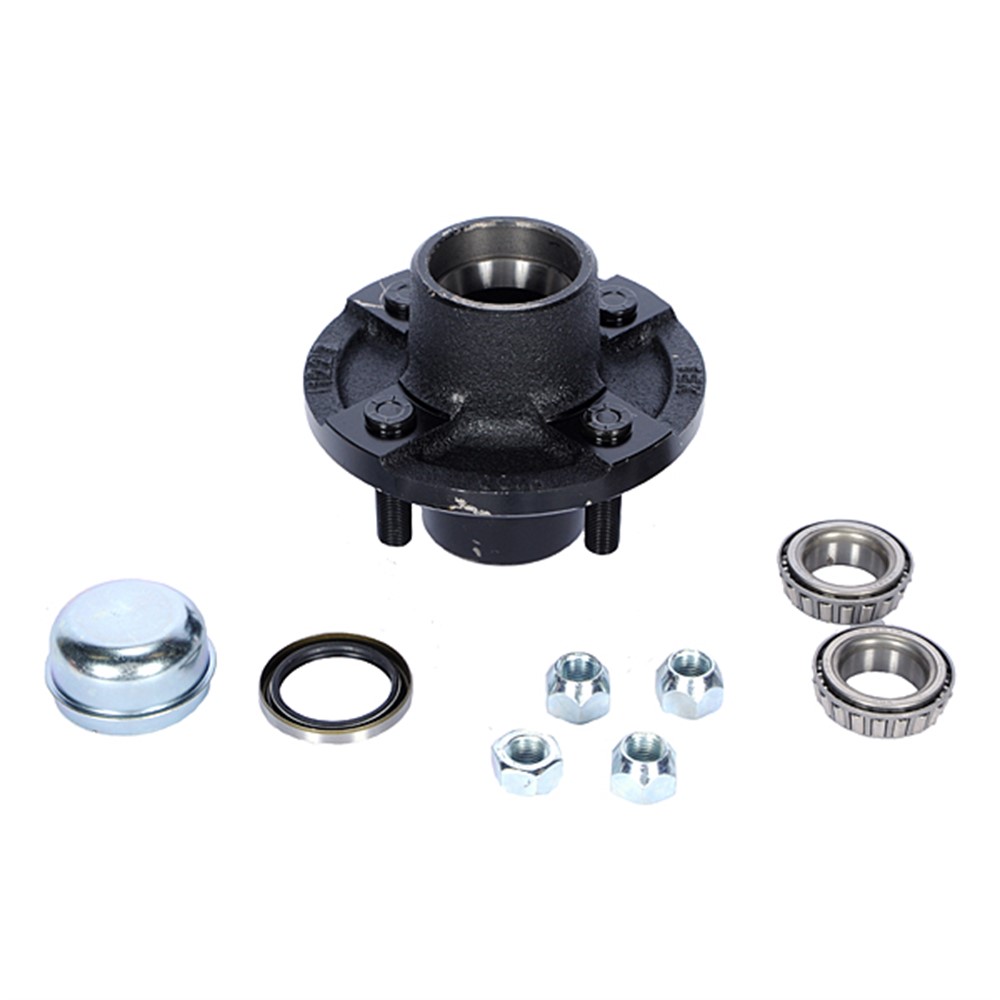

This is a ready to install Idler H34822BX-116 Boxed Hub Assembly - 4 on 4 - L44649 Bearings - Fits 2K Axles with BTR 1-1/16 Inch Spindle
Trailer Parts Pro hub kits come with some of your main components like the inner and outer bearings. With this kits there is no need to worry about the races as they are already pressed into the hub for you. You will also get the grease seal, grease cap, and wheel nuts for the hub. This hub is designed for use with a 1-1/16" diameter spindle. Each hub has a capacity of 1,250 lbs. Spindle nut and spindle washer sold separately.
The kit comes with labor-saving Pre-Greased and Pre-Installed Bearings, Races, Seal, as well as Standard and Grease-Lube Dust caps and wheel nuts.
Reference#: 105835
Items in Kit
• 2x L44649 Inner and Outer Bearings (1.063" ID)
• 2x L44610 Inner and Outer Races(Already Pressed In) 1.98" OD
• 1x 10-60 Grease Seal (1.5" x 1.987")
• 1x 46749 Grease Cap (1.986" OD)
• 1x 21-41-1 Grease Cap (1.986" OD)
• 1x 85-14 Grease Cap Plug
• 4x X1023R Coned Wheel Nuts
• 1x 4 on 4" Pregreased Hub For Convenience
• 1,250lb Capacity Per Hub
To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
