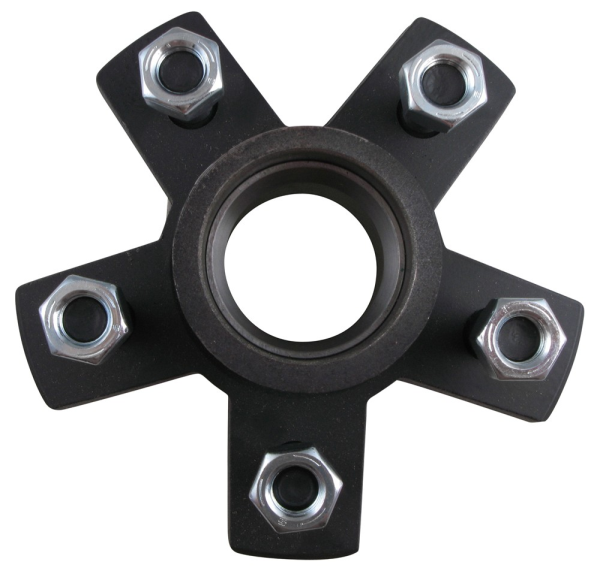

Dexter 84545UC1 Complete Painted Hub Assembly - 5 on 4.5 - L68149/L44649 - For 3500 Lbs Axles with #84 Spindle
Dexter hub kits come with some of your main components like the inner and outer bearings. There is no need to worry about the races as they are already pressed into the hub for you. You will also get the grease seal, grease cap, and wheel nuts for the hub. This hub is designed for use with a #84 spindle. Each Hub has a 1,750lb capacity. Spindle nut and spindle washer sold separately.
Product Specifications
- Application: most 3,500-lb axles with #84 spindle, including Dexter
- Bolt Pattern: 5 on 4-1/2
- Includes bearings, races, seal, grease cap, wheel bolts and lug nuts
- Bearings:
- Inner bearing: L68149
- Outer bearing: L44649
- Grease cap: 1.986" outer diameter
- Capacity: 1,750 lbs

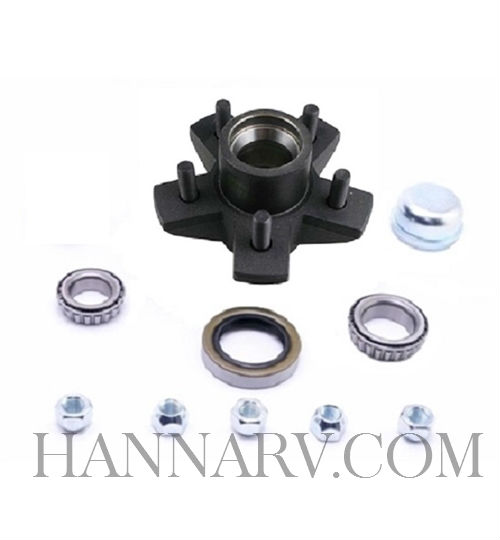

Items in Kit
• 1x L68149 Inner Bearing (1.378" ID)
• 1x L44649 Outer Bearing (1.063" ID)
• 1x L44610 Outer Race (Already Pressed In) 1.98" OD
• 1x L68111 Inner Race (Already Pressed In) 2.361" OD
• 1x 10-19 Grease Seal (1.719" x 2.565")
• 1x 46749 Grease Cap (1.986" OD)
• 5x X1023R Coned Wheel Nuts
• 1x 5 on 4.5" Hub
• 1,750lb Capacity Per Hub
To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
