Dexter 42655UC1-EZ Complete E-Z Lube Hub Assembly - 25580/15123 - For 6000 Lbs Axles - 2.25 Inch Inner Seal
Dexter 42655UC1-EZ Complete E-Z Lube Hub Assembly - 25580/15123 - For 6000 Lbs Axles - 2.25 Inch Inner Seal
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Dexter 42655UC1-EZ Complete E-Z Lube Hub Assembly - 25580/15123 - For 6000 Lbs Axles with #42 spindles - 2.25 Inch Inner Seal
Hub is designed for use on trailer idler axles. Fits 6,000-lb axles with #42 spindles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, grease cap, wheel bolts, and lug nuts included. Each hub has a capacity of 3,000lbs. Spindle nut and spindle washer sold separately.
Product Features
- Trailer hub assembly fits idler axles
- Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included
- Sturdy iron construction
Product Specifications
- Application: 6,000-lb trailer axles with #42 spindles
- Wheel size: 16" to 18-1/2"
- Bolt pattern: 6 on 5-1/2"
- Grease cap flange diameter: 2.44"
- Wheel bolt diameter: 1/2"
- Weight capacity: 3,000 lbs per hub
Bearing, Race, & Seal Information
- Bearings (included)
- Inner bearing: 25580 (1.75" inner diameter)
- Outer bearing: 15123 (1.25" inner diameter)
- Races (included)
- Inner race: 25520
- Outer race: 15245
- Grease seal (included): 10-36
- Inner diameter: 2.25"
- Outer diameter: 3.376"

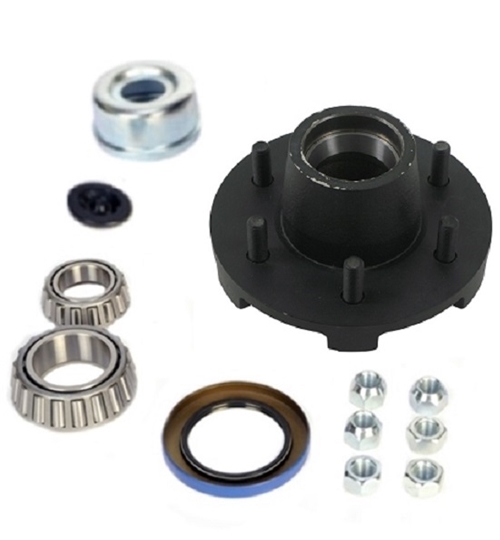

Items in Kit
• 1x 25580 Inner Bearing (1.75" ID)
• 1x 15123 Outer Bearing (1.25" ID)
• 1x 25520 Outer Race (Already Pressed In) 3.265" OD
• 1x 15245 Inner Race (Already Pressed In) 2.441" OD
• 1x 10-36 Grease Seal (2.25" x 3.376")
• 1x 21-42-1 Grease Cap (2.44" OD)
• 1x 85-1 Grease Plug
• 6x X1023R Coned Wheel Nuts
• 1x 6 on 5.5" Hub
• 3,000lb Capacity Per Hub
To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.
Dexter Trailer Hubs and Drums - 42655UC1-EZ
- 6 on 5-1/2 Inch
- For 6000 lbs Axles
- Hub
- 16 Inch Wheel
- 16-1/2 Inch Wheel
- 17 Inch Wheel
- 17-1/2 Inch Wheel
- 18 Inch Wheel
- 18-1/2 Inch Wheel
- Standard
- 1/2 Inch Stud
- 15123
- 25580
- Dexter
- E-Z Lube
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
