Dexter 42865UC1-EZ Complete E-Z Lube Hub Assembly - 8 on 6.5 - 25580/14125A - For 5.2K-7K Lbs Axles with #42 spindle - 2.25 Inch Inner Seal

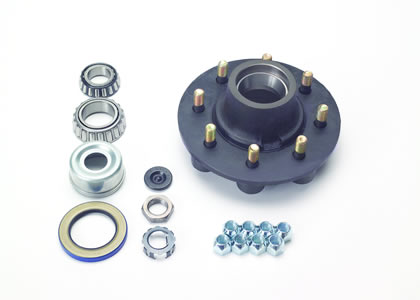

Trailer hub includes lug nuts, inner bearing (25580) and race, outer bearing (14125A) and race, grease cap and grease seal. Fits 5,200-lb to 7,000-lb axles with the #42 spindle that requires a 2-1/4" ID grease seal. Each hub has a capacity of 3,500lbs. Spindle nut and spindle washer sold separately.
Product Features
- Application: 5,200-lb - 7,000-lb Dexter axles with spindles that require a 2-1/4" ID grease seal
- Bolt Pattern: 8 on 6-1/2"
- Wheel size: 16" to 17-1/2"
- Includes bearings, races, seal, grease cap, wheel bolts and lug nuts
- Stud diameter: 1/2"
- Bearings:
- Inner bearing: 25580
- Outer bearing: 14125A
- Grease seal: 2.25" inner diameter
- Grease cap: 2.72" outer diameter
- Capacity: 3,500 lbs per hub
Items in Kit
• 1 25580 Inner Bearing (1.75" ID)
• 1 14125A Outer Bearing (1.25" ID)
• 1 25520 Outer Race (Already Pressed In) 3.265" OD
• 1 14276 Inner Race (Already Pressed In) 2.717" OD
• 1 10-36 Grease Seal (2.25" x 3.376")
• 1 21-43-1 EZ Lube Grease Cap (2.72" OD)
• 1 85-1 EZ Lube Grease Cap Plug
• 8 X1023R Coned Wheel Nuts
• 1 8 on 6.5" Hub
• 3,500lb Capacity Per Hub
To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.
Dexter Trailer Hubs and Drums - 42865UC1-EZ
- 8 on 6-1/2 Inch
- E-Z Lube
- For 5200 lbs Axles
- For 6000 lbs Axles
- For 7000 lbs Axles
- Hub
- 16 Inch Wheel
- 16-1/2 Inch Wheel
- 17 Inch Wheel
- 17-1/2 Inch Wheel
- Standard
- 1/2 Inch Stud
- 14125A
- 25580
- Dexter
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
