Single Axle Hanger Kit - APS4 - Boxed 1.75 Inch Double Eye Spring Hanger Kit - Front Hanger 3-1/4 Inch Tall - Steel Bushing
Kit includes 3-1/4" tall front hangers, 1-1/2" tall rear hangers, 3-1/8" shackle straps and hardware for mounting springs to your 2,000-lb to 7,000-lb, single-axle trailer frame. Components for mounting axle to springs sold separately.
Product Specifications
- Attaches 2 leaf springs (sold separately) to your trailer frame
- Use table below to determine hanger location based on type of leaf springs
- Achieves 5" or 5-1/2" clearance between trailer frame and axle, depending on axle size

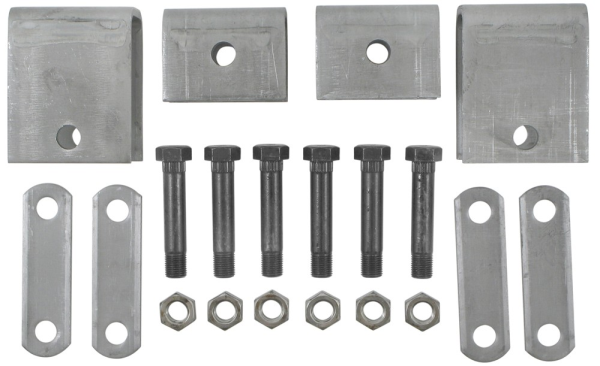

- Includes:
- (2) 3-1/4" Tall front hangers (28-5)
- (2) 1-1/2" Tall rear hangers without bushings (93003-3X)
- (4) 3-1/8" Long shackle straps (115208)
- (6) 3" Long x 9/16" diameter shackle bolts (9163B)
- (6) 9/16" Diameter locknuts (916DLN)
- Designed for use on trailers with single, 2,000-lb to 7,000-lb axles
- Does not include components for mounting axle to springs
| Leaf Springs |
A - Distance Between Hangers |
B - Distance Between Center of Axle and Trailer Frame | Axle Diameter |
|---|---|---|---|
| 1020 | 20" | 5-1/2" | 1-3/4" (typical 2,000-lb trailer axle) |
| PR722, PR3, PR4, PR4B, PR5, PR6 | 25-3/4" | 5" | 2-3/8" (typical 3,500-lb trailer axle) |
