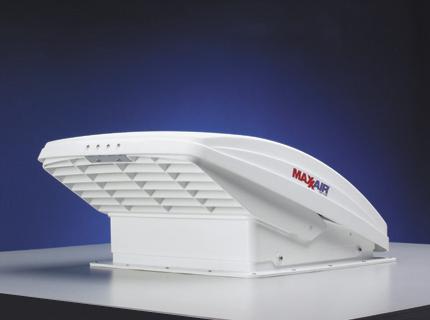

Maxx Fan - 00-05100K - Deluxe 14 Inch x 14 Inch Trailer Air Vent and 12 Volt Fan with White Rain Cover

 Installation Instructions PDF  | Alternate Installation Instructions PDF

Features

• Roof vent with fan and thermostat moves air in and out of your RV, camper, or enclosed trailer
  • Vent allows air to circulate while your RV remains locked and secure
• Integrated rain shield prevents rainwater from entering your RV or trailer
  • Allows you to open the vent and operate the fan in any weather
  • Eliminates the need to install a separate vent cover
• 12V DC, variable-speed fan has 2 modes of operation
  • In manual mode, 10 speed options let you increase or reduce airflow
  • In auto mode, fan turns on and off based on preset temperature of thermostat
• Reversible fan can either bring air in or exhaust air out
  • Circulates air like a ceiling fan when the vent is closed
• Flush-mounted keypad on vent lets you to set the thermostat and the fan speed and direction
• White dome (or lid) is made of high-density polyethylene
  • Seamless, low-profile appearance when closed
• Manual lift design has 2 arms to support the dome and keep it open
  • Manual knob lets you operate dome
• Bug screen keeps insects out and is easy to remove for cleaning or maintenance
• Fuse-protected, ball bearing motor is sealed to keep out dust, dirt, and moisture
• Rubber weather seal helps prevent leaks when vent is closed
• Mounting flange is constructed of UV-resistant ABS plastic
  • Smooth edges won't cut you during installation
• White interior trim piece (or garnish), insulated electrical connectors, and hardware are included for installation
  • Roof sealant sold separately
• 2-Wire design
  • Black wire is power
  • White wire is ground

Specs

• Fits: roofs 1-1/8" to 6-1/2" thick
  • Opening size: 14" wide x 14" long
• Overall dimensions: 22-1/2" long x 16-1/2" wide x 5" tall
  • Mounting flange dimensions: 16-1/2" long x 16-1/2" wide
  • Garnish dimensions: 16-3/8" long x 16-3/8" wide x 5-7/8" deep
• Vent extends above roof:
  • When closed: 5"
  • When open: 9-5/16"
• Overall fan diameter: 12"
• Fan capacity: 900 CFM
• Quantity of fan blades: 10
• Power draw: 5 amps
• Warranty:
  • 2-Year limited on vent assembly
  • Limited lifetime on dome

Note: Not for use above tubs, showers, or range cooking surfaces.

Built-In Rain Shield

The MaxxFan Deluxe has a built-in rain shield that, along with the dome, surrounds and encloses the vent opening. The shield blocks rainwater and other precipitation from entering through the vent and damaging the interior of your RV or trailer. This means you can run the fan during any weather without having to worry about the consequences. With the rain shield, there is also no need to install a separate vent cover.

The white dome on the rain shield is constructed of durable high-density polypropylene. When it's closed, the dome provides a seamless, low-profile appearance.

Reversible, Variable-Speed Fan with Thermostat

The 12-volt, variable-speed fan has 2 modes of operation: manual and auto. When the fan is in manual mode, you can choose from 10 different speeds to increase or reduce the airflow as needed. Auto mode works in conjunction with the fan's thermostat.

To enter auto mode, press the auto mode button on the keypad. Once the fan is in auto mode, the thermostat is activated with a set temperature of 78 degrees F. Pressing the arrow keys on the keypad changes the set temperature in 1 degree increments. When the thermostat is set, it senses the room temperature and automatically turns the fan on if it is above the set temperature. The fan shuts off when the set temperature has been reached. If the room temperature rises, the fan turns on again. This keeps your RV cool and comfortable and saves you from having to adjust the fan by hand. The auto mode also saves energy by running the fan no more than necessary, especially while you're away or asleep.

This fan is reversible, which means you are able to both exhaust stale air out of your RV and bring fresh air in from the outside. To enter ceiling fan mode, close the vent while the fan is still running. The fan then circulates the air inside your RV like a ceiling fan.

The fan has a fuse-protected, ball bearing motor that is sealed to keep out dust, dirt, and moisture.

Flush-Mounted Keypad

The flush-mounted keypad on the vent enables you to control the fan speed, the direction of the airflow, and the set temperature for the thermostat.

Manual-Lift Dome with Twin Arms

The dome on this roof vent is constructed of durable high-density polyethylene, and it is translucent so that some natural light can shine through. When it's closed, the dome provides a seamless, low-profile appearance that blends into the roof of your RV.

Unlike a dome that has only 1 arm, this manual-lift dome is supported by 2 sturdy arms so that it will not flutter during high winds or while you are driving.

And a manual hand knob is built into the underside of the vent to allow you to open and close the dome. Pull the knob outward, turn it to where you want it, and push it in to lock the dome into place.

Removable Bug Screen

This vent has a bug screen that helps keep insects and debris out of your RV. It is secured to the vent with 4 built-in retainer clips. These clips make it easy to remove the screen for cleaning or maintenance. Just rotate the clips, and the screen will pop out.

Installation

The MaxxFan Deluxe vent fits standard 14" x 14" openings in the roof of an RV, camper, or enclosed trailer. A white interior trim piece (or garnish), insulated electrical connectors, and hardware are included for installation. The included mounting flange is lined with a rubber weather seal, which helps prevent leaks. Roof sealant (sold separately) is required for installation.

To install, first secure the mounting flange to the roof. Then connect the two wires on the vent to your RV's electrical system. The black wire is for power, and the white wire is for ground. Next insert the vent into the flange and fasten it down using the metal mounting points on the flange. To finish, trim the garnish as needed to fit the thickness of your roof and install it.

MAXXAIR RV Vents and Fans - MA00-05100K

00-05100K MaxxAir Max Fan Deluxe RV and Trailer Roof Vent w/ Rain Cover - White Dome

Replaces MA05100K
