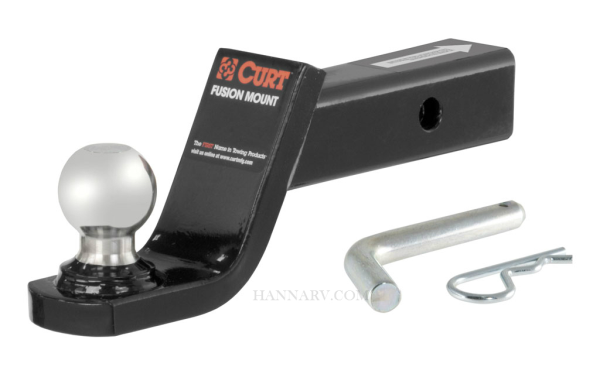

CURT 45154 Fusion Ball Mount - Drop 4 Inches - Length 8-1/8 Inches - Ball Diameter 2 Inches - GTW 7500 Lbs - TW 750 Lbs

Arm yourself with confidence with a CURT Fusion ball mount. Much like our loaded ball mounts, CURT Fusion mounts come with a trailer ball pre-attached to the mounting platform to provide a ready-to-tow solution right out the package. Unlike a loaded ball mount, however, a Fusion ball mount features a trailer ball that is permanently fixed to the shank structure, making it stronger than a traditional non-welded ball mount. With their fixed tow ball, Fusion ball mounts are also very similar to our Euro Mount ball mounts. Besides increased strength, one advantage of a permanently attached trailer ball is that it can never be loosened or stolen from your vehicle. CURT Fusion ball mounts come with 2 inch x 2 inch shanks and include a pin and clip with each unit.

This particular Fusion mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight rating of 750 lbs. It measures 8 1/8 inches long, has 4 inches of drop and comes with a 2 inch diameter trailer ball. CURT Fusion ball mounts are great for towing most standard size trailers, including utility trailers, livestock trailers, boat trailers and campers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Each unit is robotically welded to ensure accurate, consistent cuts and clean, strong weld lines. Once welded, these ball mounts undergo a cleaning process that creates a flawless surface for the application of our highly durable gloss black powder coat finish for long-lasting resistance to corrosion and chipping.


Product Specifications:

Gross Trailer Weight: 7,500 LB
Tongue Weight(TW): 750 LB
Length: 8 1/8 Inches
Drop: 4 Inches
Receiver Tube Size: Fits 2 Inches
Ball Diameter: 2 Inches
Finish: Gloss Black Powder Coat

Includes pin & clip



Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
