Shorelander TA0271-03 24 Inch Roller Load Guides For 2X4 Frame - Quick Detach Soft Tube Style
Shorelander TA0271-03 24 Inch Roller Load Guides For 2X4 Frame - Quick Detach Soft Tube Style
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

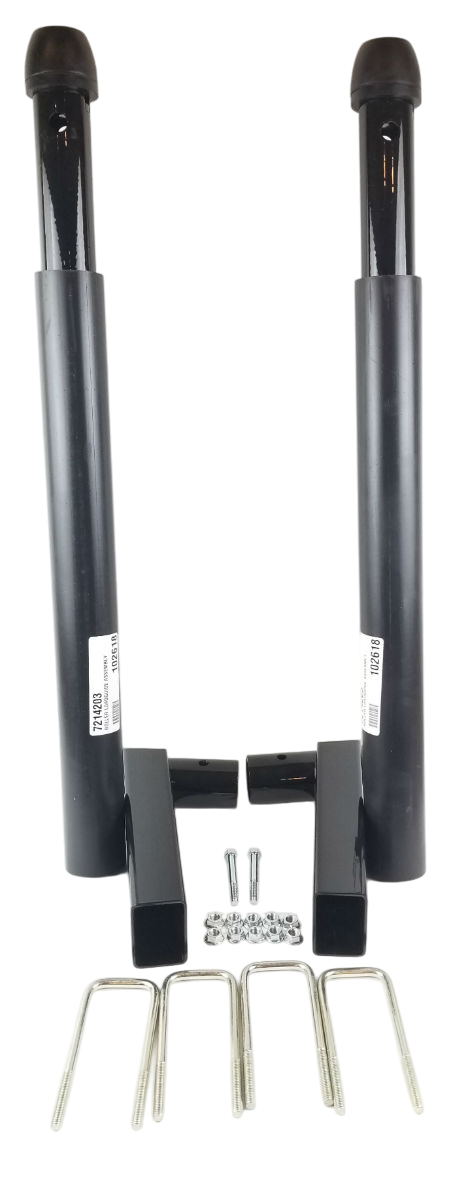

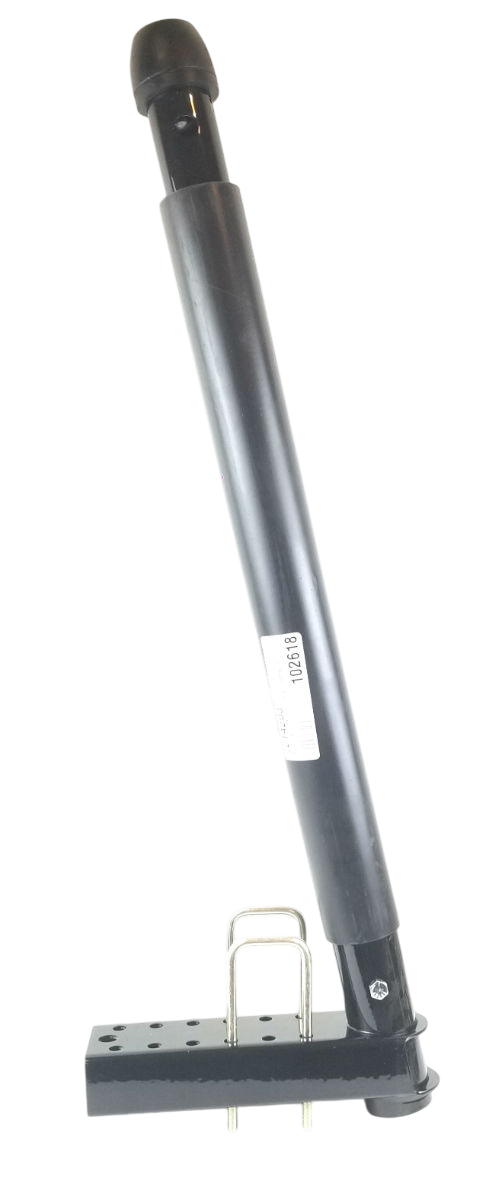

These 24 Inch Roller Load Guides are made for Shorelander trailers with 2X4 frames.
Installation Instructions:
- Open hardware box and bag and sort parts.
- The recommended mounting of the loadguide is to the bottom side of the frame. Place square u-bolts over the side frame and through the holes in the adjustable roller loadguide weldment at the width desired and secure with flange locknuts. Do not tighten at this time.
- Slide the roller load guide assembly into the adjustable roller loadguide weldment. Insert the hex bolt through the hole in the tube and the corresponding hole in the load guide, and out the hole in the tube. Secure with the flange locknut. Do not tighten at this time.
- Repeat on the other side of the trailer.
- When complete, tighten all hardware.
A message directly from Shoreland’r:
Having a problem? Needing technical assistance? Missing Parts?
Don’t contact the store!
Contact our technical service department.
Call: (800) 859-3028 8 AM to 5 PM CST
E-Mail: https://www.shorelandr.com/contact-us/
Here at Hanna Trailer Supply, we are unable to look up parts diagrams for many older Shoreland’r trailers. Shoreland’r has access to much more information on parts and accessories than we have here.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
