Shorelander TA0010 Bow Pad Support for Fishing Series Trailers
Shorelander TA0010 Bow Pad Support for Fishing Series Trailers
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
The Shorelander TA0010 Bow Pad Support for Fishing Series Trailers is used to add additional support to the keel of your boat in the area over the tongue. It is adjustable forward and backward as well as up and down. It can be raised to the proper height to support your boat.
It also serves as a broader area for your boat to rest on, especially a flat bottom boat when it is being loaded. Once loaded the boat can be shifted to the center line of the keel rollers for proper support. At that time the bow support pad acts as an additional support for the keel of the boat similar to a keel roller.
Installation Instructions:

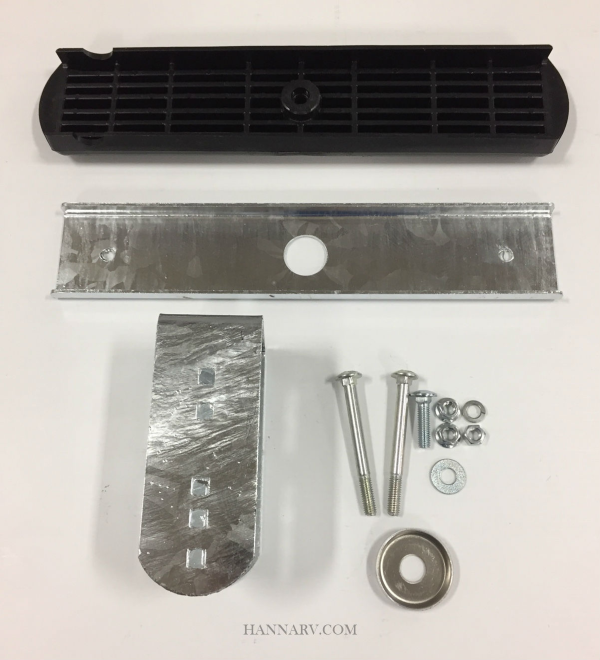

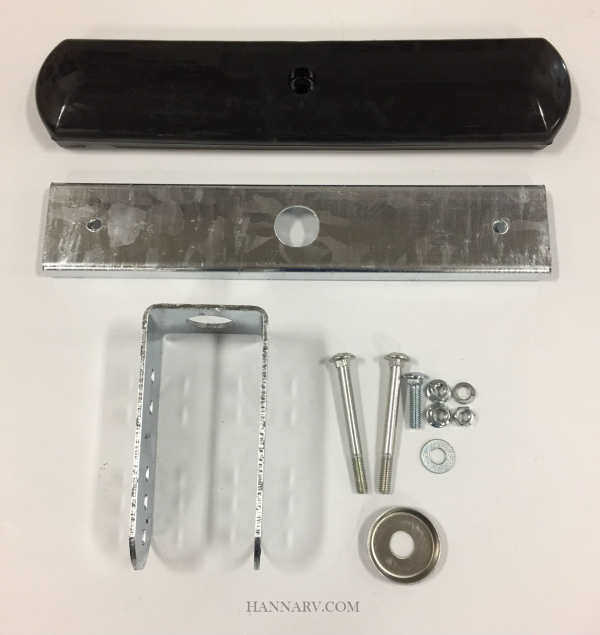

- Open the hardware box and sort all items by size.

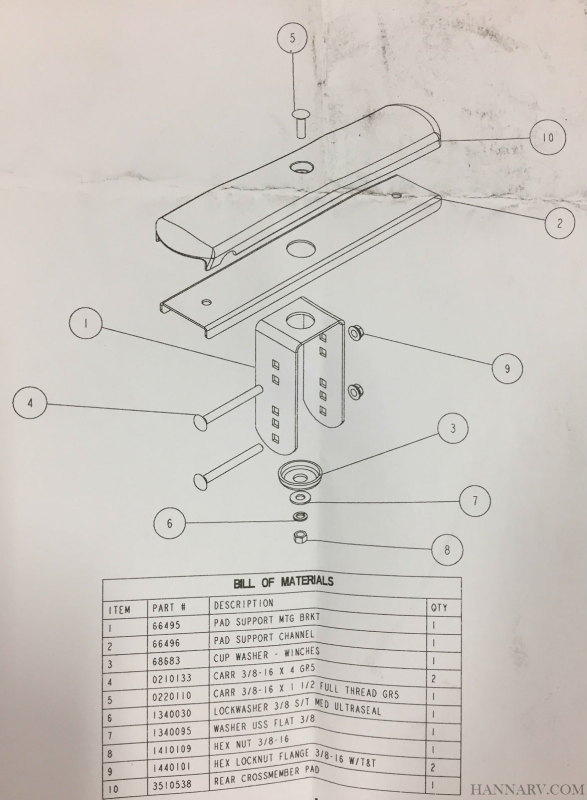

- Locate the rear cross member pad. Place it on the top of the formed pad support channel. Drop the pad into the support channel so that the center plastic ring of the pad fits in the hole of the channel. Place the seembly onto the support mounting bracket as shown. Attach the pieces together with a 3/8" x 1-1/2" carriage bolt down from the top. Secure to the support mounting bracket by first installing a cup washer then a flat washer. Place on a 3/8" lock washer and hex nut. Tighten.
- The assembly is attached to the tongue with two 3/8" x 4" carriage bolts, one on each the top and bottom side of the tongue. They are secured in place with 3/8" flange lock nuts (provided).
- Note that the assembly is adjustable both up and down as well as being able to be slid forward and backward on the tongue. Adjust to its proper position. Secure in place by tightening the bolts just installed. Assembly is complete.
A message directly from Shoreland’r:
Having a problem? Needing technical assistance? Missing Parts?
Don’t contact the store!
Contact our technical service department.
Call: (800) 859-3028 8 AM to 5 PM CST
E-Mail: https://www.shorelandr.com/contact-us/ Here at Hanna Trailer Supply, we are unable to look up parts diagrams for many older Shoreland’r trailers. Shoreland’r has access to much more information on parts and accessories than we have here.
