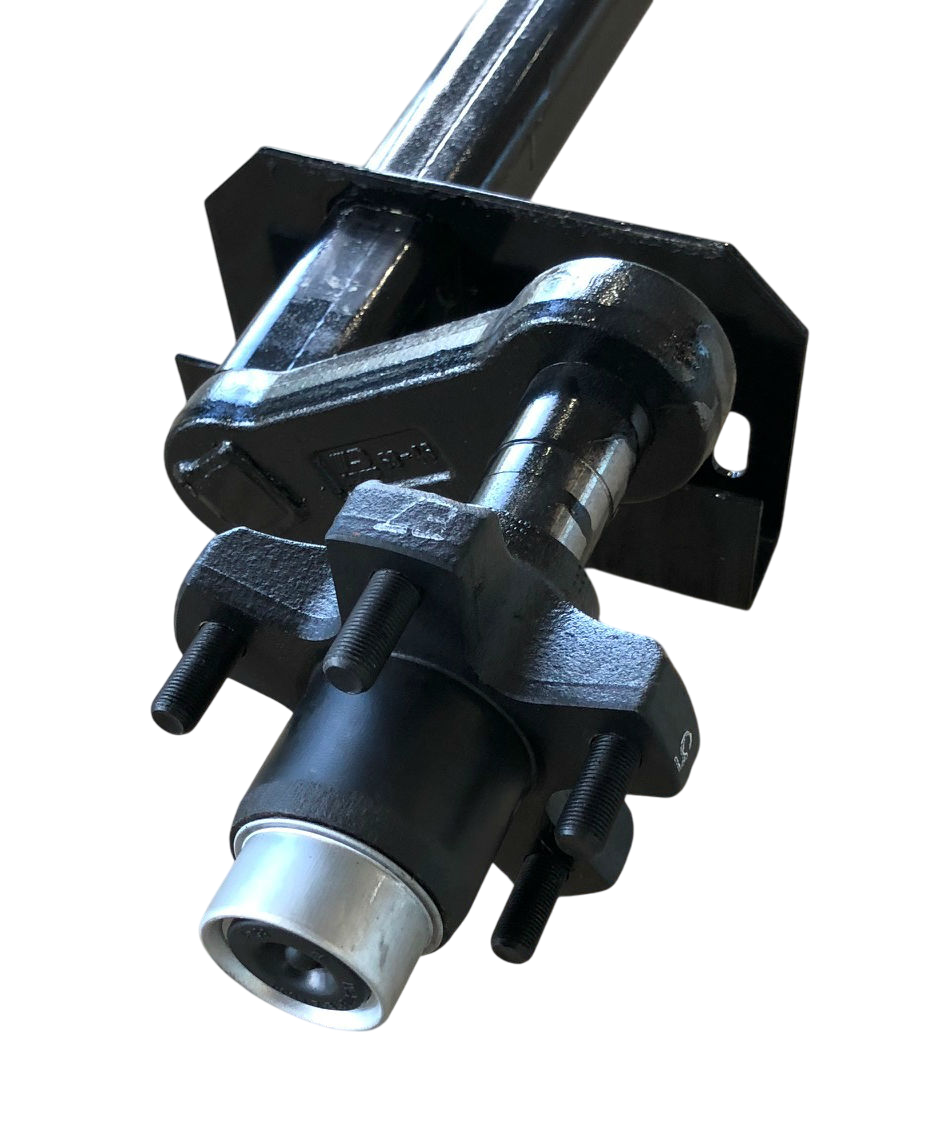

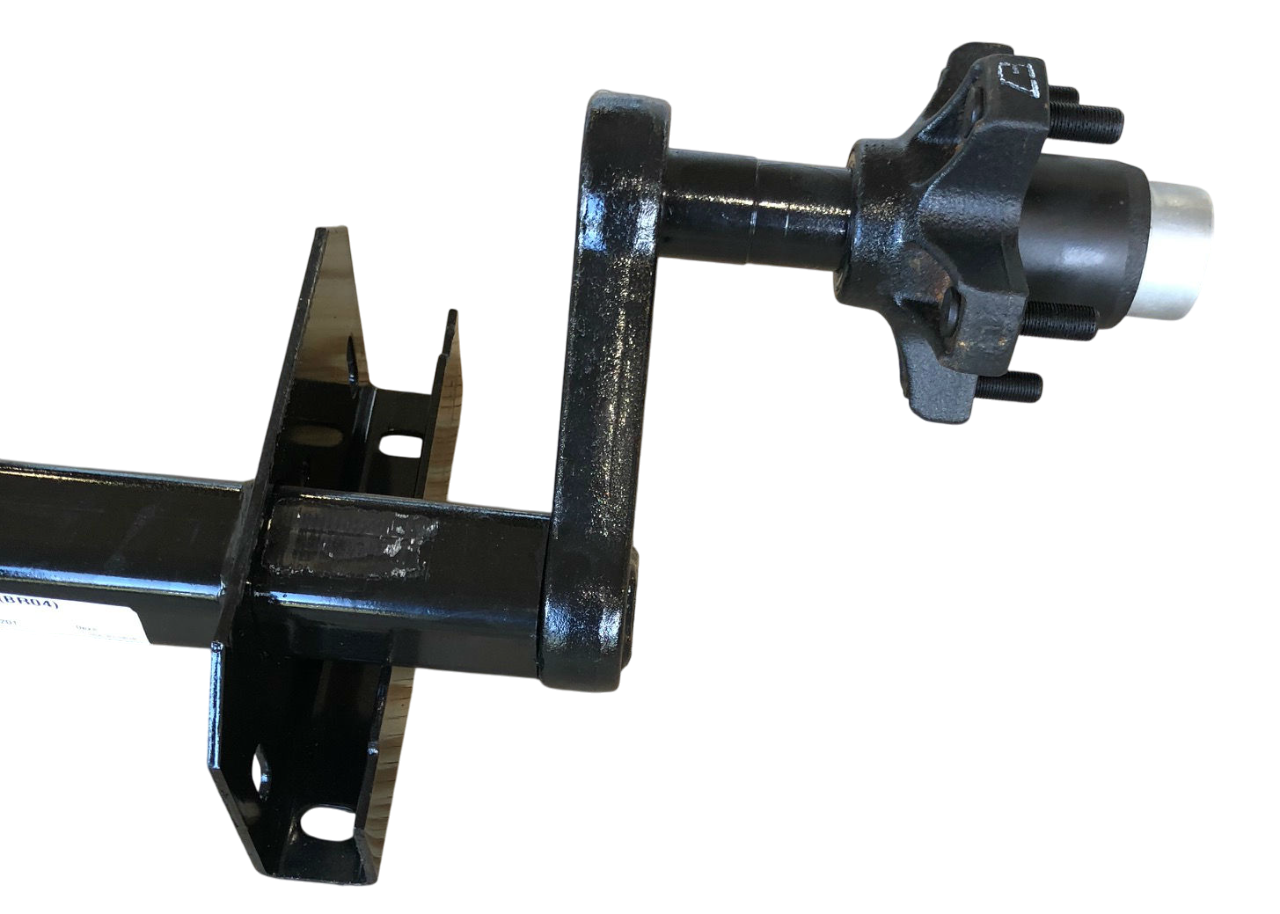

Triton 02360 2200 lb. Snowmobile Trailer Torsion Axle Bundle
Get everything you need with the Triton 02360 2200 lb. Snowmobile Trailer Torsion Axle Bundle. This complete package fits most Triton two-place, three-place, and four-place open snowmobile trailers, including Lite, LT, XT, and Elite models (excludes single-place XT4.5 and Elite 5). Designed for durability and easy installation, this bundle includes the 2200 lb. torsion axle, mounting hardware, gaskets, and chrome acorn lug nuts—perfect for your next trailer upgrade.
Important Upgrade Note: This axle includes a complimentary brake flange upgrade near the hub, allowing optional brake installation without affecting operation if brakes aren’t added.

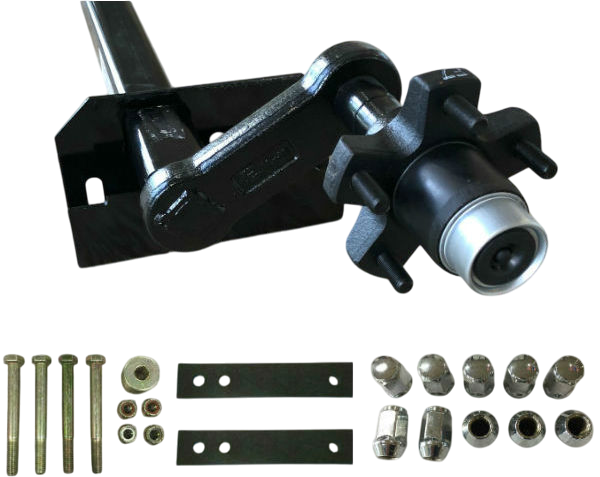

What’s in the Bundle?
Triton Axle Mounting Hardware Kit (02685-H):
- (4) 1/2-13 x 4-1/2" Zinc-Plated Bolts
- (4) 1/2-13 Zinc-Plated Hex Lock Nuts
- (8) 1/2" Zinc-Plated Flat Washers
- Note: 4.5" bolts fit most 10', 11', and 12' models (LT/XT/Elite), except some V-Front 12' models and tandem axle trailers (3- or 4-place), which may require longer bolts (5.5", 6", or 7"). Email cs@hannarv.com after ordering to request longer bolts if needed.
Triton 02604 Axle Mount Gaskets (x2): Essential spacers between steel axle brackets and your trailer’s aluminum frame.
Triton 07236 Chrome Acorn Lug Nuts (x10): Stylish 3/4" hexagonal lug nuts with a 1/2-20 thread pitch and chrome finish.
Looking for Corrosion Resistance?
Upgrade to a galvanized axle for ultimate rust protection:
Check out the Triton 02360-G 2200 lb. Galvanized Torsion Axle
Please Note:
Axles are non-returnable; all sales are final.
Product Specifications
Confirm compatibility with these key measurements:
- Hubface to Hubface: 71 inches
- Outside of Bracket to Outside of Bracket: 54 inches
- Center of Bracket to Center of Bracket: 52 inches
- Overall Length of Mounting Brackets: 10 inches
- Trailing Arm Articulation Angle: 32 degrees down
- Torque Specs - Lug Nuts: 90 ft/lbs
- Torque Specs - Mounting Bolts: 55 ft/lbs
Verify fitment using the diagram below:
Need Help Identifying Your Triton Trailer?
- Triton VIN Number Breakdown Chart
- Triton Customer Information Sheets – Find specs and replacement parts for your model.
Ask the Triton Expert
Q: "Where can I find detailed info about my Triton trailer?"
A: Check TritonTrailers.com Instruction Sheets for specs, part numbers, and more. Your original purchase should include an info packet—contact your dealer if you need one!
Why Choose This Bundle?
Simplify your upgrade with the Triton 02360 Bundle. Featuring a rugged 2200 lb. torsion axle and premium accessories like chrome lug nuts, it’s the complete solution for your Triton snowmobile trailer.
Order now and hit the trails with confidence!
