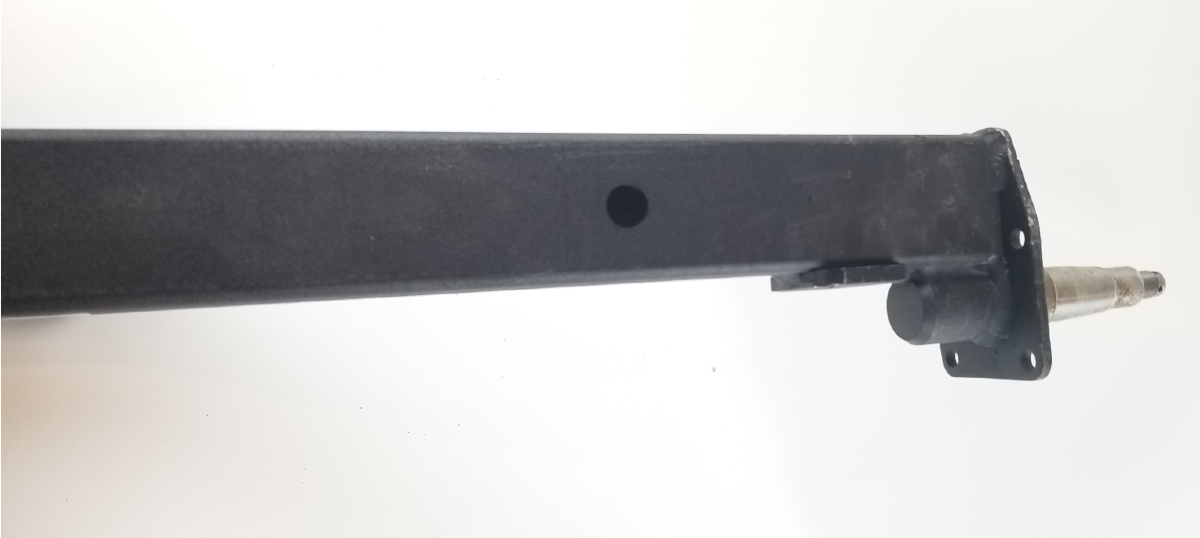

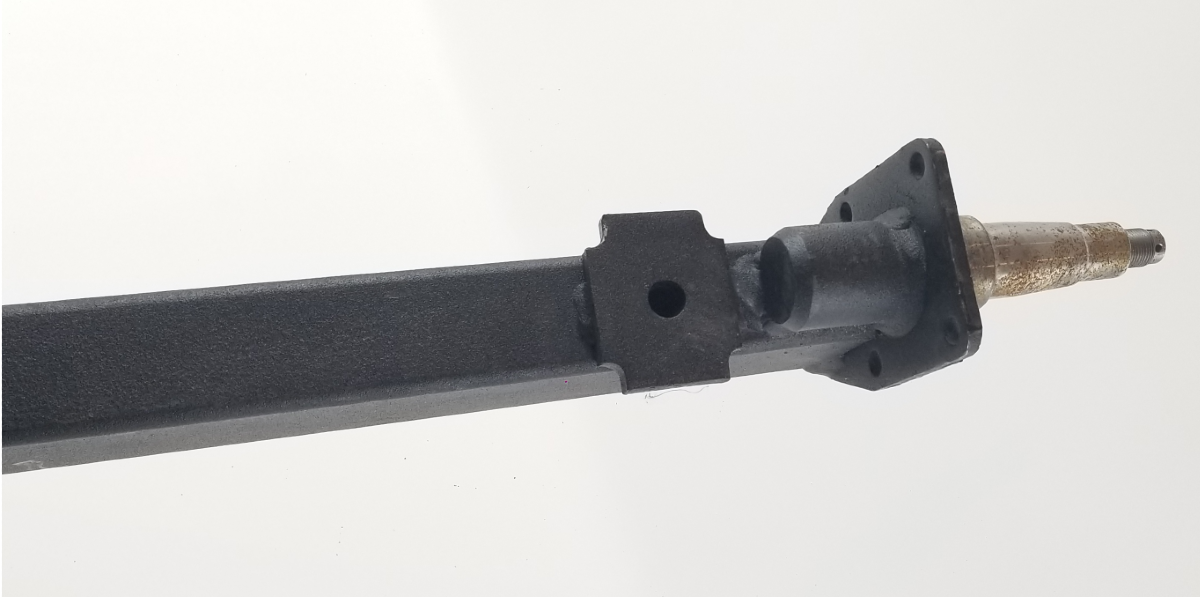

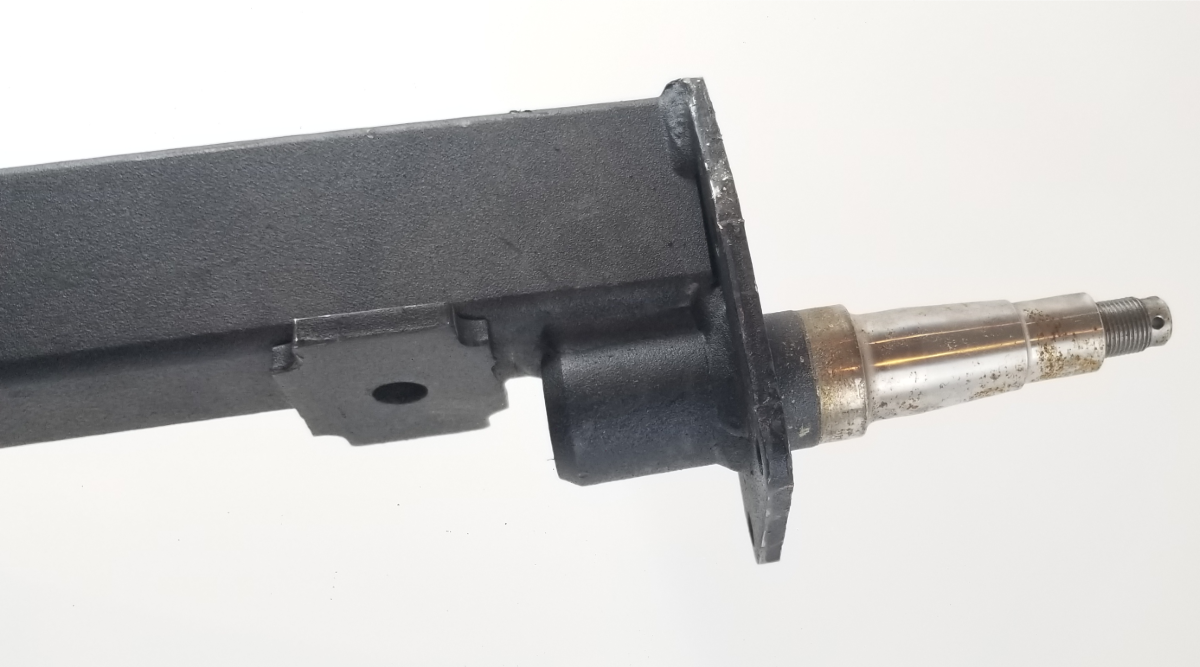

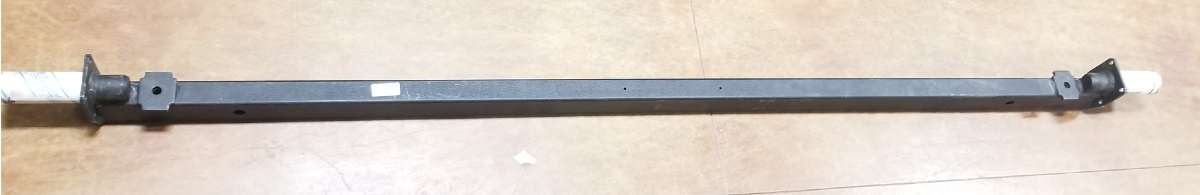

Shorelander 7150916 92 inch Weldment Drop Axle - Matte Black
Shorelander 7150916 92 inch Weldment Drop Axle - Matte Black
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
VideosThis listing is for Shoreland'r 7150916 92 inch Weldment Drop Axle - Matte Black. Called also 80" axle.
Axles Are Not Returnable And All Axle Sales Are Final.
Product Specifications
- Axle Type: 2" x 3" Square Drop.
- Load Rating: 3500 lbs. (10 ga.).
- Overall Length: 98" End of Spindle to End of Spindle.
- Spring Center: 78-1/2".
- Track Length: 92" Hub Face to Hub Face.
- Brake Flange (Outside): 87"
- Brake Flange Bolt Holes: 4
- Hub Type: 5 bolt (Not Included).
- Spindle Size: 1-3/8" x 1-1/16"
Please make sure to order the right part that you need and check measurements.
Click Here For The Shoreland'r Parts Lookup Page
The model number, year and VIN number of trailer are necessary. Shoreland'r VIN numbers all begin with "1MD" and end with a 6-digit serial number.
A message directly from Shoreland’r:
Having a problem? Needing technical assistance? Missing Parts?
Don’t contact the store!
Contact our technical service department.
Call: (800) 859-3028 8 AM to 5 PM CST
E-Mail: https://www.shorelandr.com/contact-us/
Here at Hanna Trailer Supply, we are unable to look up parts diagrams for many older Shoreland’r trailers. Shoreland’r has access to much more information on parts and accessories than we have here.
The Axle 7150916 Fits The Following ShoreLand'r Boat Trailer Models
| • ALB22LW • ALB2314SW • ALB30BLW • ALB30BSW • ALB30CBLW • ALB40TABBXW • ALB40TABXLW • ALB40TCBAXLW • ALB40TCBBXW • ALB40TCBBXW • ALR22LW • ALXR2314LW • ALXR2314SW • ALXR30BLW • ALXR30BSW • ALXR40TABBXW • ALXR40TABXLW • ALXR40TABXLW • BRB40TABLW • BRB40TABLW • BRB40TBLW • CAB30BLW • CAB40TABBLW • CAB55TBBL • CAB55TBBS • CAIB55TBBL • CHV2314SW • CHV30BLW • CHV30BSW |
• CPR22LW • CPR30BXLW • CPR40TBBXLW • CPR40TBXLW • CPR40TBXLW • CPR46TBBS • CRB30CBLWTLH • CRB30CBLWTMH • CRB30CBLWTSH • CRB40TCBXLW • CRB46TCBL • CRV30BLWTLH • CRV30BLWTMH • CRV30BLWTSH • CRV40TBXLW • CRV46TBL • CRV46TBL • CRXR30BLWTLH • CRXR30BLWTMH • CRXR30BLWTSH • CRXR40TBXLW • CRXR46TABL • CRXR46TBL • DUB40TABBLW • DUPT1720 • DUV2314LW • DUV31BLW • G3V31BSW-03 • G3V31BSW-39 • LAB50TBBS |
• LAB50TCBBS • LAV2314CLW • LAV2314LW • LAV30BLW • LAV30CBLW • LAV40TABBLW • LAV40TABBXLW • LAV40TCBBLW • LAV40TCBBXLW • LAV46TBB • LAV46TCBB • LAV46TCBBA • LAV55TBB • LAV55TCBB • LAV59TBBL • LAV59TCBBL • LAXR2314CLW • LAXR2314LW • LAXR30BLW • LAXR30CBLW • LAXR40TABBXW • LAXR40TCBBXW • LUB29CBLWTMH • LUB29CBLWTSH • LUB29CBSW • LUB40TABBXLW • LUB40TABXLW • LUB40TCBLWTMH • LUB40TCBXLW • LUB46TABS |
| LUB46TCBS • LUV2314LW • LUV2314SW • LUV30BLWTMH • LUV30BLWTSH • LUV30BSW • LUV40TBLWTMH • LUV40TBLWTSH • LUV40TBXLW • LUXR2314LW • LUXR2314SW • LUXR29CBLWMH • LUXR29CBLWSH • LUXR29CBSW • LUXR30BLWTMH • LUXR30BLWTSH • LUXR30BSW • LUXR40TBLWMH • LUXR40TBLWSH • LUXR40TBXLW • LUXR40TCBLWMH • LUXR40TCBXLW • LUXR46TABL • LUXR46TABS • LUXR46TCBS • NOB40TABBXLW • NOV30BSW • PT1420 • PT1720 |
• PWCD2213 • PWCD2410 • PWCD2413 • SEB40TABBLW • SEB50TBBS • SEB55TBBL • SLB22LW • SLB2313BLW • SLB2314LW • SLB2314SW • SLB30BAL • SLB30BLW • SLB30BSWERS • SLB30BSW • SLB30BXLW • SLB31BL • SLB40TABBLW • SLB40TABBXLW • SLB40TABLW • SLB40TABXLW • SLB40TBBLW • SLB40TBBXLW • SLB40TBLW • SLB40TBXLW • SLB40TCBBLW • SLB40TCBBXLW • SLB40TCBLW • SLB40TCBXLW • SLB46TB • SLB46TBB |
• SLB46TBBL • SLB46TBBS • SLB46TBL • SLB46TB • SLB46TBS • SLB50TCBL • SLB50TCBS • SLB55TCBBL • SLB55TCBBS • SLIB2E55TBBL • SLR22LW • SLR2314SW • SLR30BLW • SLR30BSW • SLR30BXLW • SLR31BLW • SLR31BSW • SLR40TBBLW • SLR40TBBXLW • SLR40TBLW • SLR40TBXLW • SLR40TCBBLW • SLR40TCBBXLW • SLR40TCBLW • SLR40TCBLW • SLR40TCBXLW • SLR46TBBL • SLR46TBBS |
| SLR46TBL • SLR46TB • SLR46TBS • SLR46TBS • SLR50TCBL • SLR50TCBS • SLR55TCBBL • SLR55TCBBS • SLRB2314LW • SLRB2314SW • SLRB24BLW • SLRB30BLW • SLRB30BSW • SLRB30BXLW • SLRB40TBBLW • SLRB40TBBXLW • SLRB40TBLW • SLRB40TBLW • SLRB40TBXLW • SLRB40TBXLW • SLRB40TCBBLW • SLRB40TCBBLW • SLRB40TCBBXLW • SLRB40TCBBXLW • SLRB40TCBLW • SLRB40TCBLW • SLRB40TCBXLW • SLRB46TB-AL • SLRB46TBBL • SLRB46TBBS • SLRB46TBL • SLRB46TBS • SLRB50TCBL • SLRB50TCBS • SLV22LW • SLV2314LW • SLV2314SW • SLV30BLW • SLV30BSW • SLXR2314LW |
• SLRB46TBL • SLXR2314SW • SLXR30BLW • SLXR30BSW • SLXR30BXLW • SLXR40TBBLW • SLXR40TBBXLW • SLXR40TBLW • SLXR40TBXLW • SLXR40TCBBLW • SLXR40TCBBXLW • SLXR40TCBLW • SLXR40TCBXLW • SMB2314CSW • SMB30CBLW • SMB40TCBXLW • SMB40TCBXW-SP • SMB46TCBL • SMPT1420 • SMR30CBLW • SRV42TB • SRV42TBB • SRV46TB • SRV46TBB • SRV46TCB • SRV46TCBA • SRV46TCBB • SRV46TCBBA • SRV50TB • SRV50TCB • SRV50TCBA • SRV59TBB • SRV59TCBB • SRV59TCBBA • TRV22AL • TRV22LW • TRV30BAL • TRV30BLW • TRV40TABBLA • TRV40TABBLW |
• TRV40TABBXLAL • TRV40TCBBXLW • TRV50TBBS • TRV50TBBSAL • WAB50TBBS • WAB50TCBBS • WAV40TABBXTSH • WAV40TCBBXTSH • YAV2314SW • YAV2413SW • YAV30BSW • YAV46TABBLW • YAV46TABLW • YAV46TCBBLW • YAV46TCBLW • YAV50TCBBLW • YAV50TCBLW • SLR22SW • SLR2314LW • SLR30BLW • SLR30BSW • SLR30BXLW • SLRB2314LW • SLRB2314SW • SLB20BLW • SLB20BW • SLB20LW • SLB20W • SLB23LW • SLB23LW • SLB24BLW • SLB24BLW • SLB31BLW • SLB31BS • SLB31BSW • SLR2314SW • SLR23LW • SLR23SW • SLRB23LW • SLRB23SW |

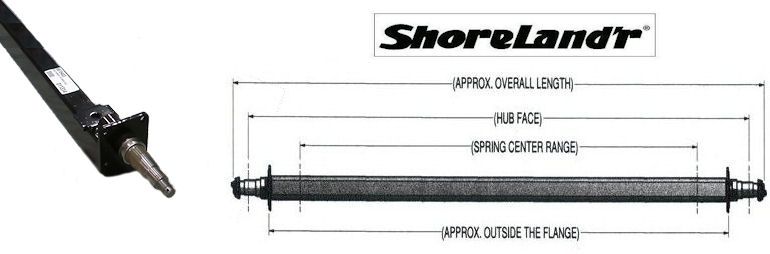

When selecting an axle for your application, remember to consider the following important specifications.
LOAD CAPACITY
- The load rating of the axle must support the maximum gross vehicle weight rating. For multiple axle trailers divide the GVW by the number of axles to determine the minimum load capacity of each axle.
TRACK LENGTH
- Measure your axle track length by determining the distance between the center of one tire to the center of the other tire. A more precise measurement can be made by measuring the distance from one 'HUB FACE' to the other. The hub face is also known as the mounting surface where the wheel studs are located.
SPRING CENTERS
- Measure the distance from the center of one spring to the center of the other. NOTE: not required for replacement torsion axles
OVERALL LENGTH
- Measure the distance from the very end of an axle's spindle to the very end of the opposite spindle.
AXLE STYLE
- Important when reusing old mounting hardware and also for proper tire clearance. Includes straight axles (round or square), drop axles with offset spindles, and torsion axles. Also consider spindle size when reusing existing hubs or drums.
