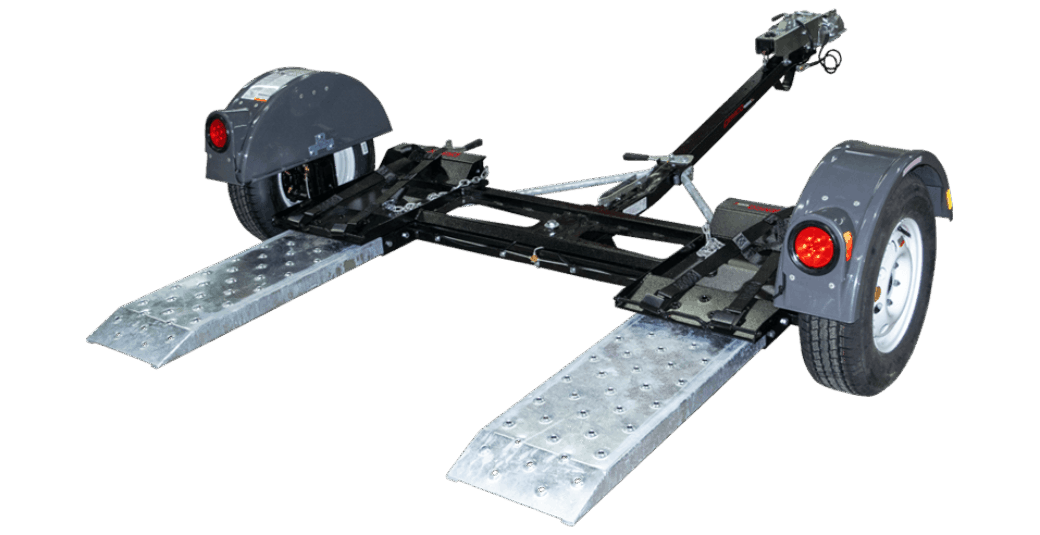

Demco 9713093 Kar Kaddy X Tow Dolly with Surge Brakes - 4800 Lb Vehicle Capacity
Demco 9713093 Kar Kaddy X Tow Dolly with Surge Brakes - 4800 Lb Vehicle Capacity
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
VideosNOTE: We do not stock this tow dolly, but we can typically get one here in one to two days from our supplier.
Please call for current pricing and availability.

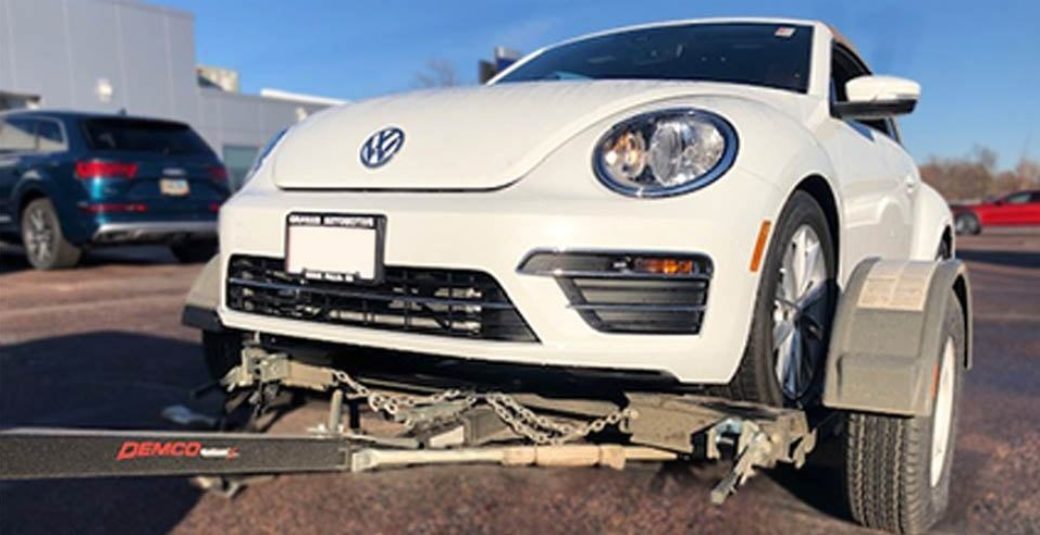

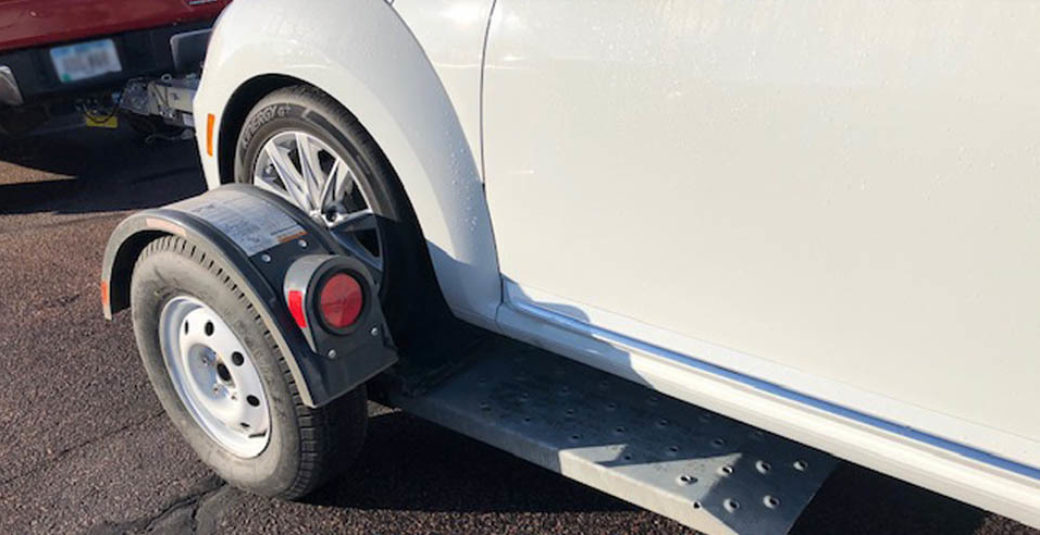

Do you wonder how you’re going to safely and smoothly tow a vehicle behind your RV that has a lower clearance? Do you cringe every time you hit a bump with your existing tow dolly? Demco Products has your solution with the KarKaddy X. Its load angle is reduced by 4 degrees and it’s wider so you can take that lower-riding, wider vehicle with you on your next trip.
Product Features:
Lower and Wider to Fit Low Profile, Wider Vehicles
- Designed for lower clearance
- Hydraulic surge brakes
- Towed vehicle tread width 42” minimum, 78” maximum
- Load angle reduced by 4º to fit more low profile vehicles
- 5th wheel design swivel platform
- Black powder coat paint finish with hot dipped galvanized components
- Sealed hubs
- Demco brake actuator and EZLatch Coupler
Product Specs:
Kar Kaddy X - 8 ½’ WIDE AUTO TRANSPORT WITH BRAKES
| Overall width | 102" |
| Overall length | 147" |
| Tires | ST205/75R14 load range (C) BSW radial tire |
| Wheels | 14" x 5.5" |
| Weight | 680 lbs. |
| Axle capacity | 3,500 lbs. |
| Towed vehicle tread width | Min. - 42", Max. - 78" |
| Maximum towed vehicle body width | 78" |
| EZLatch Coupler rating | 7,500 lbs. |
| Total towed vehicle weight | 4,800 lbs. |
| GVWR (unit weight plus max. carrying capacity) | 3,500 lbs. |
CAUTION: Read your motor vehicle owner’s manual to determine proper towing procedure. All vehicles to be towed on Demco Dollies must be towed with the front axle on the dolly. Some vehicles may be too wide in the body area to properly fit on an 8-1/2' wide dolly even though the front tire measurement is 78" or less. Always follow weight limitations when choosing a Demco Dolly. 8 1/2' wide tow dollies may be subject to width restrictions on roads in some states.
