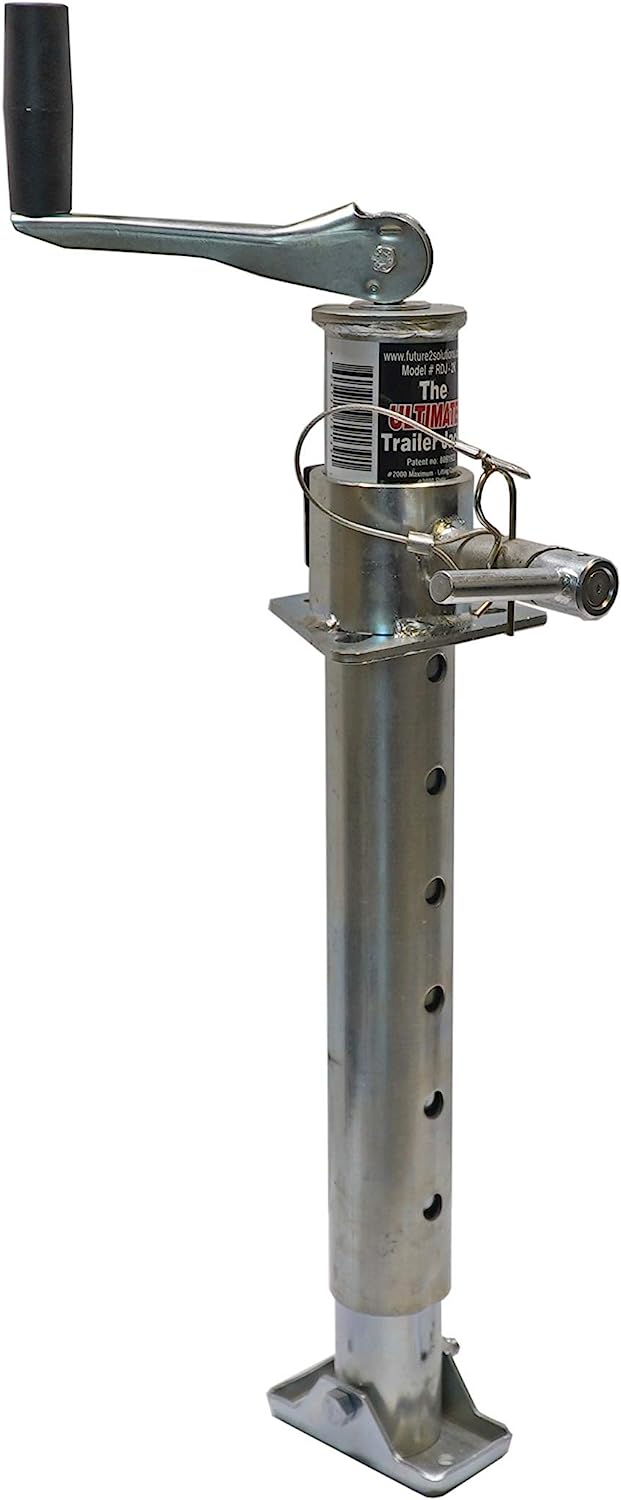

The Ultimate Trailer Jack RDJ-2K A-Frame, Topwind Jack - 2,000 Lb - 27-1/2" Lift

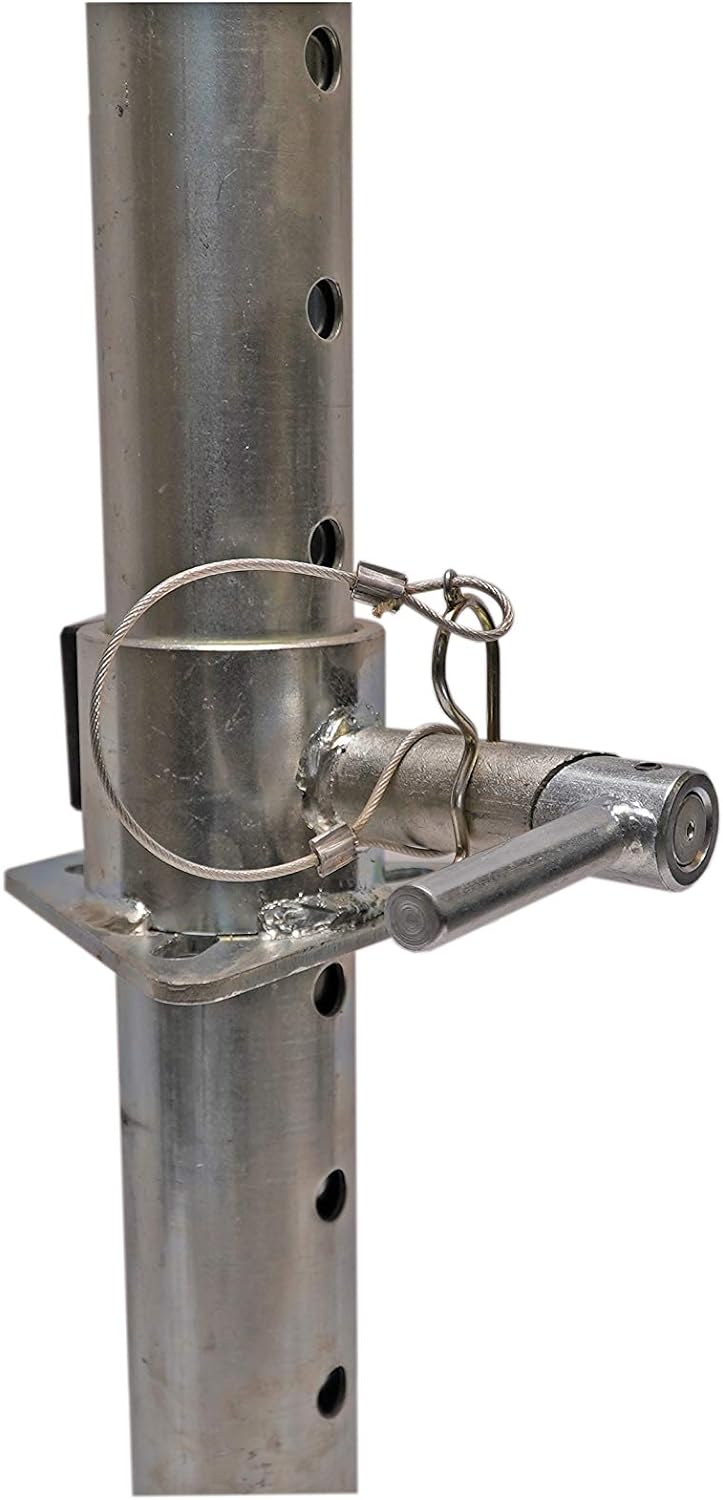

Just pull the easy-to-access pin on the Ultimate Trailer Jack to drop the entire jack tube down for quick, easy adjustment. No drop leg needed. Seven height settings offer up to 12" of drop. Topwind handle allows for an additional 15-1/2" of screw travel.

Ultimate Trailer Jack Features:

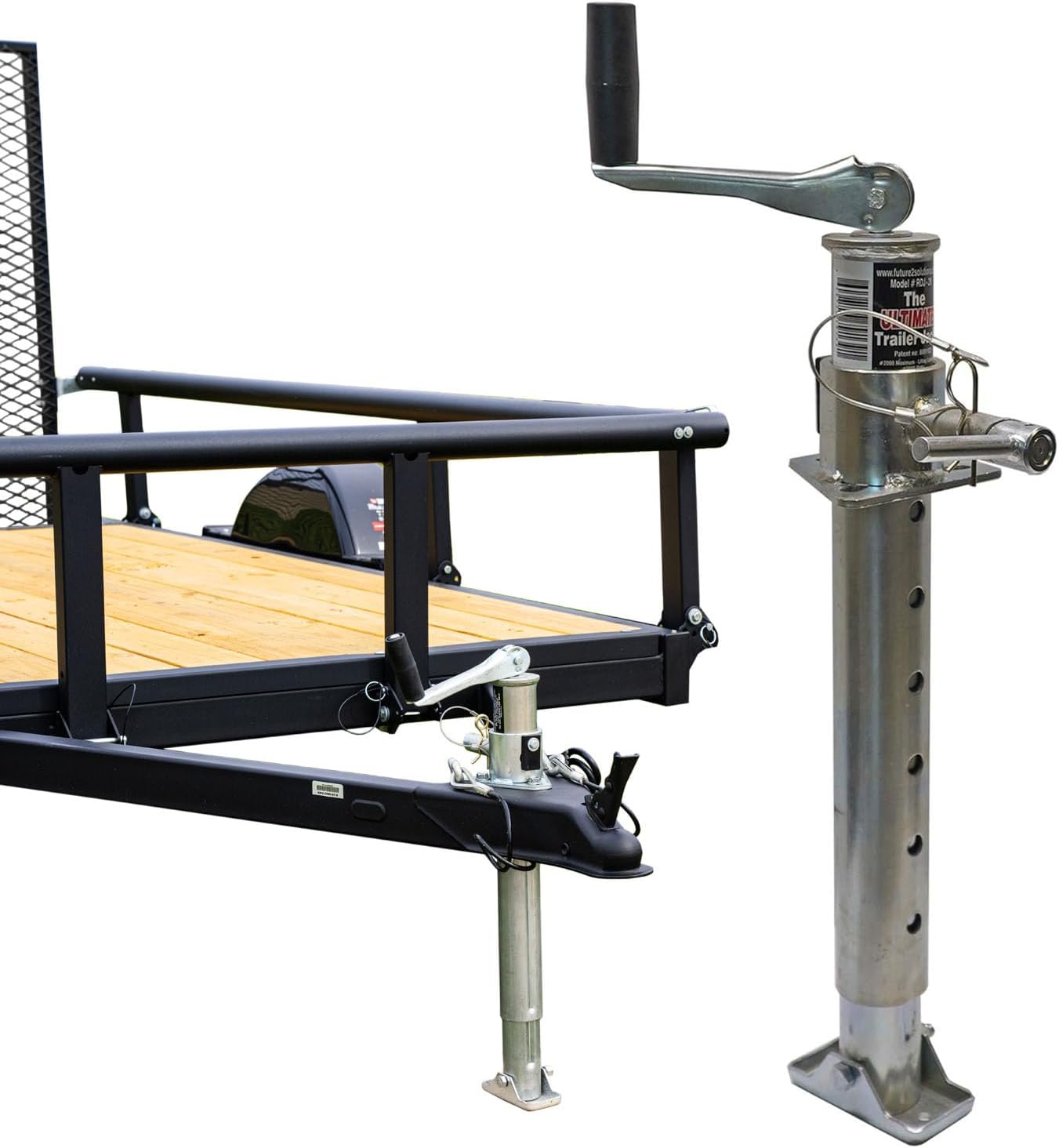

• Utility jack lets you raise and lower your A-frame trailer
• 7 Height settings allow for fast, easy positioning - no blocks or drop leg needed
  • Lower the jack from the mounting bracket to get up to 12" of lift
  • Manually crank the jack to achieve up to an additional 15-1/2" of travel
• Jack retracts to be flush with bottom of trailer frame
  • Eliminates risk of damaging hang-ups or snags while traveling
  • Can also be entirely removed from mount to provide clearance above frame for easy access to vehicle's rear hatch
• Low-friction ball screw minimizes resistance to reduce wear, noise, and heat
  • Ball bearings roll smoothly through threads of jack screw - no direct, friction-inducing contact
• Steel construction is durable

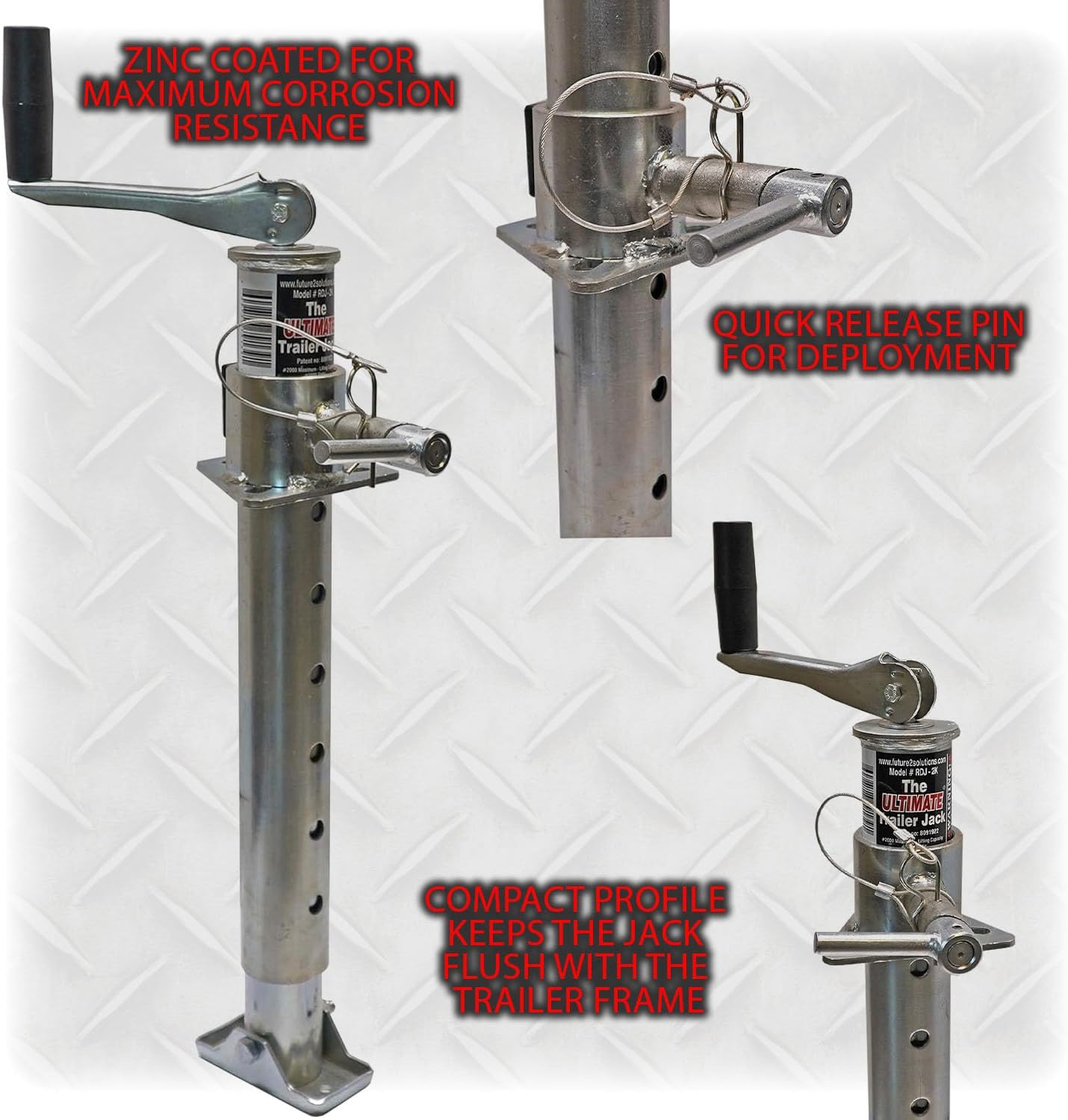

• Zinc finish resists corrosion

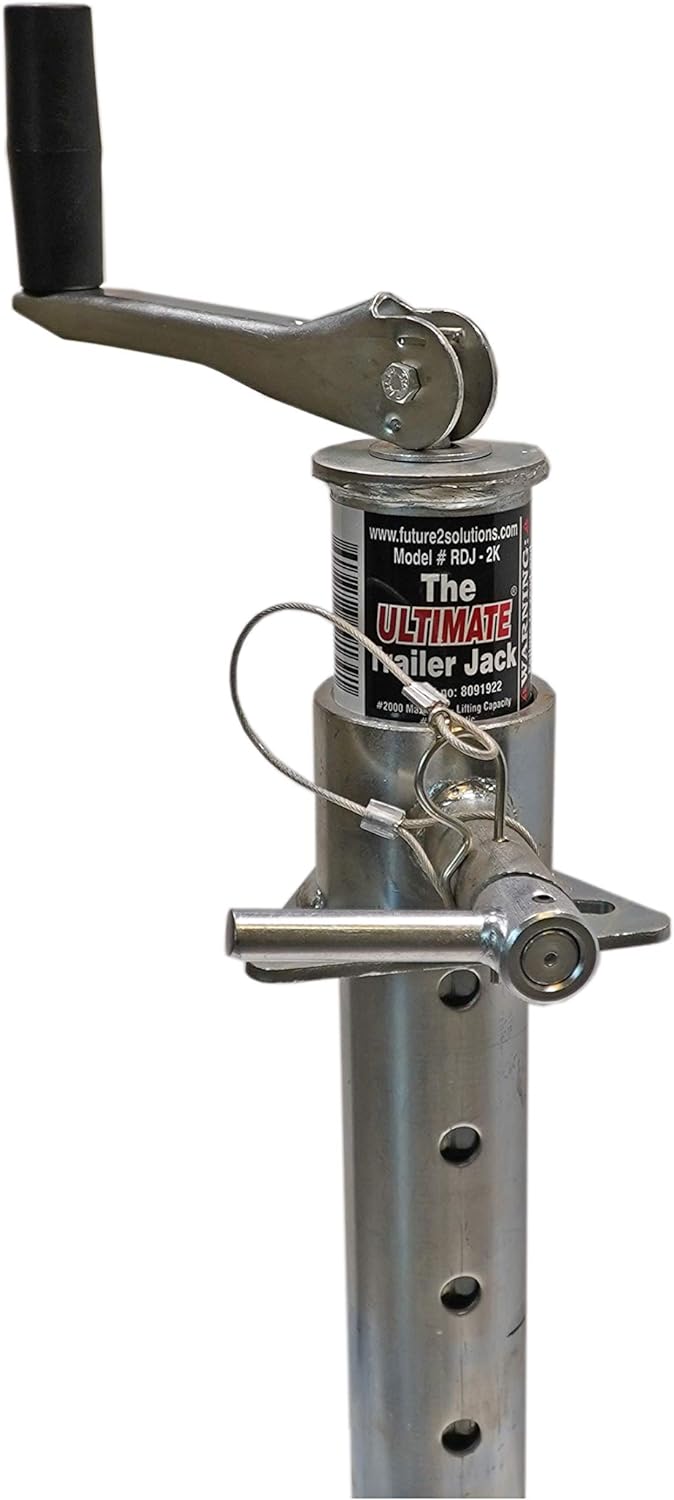

• Topwind handle allows for simple cranking
  • Handle radius is approximately 6-3/4" from center of mount to the outer edge of handle
• Mounting bracket can be welded or bolted on
• Footplate included
• Caster assembly sold separately

Ultimate Trailer Jack Specifications:

• Bracket height:
  • 1-3/4" with the jack fully retracted and the collar at the lowest setting
  • 29-1/4" with the jack fully extended and the collar at the highest setting
• Total lift: 27-1/2"
  • Travel by cranking the handle: 15-1/2"
  • Drop tube: 12" - adjusts in increments of 2"
• Mounting bracket hole spacing (center on center): 3" x 3-1/4"
• Inner tubing diameter: 2"
• Outer tubing diameter: 2-1/4"
• Clearance from bottom of bracket to top of handle mount: 7-1/4" x 19-1/4"
• Lift capacity: 2,000 Lb
• Support capacity: 3,000 Lb
• 1-Year limited warranty

The Ultimate Trailer Jack has a wide range of adjustability and it is easy to use, making it a dependable choice for your A-frame trailer. Its adjustable design allows for maximum clearance, drastically reducing the potential for damaging hang-ups. The jack also features an outer tube that extends to provide extra lift. This removes the need for common space fillers while providing a sturdy base of support. With this jack, the hassle of dealing with drop legs, bulky blocks, or heavy bricks is a thing of the past.
