Buyers B20143 3-Position Adjustable Eye Assembly with 3 Inch Heavy-Duty Channel - 10-Ton

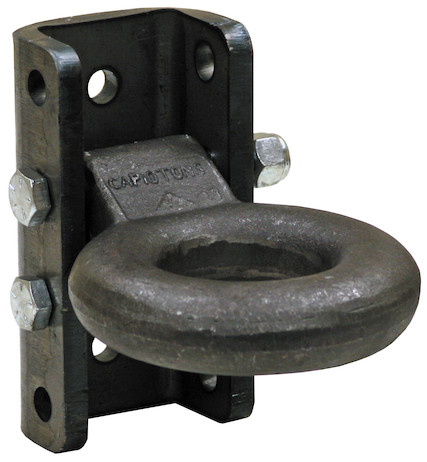

The Adjustable Eye Assembly from Buyers Products allows you to adjust the position of a tow eye for level towing. It comes with a forged steel eye (3 in. interior diameter) and a 3 or 5 position formed steel channel bracket. Simply bolt the eye into the channel bracket at the position that fits your needs, and connect to the pintle hook on your truck. Fasteners are included. The 5 position bracket comes with gussets that you can weld on for even greater support. Both the 3 and 5 position models will handling a maximum gross towing weight of 20,000 lb.
- Adds flexibility in tow eye height for leveling your trailer.
- Strong forged steel eye and one-piece formed steel channel.
- Can handle towing up to 20,000 lb.
Specifications
| Eye Inner Diameter (in.) | 3.0" | Eye Outer Diameter (in.) | 6.25" |
| Finish | Plain | M.G.T.W. (lbs.) | 20,000 lb |
| M.V.L. (lbs.) | 2,000 lb | Material | Forged Steel cm |
| Mounting Hole Diameter (in.) | 0.656" | Position | 3 Position |
| Vertical Hole Spacing (in.) | 2.0" | Shipping Weight | 21.5 lb |
