Buyers BBEMD8S16 Direct Mount Hydraulic Pump 8T Spline

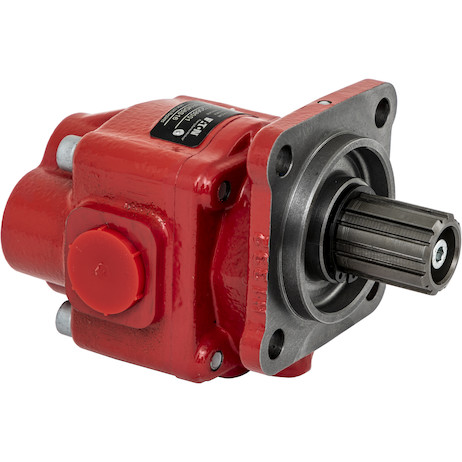

The Direct Mount Hydraulic Pump 8T Spline from Buyers Products is designed for trucks 1 ton or under, such as the Ford® F350-F550. Ideal for trucks that run plows, spreaders, or dump bodies, this unit is designed for continuous work at 3500 PSI. Maximum 4200 PSI spike to prevent damage. Mounts directly to the truck's engine with the 4-bolt flange mount.
- Designed for trucks 1 ton or under, such as the Ford F350-F550
- Used for trucks that run plows, spreaders, or dump bodies
- Designed for continuous work at 3500 PSI; maximum 4200 PSI spike to prevent damage
- 2000 RPM max
- DIN 5462 8 Tooth splined shaft and 4 bolt flange mount, commonly found in newer trucks
- 9.96 GPM @ 1000 Engine RPM
Specifications
| Direct or Remote Mount | Direct Mount | Displacement | 2 in.³/r |
| Flow | 8.0 GPM | Flow at 1000 RPM | 7.66 GPM |
| Flow at 1200 RPM | 9.19 GPM | Flow at 1500 RPM | 11.49 GPM |
| Flow at 1800 RPM | 13.78 GPM | Flow at 2100 RPM | 16.08 GPM |
| Flow at 600 RPM | 4.59 GPM | Flow at 900 RPM | 6.89 GPM |
| Gear Size | 1.25" | Inlet Port Size | 1 SAE ORB (-16) |
| Input Mount Type | 4 Bolt | Material | Cast Iron |
| Maximum Pressure | 3500 PSI | Maximum Rotations Per Minute (RPM) | 2000 RPM |
| Mount Type | 4 Bolt | Outlet Port Size | 1 SAE ORB (-16) |
| Pilot Diameter | 3.15" | Ports (rear/side) | Both |
| Rear Port Size | 1 SAE ORB (-16) | Rotation | Bi-Directional |
| Shaft Size | 1.25- 8 Tooth | Shaft Type | Spline |
| Side Port Size | 1 SAE ORB (-16) | Suction Port Size | 1 SAE ORB (-16) |
| Shipping Weight | 15.65 lb |
