Buyers PU303LRS 3-Way DC Power Unit-Electric Controls Horizontal 3 Gallon Steel Reservoir

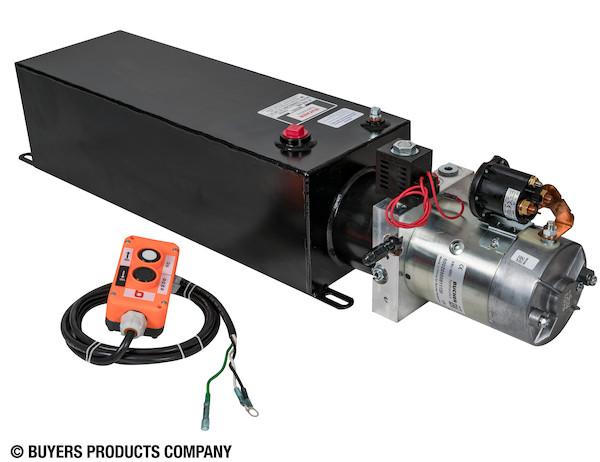

The 3-Way Valve DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. Its large 8 GPM, 3 function dump valve and power up/gravity down hydraulic application make it ideal for dump applications. You get quick-response functionality at your fingertips from one small package. The unit contains a built-in pump, 12V motor, steel reservoir, suction filter, and push-button control station. It also features an externally mounted release valve with flow control on down. The unit is built to withstand weather and tough work demands.
- Compact, cost-effective power ideal for dump applications.
- Includes everything you need to power the job.
- Easy push-button controls.
- 3-way functionality: power up/gravity down.
- Built to withstand harsh weather and tough work demands.
Specifications
| Control Cable Length | 72" | Controller Included? | Y |
| Height | 7.72" | Length | 32.94" |
| Manual or Push Button | Push Button | Motor Horsepower | 2 HP |
| Motor Power (kW) | 1.5 | Motor Voltage | 12 VDC |
| Mounting Position | Horizontal | Number of Cartridge Valves | 1 |
| Outlet Port Size | 3/8 NPT | Pressure Rating | 2500 PSI |
| Reservoir Material | Carbon Steel | Reservoir Usable Volume | 3.00 Gal |
| Reservoir Volume (Gal) | 3.00 | Spool Action | Power Up/Gravity Down |
| Valve Function | 3W | Width | 7.91" |
| Shipping Weight | 47 lb |
