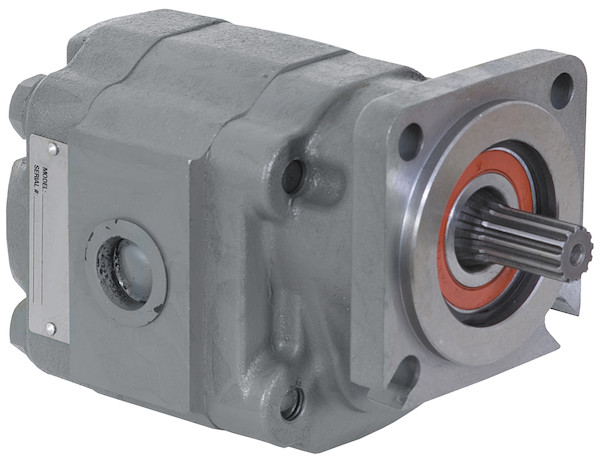

Buyers H5134251 Live Floor Hydraulic Pump With 2-1/2 Inch Diameter Gear
The heavy duty Live Floor Hydraulic Pump from Buyers Products is built tough to handle continuous, high-pressure operations such as a live floor. It features counter clockwise rotation. The pump is constructed of cast iron with Teflon-coated bronze thrust plates and heavy duty roller bearings. Eight internal dowels protect the structural integrity of the pump. Two models both handle a maximum 3000 PSI while delivering a flow of either 18 GPM or 24.2 GPM at 1000 RPM. The pump is designed to be 4-bolt mounted into an SAE B mount.
- Built tough to handle live floor applications.
- Features heavy duty roller bearing construction.
- Eight-doweled design adds structural strength.
- High-pressure rated -- will handle a maximum 3000 PSI.
Specifications
| Direct Mount/Remote Mount | 4 Bolt SAE B | Direct or Remote Mount | Direct Mount |
| Displacement | 6 in.³/r | Flow | 24 GPM |
| Flow at 1000 RPM | 24 GPM | Flow at 1200 RPM | 29. GPM |
| Flow at 1500 RPM | 36.3 GPM | Flow at 1800 RPM | 43.56 GPM |
| Flow at 2100 RPM | 50.82 GPM | Flow at 600 RPM | 14.52 GPM |
| Flow at 900 RPM | 21.78 GPM | Gear Size | 2.50" |
| Gear Width | 2.500" | Inlet Port Size | 1 1/2 NPT |
| Input Mount Type | Integral Bracket | Material | Cast Iron |
| Maximum Pressure | 3000 PSI | Mount Type | SAE B 4 Bolt |
| Outlet Port Size | 1 1/2 NPT | Pilot Diameter | 4.00" |
| Ports (rear/side) | Side | Rotation | Counterclockwise |
| Shaft Size | 7/8-13 | Shaft Type | Splined |
| Shipping Weight | 49.55 lb |
