Buyers H6134171 Live Floor Hydraulic Pump With Relief Port And 1-3/4 Inch Diameter Gear

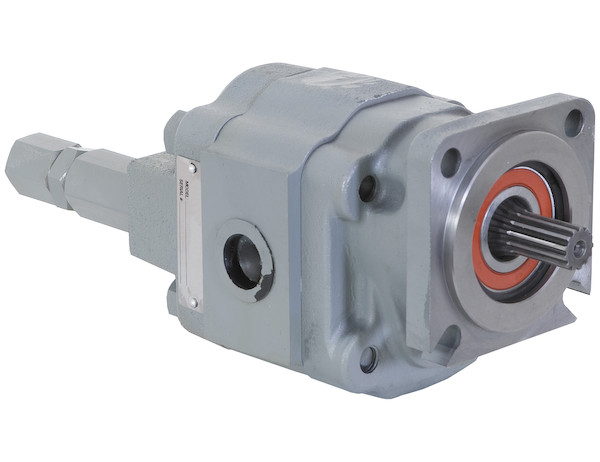

The heavy duty Live Floor Hydraulic Pump with Relief Port from Buyers Products is built tough to handle continuous, high-pressure operations such as a live floor. It features counter clockwise rotation. The 1 in. relief port on the rear protects the pump's operation from spikes in pressure that could damage it and other parts of your hydraulic system. The pump is constructed of cast iron with Teflon-coated bronze thrust plates and heavy duty roller bearings. Eight internal dowels protect the structural integrity of the pump. Two models both handle a maximum 3000 PSI while delivering a flow of either 18 GPM or 24.2 GPM at 1000 RPM. The pump is designed to be 4-bolt mounted into an SAE B mount.
- Built tough to handle live floor applications.
- Relief port designed to protect the system from pressure spikes.
- Features a heavy duty roller bearing construction.
- Eight-doweled design adds extra strength.
- High pressure rated -- will handle a maximum 3000 PSI.
Specifications
| Direct Mount/Remote Mount | 4 Bolt SAE B | Direct or Remote Mount | Direct Mount |
| Displacement | 3 in.³/r | Flow | 18 GPM |
| Flow at 1000 RPM | 18 GPM | Flow at 1200 RPM | 21.80 GPM |
| Flow at 1500 RPM | 27.00 GPM | Flow at 1800 RPM | 43.56 GPM |
| Flow at 2100 RPM | 50.82 GPM | Flow at 600 RPM | 14.52 GPM |
| Flow at 900 RPM | 21.78 GPM | Gear Size | 2.50" |
| Gear Width | 1.750" | Inlet Port Size | 1 1/2 NPT |
| Input Mount Type | Integral Bracket | Material | Cast Iron |
| Maximum Pressure | 3000 PSI | Mount Type | SAE B 4 Bolt |
| Outlet Port Size | 1 1/4 NPT | Pilot Diameter | 4.00" |
| Ports (rear/side) | Side | Rotation | Counterclockwise |
| Shaft Size | 7/8-13 | Shaft Type | Splined |
| Shipping Weight | 51 lb |
