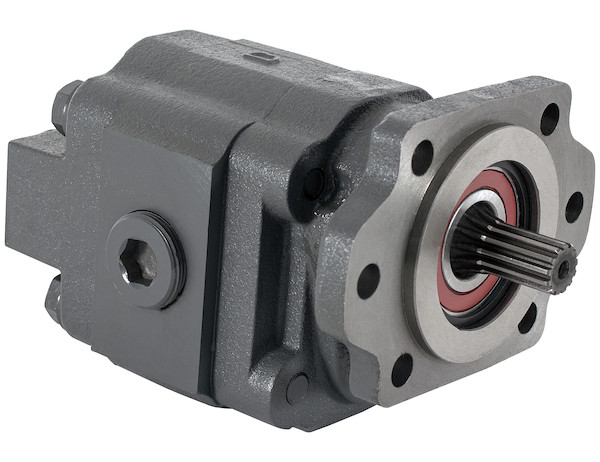

Buyers H5036171 Hydraulic Gear Pump With 7/8-13 Spline Shaft And 1-3/4 Inch Diameter Gear
The H50 Series Hydraulic Gear Pump with Spline Shaft from Buyers Products is a sturdy, heavy duty bi-rotational pump that can be 2- or 4-bolt mounted in an SAE B mount. Choose from a range of models to meet your needs. All models feature a 7/8 in. by 13 spline shaft.
- Built tough of cast iron with teflon-coated bronze thrustplates.
- Structural integrity supported by four internal dowels and a shaft bearing.
- High-pressure rated.
Specifications
| Direct Mount/Remote Mount | 2/4 Bolt SAE B | Direct or Remote Mount | Direct Mount |
| Displacement | 3 in.³/r | Flow | 18 GPM |
| Flow at 1000 RPM | 18 GPM | Flow at 1200 RPM | 21.6 GPM |
| Flow at 1500 RPM | 27.00 GPM | Flow at 1800 RPM | 32.40 GPM |
| Flow at 2100 RPM | 37.8 GPM | Flow at 600 RPM | 10.80 GPM |
| Flow at 900 RPM | 16.20 GPM | Gear Size | 1.75" |
| Gear Width | 1.750" | Inlet Port Size | 1 1/4 NPT |
| Input Mount Type | Integral Bracket | Material | Cast Iron |
| Maximum Pressure | 2500 PSI | Maximum Rotations Per Minute (RPM) | 2000 RPM |
| Mount Type | SAE B 2/4 Bolt | Outlet Port Size | 1 1/4 NPT |
| Pilot Diameter | 4.00" | Ports (rear/side) | Rear/Side |
| Rear Port Size | 1 1/4 NPT | Rotation | Bi-Directional |
| Shaft Size | 7/8-13 | Shaft Type | Splined |
| Shipping Weight | 48 lb |
