Bigfoot M1024-1 SQ1 Inner Cylinder 24 Inch and 1 inch Hole in Shaft
Bigfoot M1024-1 SQ1 Inner Cylinder 24 Inch and 1 inch Hole in Shaft
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
This is the inner cylinder only that goes inside the standard landing gear of our 2018 and newer square legs (SQI-24).
Cylinder Specs:
- 12,000 lb lift capacity,
- 2.88" outer cylinder diameter,
- 1.5" shaft diameter,
- 24" stroke/travel,
- fits in SQI-24 model jacks (4.5" outer square tube) with a 1" hole in the shaft at the bottom of the jack.

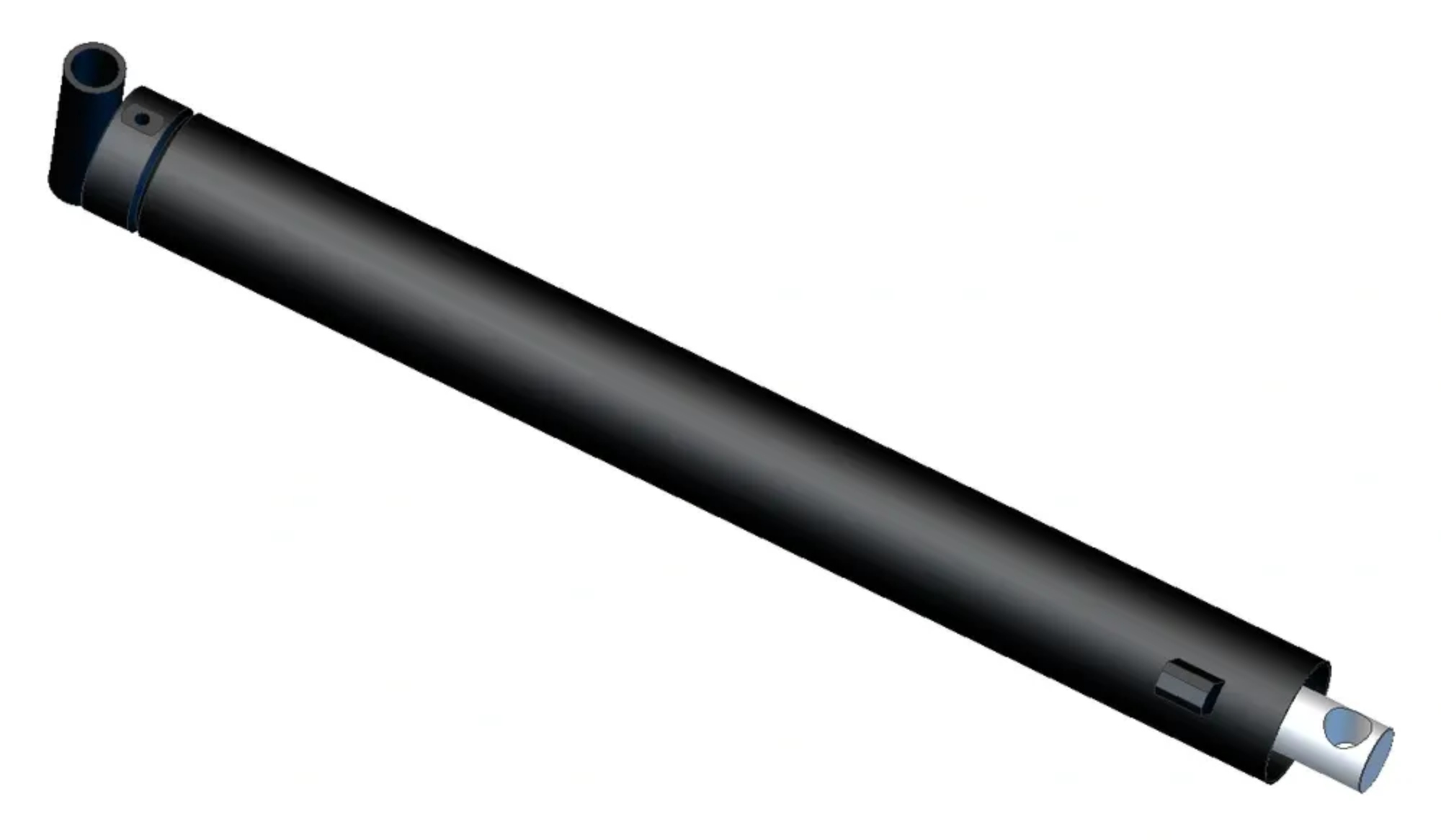

NOTE: This cylinder model has a 1" hole in the bottom of the shaft (as shown in pic). Assembled, the 1" pin attaches through the hole in the shaft, inner square tube and footpad.
If you DO NOT have a 1" hole in the shaft, but instead have a threaded stud and a screw on clevis tube at the bottom of the shaft, you will need a new square inner sleeve.
