Goshen Stamping Universal Push Spring Assembly Set For High Wall Pop Up Camper Lift Systems - 167 Inches

Brands:
Product Number: GOS-01473-SPRING-167
Vendor Number: 01473-SPRING-167
$119.99 $99.99

Goshen Stamping Universal Push Spring Assembly Set For High Wall Pop Up Camper Lift Systems - 167 Inches

Brands:
Product Number: GOS-01473-SPRING-167
Vendor Number: 01473-SPRING-167
$119.99 $99.99 You Save $20.00 (16.7%)
Adding this item to your cart will qualify your order for US domestic

QTY:

Goshen Stamping Universal Push Spring Assembly Set for High Wall Pop Up Camper Lift Systems - 167 Inches

The Goshen Stamping Push Spring Assembly Set is a universal set of lift springs designed to fit the high wall pop up camper lift systems. Not all pop-up camper lift springs measure 167-inches, so this set of springs may need to be cut to length depending on the model of camper they will be installed on. The outside diameter of these push springs measure a 1/2 inch.



You will need 2 sets for Front and Rear replacements. 1 set for the front and 1 set for the rear

You can identify if you have the Goshen lift system if your winch is mounted on the tongue of the camper and you have only one cable running underneath to a pulley in the back.

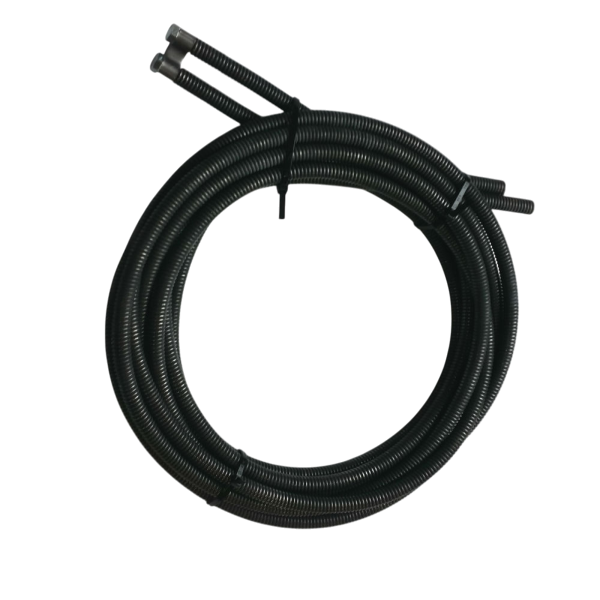

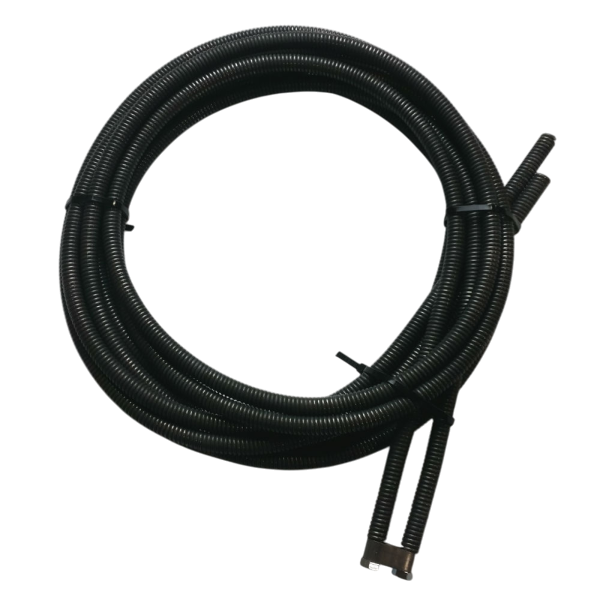

This push spring assembly includes two 167-inch push springs



Notice From The Manufacturer:

This product will  fit high wall campers only.



Goshen Stamping Push Spring Replacement Procedure

It is important when changing springs to do only one end of the camper at a time. The roof should be DOWN before repairing, to take pressure off the system.

1. Remove the tie plate by removing the two self-tapping screws.
2. Remove the two screws that attach the spring tubes to the master tube.
3. Remove two screws each from floor plates that attach spring tubes to the frame of the camper.
4. Pull the spring out from the bottom of the telescoping posts.
5. Pull the spring tube off of the spring.
6. Pull the spring assembly (2 springs attached) out of the master tube.
7. Put the new spring assembly in the master tube and push all the way to the stop. Note: The cable lies between the springs and must slide freely.
8. Put the spring tubes on the springs. (You may need to put some oil in the tube to ease pushing spring through).
9. Attach the spring tubes to the corner of the frame of the camper.
10. Attach the spring tubes to the master tube.
11. Attach the tie bar.
12. Repeat the above procedure on the opposite end of the camper if necessary.



Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
