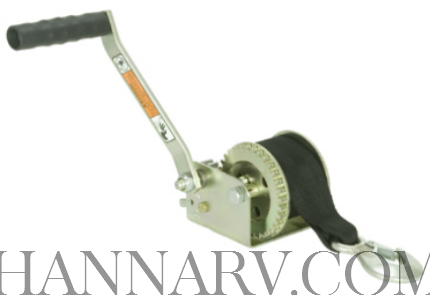

Dutton-Lainson 15007 DL900A Trailer Hand Winch With 15 Foot Strap - 900 Lbs Capacity - 3.2:1 Gear Ratio
Dutton-Lainson 15007 DL900A Trailer Hand Winch With 15 Foot Strap - 900 Lbs Capacity - 3.2:1 Gear Ratio
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

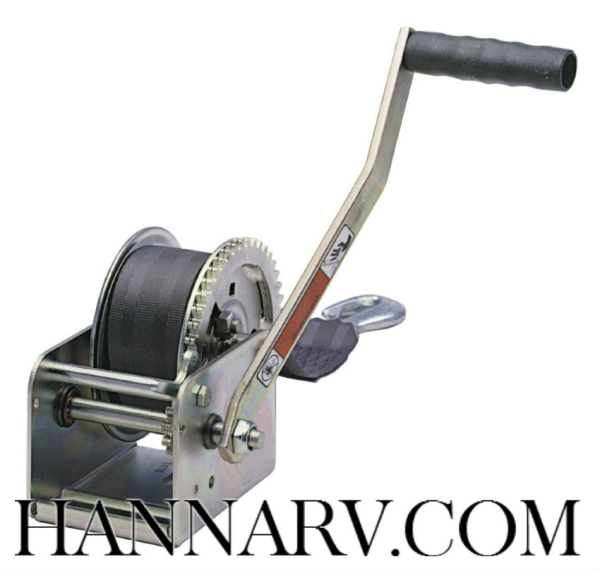

VideosDutton-Lainson 15007 DL900A Trailer Hand Winch With 15 Foot Strap has a 900 lbs capacity and 3.2 to 1 gear ratio. The reels are reinforced arc-welded and the embossed reinforced bases have high carbon steel gears. The gear ratios are load matched making for much easier cranking and the gear system has hunting teeth for a more even wear and longer product life span. This trailer winch also comes with 15 foot strap installed.
Product Specifications:
- 900 lbs capacity
- 15 foot strap included and installed
- Permanently lubricated bearings
- Zinc Tuffplate finish
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
| Model | Rated Capacity (2) | Drum Hub Dia. | Gear Ratio | Handle Length | Max Mech. Adv. | Reversible Ratchet | 2-Speed Operation | Cable (3) | Strap |
|---|---|---|---|---|---|---|---|---|---|
| DL400 | 400 lb/181 kg | 5/8" | 1:1 | 7" | 18 | 1/8" x 87' | 19' | ||
| DL600A | 600 lb/272 kg | 5/8" | 3.2:1 | 7" | 57 | 5/32" x 61' | 16' | ||
| DL900A | 900 lb/408 kg | 5/8" | 3.2:1 | 7" | 55 | 3/16" x 40' | 16' | ||
| DL1100A | 1100 lb/499 kg | 7/8" | 3.7:1 | 7" | 49 | 3/16" x 79' | 29' | ||
| DL1300A | 1300 lb/590 kg | 7/8" | 4.4:1 | 7" | 56 | 7/32" x 56' | 31' | ||
| DL1402A | 1400 lb/635 kg | 7/8" | 4.4:1 | 9-1/2" | 74 | X | 1/4" x 40' | 31' | |
| DL1602A | 1600 lb/726 kg | 1-1/8" | 5.4:1 | 9-1/2" | 75 | X | 1/4" x 58' | 45' | |
| DL1602ADD | 1600 lb/726 kg | 1-1/8" | 5.4:1 / 1:1 | 9-1/2" | 75 | X | X | 1/4" x 58' | 45' |
| DL1802A | 1800 lb/817 kg | 1-1/8" | 5.4:1 | 9-1/2" | 73 | X | 9/32" x 58' | 38' | |
| DL2102A | 2100 lb/952 kg | 1-1/8" | 5.4:1 | 11" | 84 | X | 9/32" x 58' | 38' | |
| DL1800A | 1800 lb/817 kg | 1-1/8" | 10.3:1 / 5.4:1 | 9-1/2" | 139 | X | X | 9/32" x 58' | 38' |
| DL2000A | 2000 lb/907 kg | 1-1/8" | 12.4:1 / 5.4:1 | 9-1/2" | 168 | X | X | 9/32" x 58' | 38' |
| DL2500A | 2500 lb/1134 kg | 1-1/8" | 17.3:1 / 5.4:1 | 9-1/2" | 229 | X | X | 5/16" x 47' | 38' |
| DL3200A | 3200 lb/1452 kg | 1-1/8" | 17.3:1 / 5.4:1 | 9-1/2" | 219 | X | X | 3/8" x 30' | 25' |
| DL3500B (1) | 3500 lb/1589 kg | 1-5/16" | 12:1 / 6:1 | 9-1/2" | 135 | X | X | 3/8" x 37' | - |
