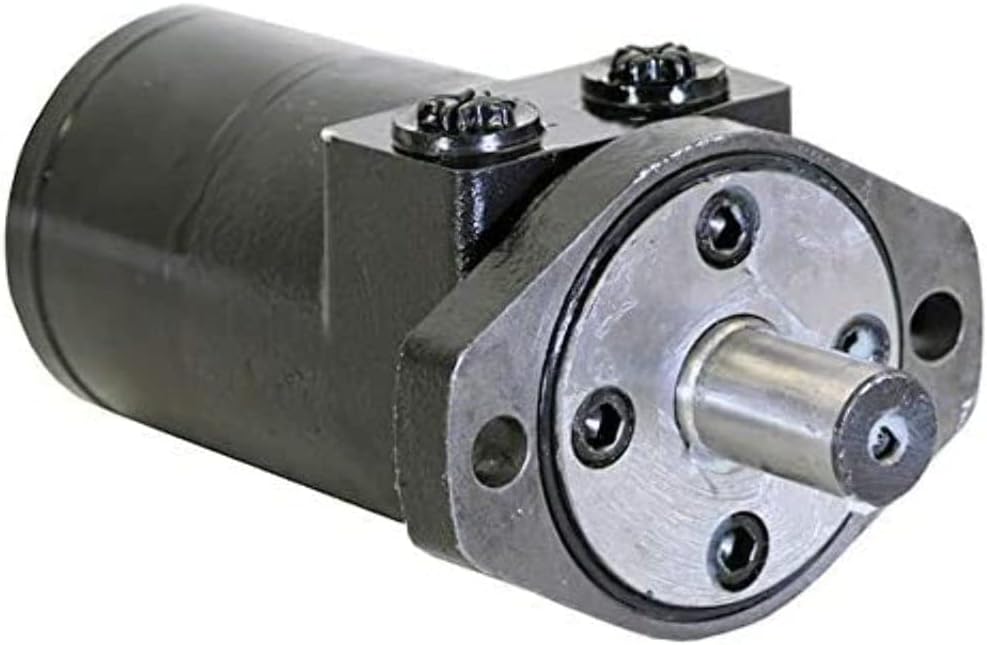

Buyers HM006P Char-Lynn Hydraulic Spinner Motor - Replaces CHAR-LYNN 101-1319 WESTERN 95277

Char-Lynn H Series motors are economical, efficient, small, compact, and powerful. They are designed for medium duty applications. These motors have the industry proven spool valve design combined with state-of-the-art gerotors. In addition, their wide variety of mounting flanges with a 1" diameter straight shaft, woodruff keyway, and 1/2" NPT port proivde great design flexibility. Direction of the shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor and the equipment can be driven directly eliminating many costly mechanical components.

Product Features and Specs

• Compares To 101-1319-009
• Flow (Continuous) 12 GPM
• Input Mount Type 2 Bolt
• Material Cast Iron
• Maximum Case Pressure (Without Case Drain) 1500 PSI
• Maximum Speed (Continuous) 969 RPM
• Pilot Diameter 3.25 "
• Shaft Keyway Cross drilled "
• Shaft Type Straight
• Displacement 2.8 in.²
• Flow (Intermittent) 14 GPM
• Torque Rating (Continuous) 650 Inch Pound
• Torque Rating (Intermittent) 720 Inch Pound
• Port Size 1/2 NPT
• Shaft Size 1.00 "
• Maximum Speed at Continuous Flow 969 RPM
• Maximum Speed at Intermittent Flow 1130 RPM
• Minimum Starting Torque (Continuous Pressure) 520 Inch Pound
• Minimum Starting Torque (Intermittent Pressure) 720 Inch Pound
• Pressure Δ Bar (Continuous) 1800 PSI
• Pressure Δ Bar (Intermittent) 2400 PSI

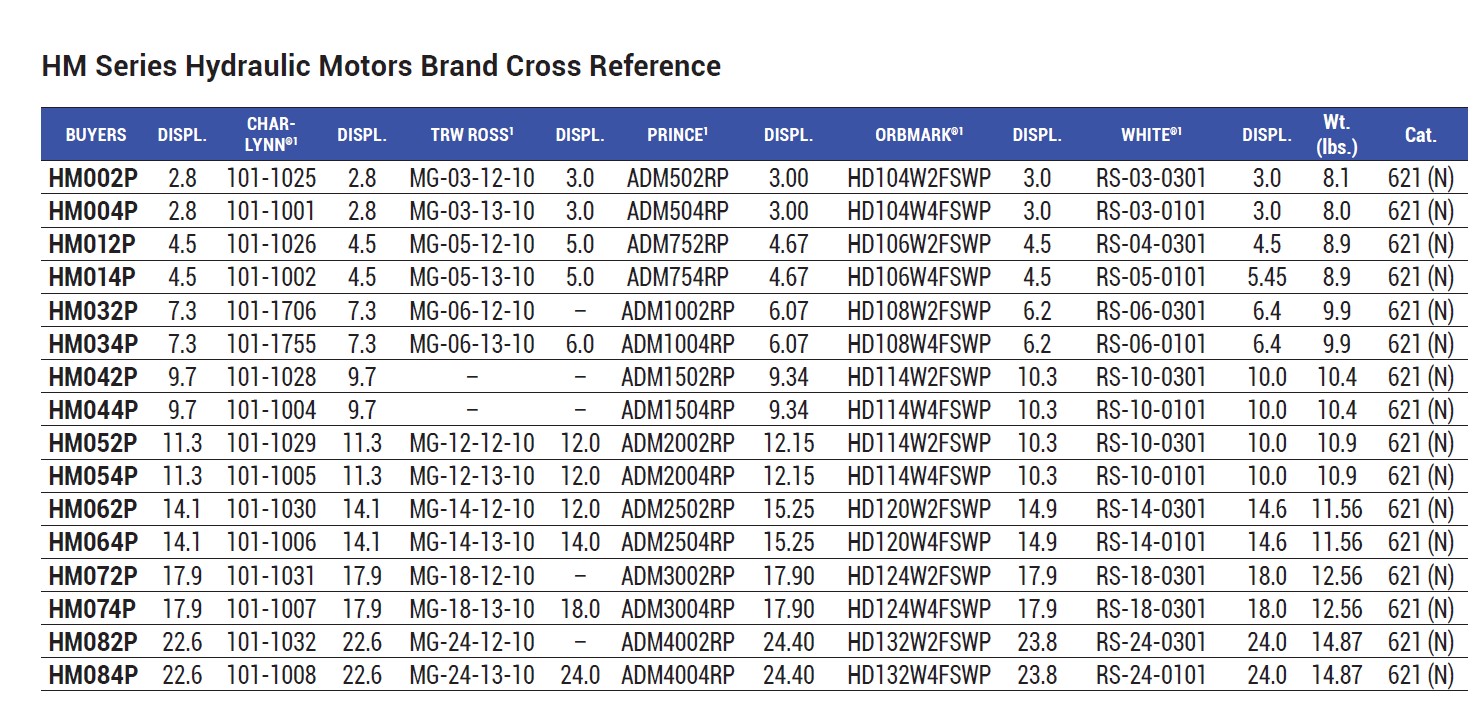

• Replaces These Parts: CHAR-LYNN 101-1319, WESTERN 95277
