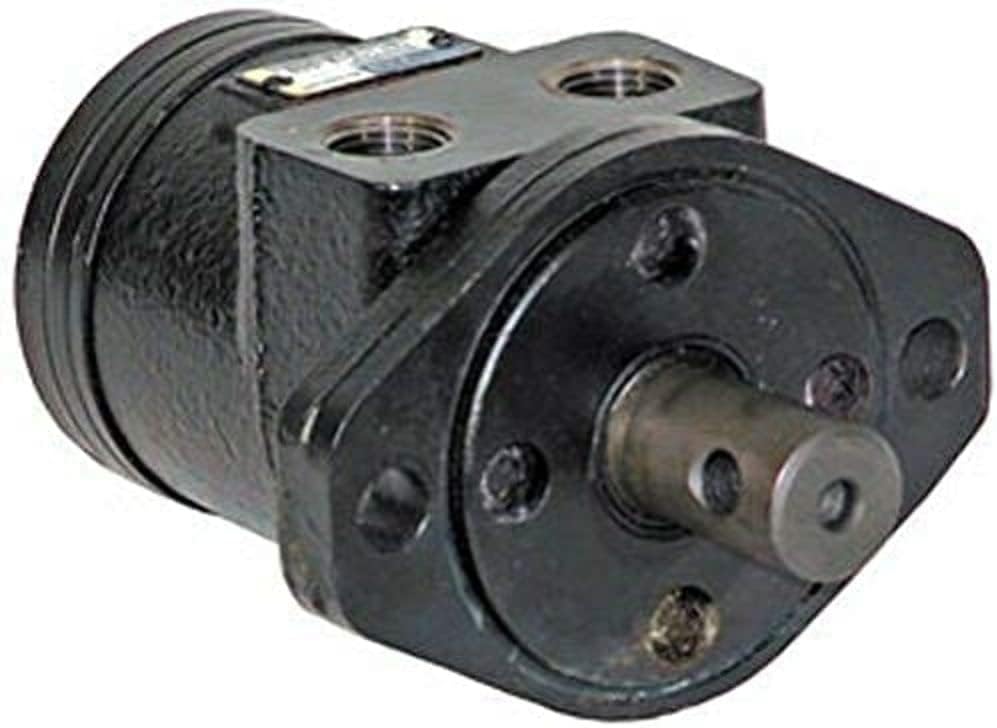

Buyers HM034P Char-Lynn Hydraulic Auger Motor (4 Bolt 7.3 CIPR) - Replaces CHAR-LYNN 101-1003 MEYER 61353

Brands:
Product Number: BUY-HM034P
Vendor Number: HM034P
$599.95 $499.99

Buyers HM034P Char-Lynn Hydraulic Auger Motor (4 Bolt 7.3 CIPR) - Replaces CHAR-LYNN 101-1003 MEYER 61353

Product Number: BUY-HM034P
Vendor Number: HM034P
$599.95 $499.99 You Save $99.96 (16.7%)
Adding this item to your cart will qualify your order for US domestic

QTY:

Char-Lynn H Series motors are economical, efficient, small, compact, and powerful. They are designed for medium duty applications. These motors have the industry proven spool valve design combined with state-of-the-art gerotors. In addition, their wide variety of mounting flanges with a 1" diameter straight shaft, woodruff keyway, and 1/2" NPT port proivde great design flexibility. Direction of the shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor and the equipment can be driven directly eliminating many costly mechanical components.

  • Compares To 101-1755-009
  • Flow (Continuous) 15 GPM
  • Input Mount Type 4 Bolt
  • Material Cast Iron
  • Maximum Case Pressure (Without Case Drain) 1500 PSI
  • Maximum Speed (Continuous) 585 RPM
  • Pilot Diameter 1.75 "
  • Shaft Keyway 0.25 "
  • Shaft Type Straight
  • Displacement 7.3 in.²
  • Flow (Intermittent) 18 GPM
  • Torque Rating (Continuous) 1368 Inch Pound
  • Torque Rating (Intermittent) 1510 Inch Pound
  • Port Size 1/2 NPT
  • Shaft Size 1.00 "
  • Maximum Speed at Continuous Flow 585 RPM
  • Maximum Speed at Intermittent Flow 702 RPM
  • Minimum Starting Torque (Continuous Pressure) 1100 Inch Pound
  • Minimum Starting Torque (Intermittent Pressure) 1510 Inch Pound
  • Pressure Δ Bar (Continuous) 1800 PSI
  • Pressure Δ Bar (Intermittent) 2400 PSI

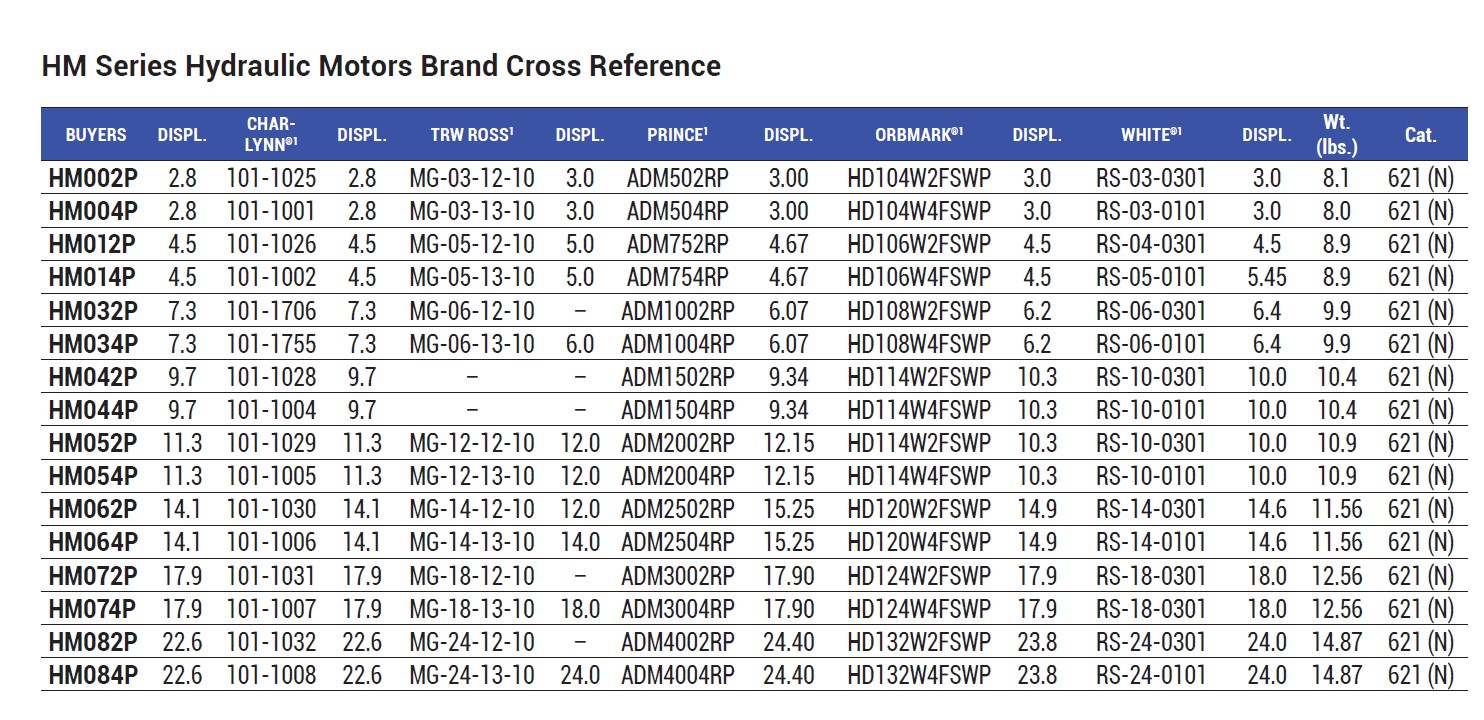

Cross over list (part numbers that this part replaces):

  • Charlynn #: 101-1003 with 7.3 Displace
  • TRW Ross #: MG-06-13-10 with 6.0 Displace
  • Prince Adan #: ADM1004RP with 6.07 Displace
  • Orbmark #: HD108W4FSWP with 6.2 Displace
  • White #: RS-06-0101 with 6.4 Displace
