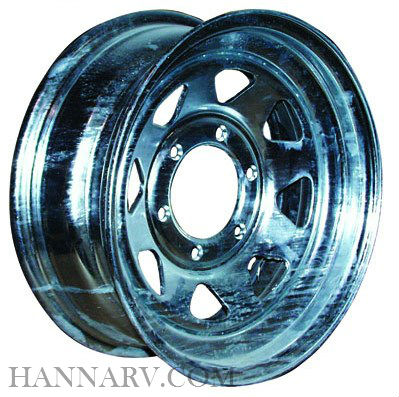

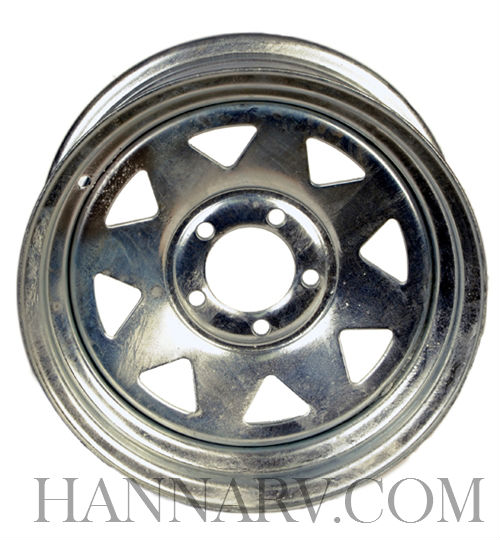

Galvanized Spoke Trailer Wheel WH156-5GVS 15 Inch x 6 Inch - 5 on 4-1/2 Bolt Pattern
Galvanized Spoke Trailer Wheel WH156-5GVS 15 Inch x 6 Inch - 5 on 4-1/2 Bolt Pattern
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Replacement steel wheel. These wheels have all the benefits of painted wheels with a galvanized finish to resist corrosion.
• 15" x 6"
• Galvanized spoke
• 5 on 4.5" bolt pattern
• 2640lb weight capacity at 65psi
• Center cap not included
• Fits 1/2" studs
• 0 offset
• Pilot diameter is 3.30"
• Meets DOT specifications
• Not required to be balanced **When balancing the wheel must be mounted using the stud holes in the wheel not the pilot hole
To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.
To Determine Wheel Offset: Offset is the distance between the mounting face of the hub and the centerline of the rim. Inset: Refers to the distance when the mounting face is outboard of the rim centerline. Outset: Refers to the distance when the mounting face is inboard of the rim centerline. Please use the picture above. We are here to help if you have any questions.
