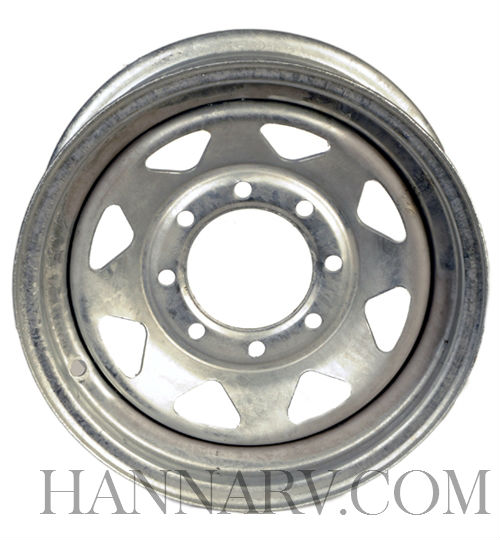

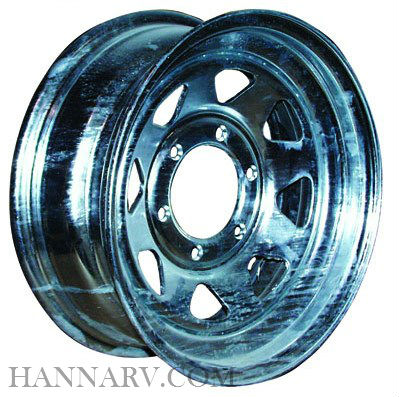

Galvanized Spoke Trailer Wheel WH166-8GVS 16 Inch x 6 Inch - 8 on 6-1/2 Bolt Pattern - 9/16 Inch Stud
Galvanized Spoke Trailer Wheel WH166-8GVS 16 Inch x 6 Inch - 8 on 6-1/2 Bolt Pattern - 9/16 Inch Stud
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Replacement steel wheel.
• 16" x 6"
• Galvanized spoke for superior corrosion resistance
• 8 on 6.5" bolt pattern
• 3960lb weight capacity at 110psi
• Center cap not included
• Fits 9/16" or 1/2" studs
• 0 offset
• Pilot diameter is 5.15"
• Meets DOT specifications
• USA Made
• Not required to be balanced **When balancing the wheel must be mounted using the stud holes in the wheel not the pilot hole
To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.
To Determine Wheel Offset: Offset is the distance between the mounting face of the hub and the centerline of the rim. Inset: Refers to the distance when the mounting face is outboard of the rim centerline. Outset: Refers to the distance when the mounting face is inboard of the rim centerline. Please use the picture above. We are here to help if you have any questions.
