Dexter 23-342 Free-Backing Hydraulic Brake Assembly Left Hand - 12 Inch x 2 Inch - 7000 Lb Capacity
Dexter 23-342 Free-Backing Hydraulic Brake Assembly Left Hand - 12 Inch x 2 Inch - 7000 Lb Capacity
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

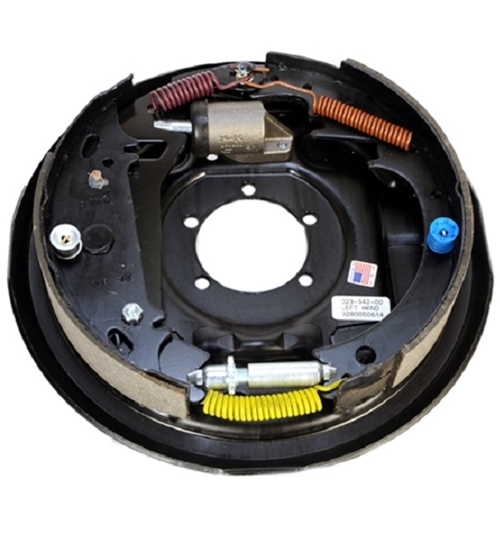

Dexter 12" x 2" Left Hand hydraulic complete brake assembly. 7000lb capacity per pair. Mounts with 5 bolts (not included). Single Servo - Single plunger comes from the wheel cylinder (Most Common Style) Uses 12" Hub/Drums. Nuts-38N, bolts-7-5, and washers-38LW sold separately.
Product Specifications
• Fits standard 7000lb axle with a 5 bolt pattern on the mounting flange.
• Free backing(allows you to back up without having to set a lever or release)
• Left Hand(driver's side)
• Complete assembly ready to bolt on and install
• For use with a 12" inside diameter drum
• The shoes are 2" wide
To determine the size of the brake, you need 2 measurements. The first is the diameter of the brake(D). The second is the width of the shoe(W). It is good to take note of how many mounting bolts the brake has.
