Dexter Hub W/ 8 on 6.5" Bolt Pattern For 9,000lb & 10,000lb GD Axles Manufactured Before 07/2009
This hub is for use with 9K to 10K GD axle spindles. Each hub has a capacity if 5,000 lbs. Spindle nut, spindle washer and drum are sold separately. Comes with 5/8" studs. Bearings, Oil Cap, Oil Seal, Retaining Ring, and Wheel Nuts Sold Separately. This Hub is designed for 9K-10K GD Dexter axles made Before July of 2009 and 9K Dexter axles made After October 1989.
Product Specifications
- Oil Bath Hub only
- 387A Inner / 25580 Outer Bearing
- Fits Dexter 9K & 10K General Duty (After 07-01-09)
- One-Piece Hub & Drum
- Capacity of 5,000 lbs. per each
- Drum Size: 12 1/4” x 3 3/8”
- Available with ABS exciter ring installed
- 4.75” Hub Pilot

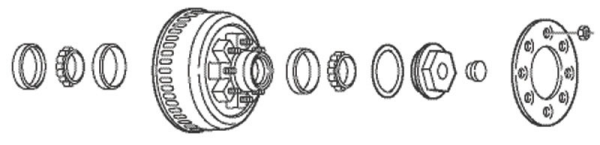

Items included
• 1x 25520 Outer Race (Already Pressed In) 3.265" OD
• 1x 382A Inner Race (Already Pressed In) 3.813" OD
• 5/8" Wheel Studs
• 5,000lb Capacity Per Hub
Items Sold Separately
• 1x 387A Inner Bearing (2.25" ID)
• 1x 25580 Outer Bearing (1.75" ID)
• 1x 10-51 Oil Seal (2.875" x 3.88")
• x1 21-88 Oil Cap
• 1x 46-32 EZ Oil Cap Plug
• 1x 10-163 O-ring
• 8x 6-109 Coned Wheel Nuts
• 1x 33-52-1 Wheel Retaining Ring
To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
