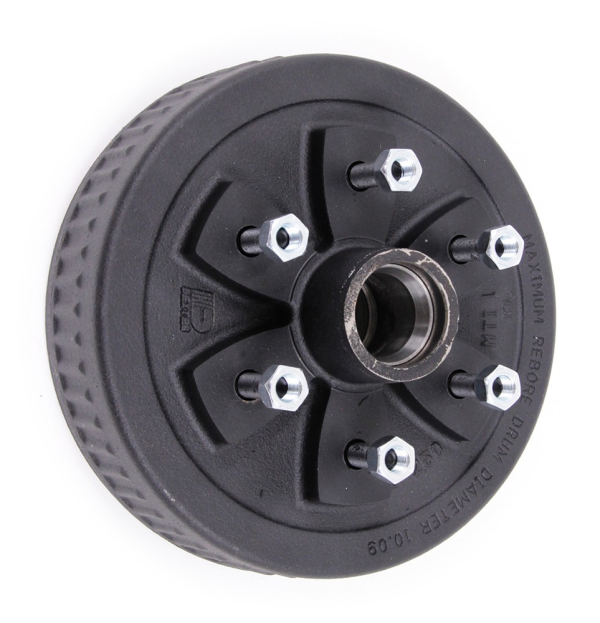

Complete Hub and Drum Assembly - HD84656UC3 - 6 on 5-1/2 - L68149 Inner / L44649 Outer Bearings

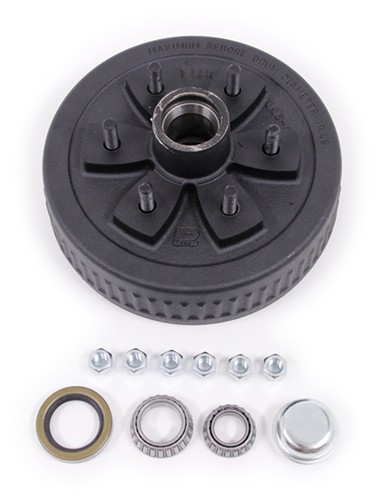

This Complete Trailer Hub and Drum Assembly includes inner bearing (L68149) and race, outer bearing (L44649) and race, grease cap and grease seal. Fits most 3,500-lb axles. Fits axles with #84 Spindles.
Product Features & Specs
- Application: most 3,500-lb axles, including Dexter
- Fits #84 spindle
- Works with electric and hydraulic brakes
- Drum dimensions: 10" diameter x 2-1/4" wide
- Bolt Pattern: 6 on 5-1/2"
- Includes bearings, races, seal, grease cap, wheel bolts and lug nuts
- Bearings:
- Inner bearing: L68149
- Outer bearing: L44649
- Grease cap size: 1.986"
- Lug nuts:
- Lug nut size: 1/2"
- Outer diameter: 13/16"
- Bearings:
- Capacity: 1,750 lbs per hub.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
