Dexter 8-219-9 Oil Bath Hub and Drum Only for 5,200 lb to 7,000 lb Axles - 8 on 6-1/2 - 12 Inch x 2 Inch Drum
Dexter 8-219-9 Oil Bath Hub and Drum Only for 5,200 lb to 7,000 lb Axles - 8 on 6-1/2 - 12 Inch x 2 Inch Drum
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

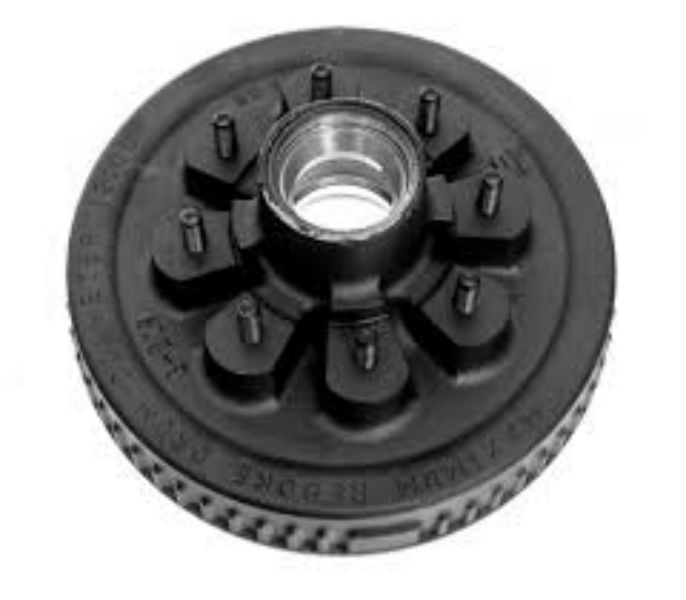

This listing is for one Dexter 8-219-9 Oil Bath Hub and Drum Only for 5,200 lb to 7,000 lb Axles - 8 on 6-1/2 - 12 Inch x 2 Inch Drum
This hub & drum is designed for use with a #42 spindle. Each hub has a 3,500lb capacity. Spindle nut and spindle washer sold separately. Each hub & drum has unique cooling fins to help keep your brakes cool.
Product Features & Specs
- Oil Bath Hub and Drum ONLY!!!
- #42 Spindle
- 25580 Inner / 14125A Outer Bearings
- Fits Dexter 5,200 lb. thru 7,000 lb. Axles
- Capacity of 3,500 lbs. per each
- For Spindles requiring 2 1/4” or 2 1/8” I.D. Seal
- Drum Size 12” x 2”
- Oil Bath applications
- 1/2” Studs Standard
- Std. Paint finish
Items in Kit
• 1 25520 Race (Already Pressed In) 3.265" OD
• 1 14276 Race (Already Pressed In) 2.717" OD
• 1/2" Studs (Already Pressed In)
• Uses 25580 (1.75" ID) and 14125A (1.25" ID) bearings (sold separately)
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
