Dexter 8-219-9UC3-A Oil Bath Hub and Drum Assembly for 5,200 lb to 7,000 lb Axles - 8 on 6-1/2 - 12 Inch x 2 Inch Drum
Dexter 8-219-9UC3-A Oil Bath Hub and Drum Assembly for 5,200 lb to 7,000 lb Axles - 8 on 6-1/2 - 12 Inch x 2 Inch Drum
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
This listing is for one Dexter 8-219-9UC3-A Oil Bath Hub and Drum Assembly for 5,200 lb to 7,000 lb Axles - 8 on 6-1/2 - 12 Inch x 2 Inch Drum
This hub & drum is designed for use with a #42 spindle. Each hub has a 3,500lb capacity. Spindle nut and spindle washer sold separately. Each hub & drum has unique cooling fins to help keep your brakes cool.
Product Features & Specs
- Application: 5,200 lb. to 7,000 lb. Dexter axles with spindles that require a 2-1/4" ID seal (10-63)
- Works with both electric and hydraulic brakes
- Drum dimensions: 12" diameter x 2" wide
- Bolt pattern: 8 on 6-1/2"
- Includes bearings, races, seal, oil cap, wheel bolts and lug nuts
- Stud diameter: 1/2"
- Bearings:
- Inner bearing: 25580
- Outer bearing: 14125A
- Capacity: 3,500 lbs per hub

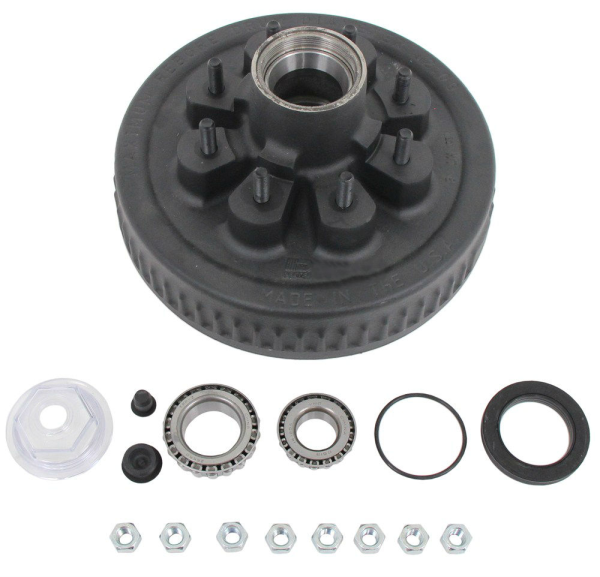

Items in Kit
• 1x 25580 Inner Bearing (1.75" ID)
• 1x 14125A Outer Bearing (1.25" ID)
• 1x 25520 Inner Race (Already Pressed In) 3.265" OD
• 1x 14276 Outer Race (Already Pressed In) 2.717" OD
• 1x 10-63 Grease Seal (2.25" x 3.376")
• 1x 21-35 Oil Cap
• 1x 46-32 Oil Cap Plug
• 1x 10-45 Oil Cap O-ring
• 8 xX1023R Coned Wheel Nuts
• 1x 8 on 6.5" Hub & Drum
• 3,500lb Capacity Per Hub
• Use with a 12" x 2" brake
Dexter Trailer Hubs and Drums
- 8 on 6-1/2 Inch
- For 5200 lbs Axles
- For 6000 lbs Axles
- For 7000 lbs Axles
- Hub with Integrated Drum
- 16 Inch Wheel
- 16-1/2 Inch Wheel
- 17 Inch Wheel
- 17-1/2 Inch Wheel
- Oil Bath
- 1/2 Inch Stud
- 14125A
- 25580
- Dexter
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
