Dexter 9-44-1 Non-ABS Brake Drum Only for 9,000 lb to 10,000 lb General Duty Axles - 8 on 6-1/2
Dexter 9-44-1 Non-ABS Brake Drum Only for 9,000 lb to 10,000 lb General Duty Axles - 8 on 6-1/2
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

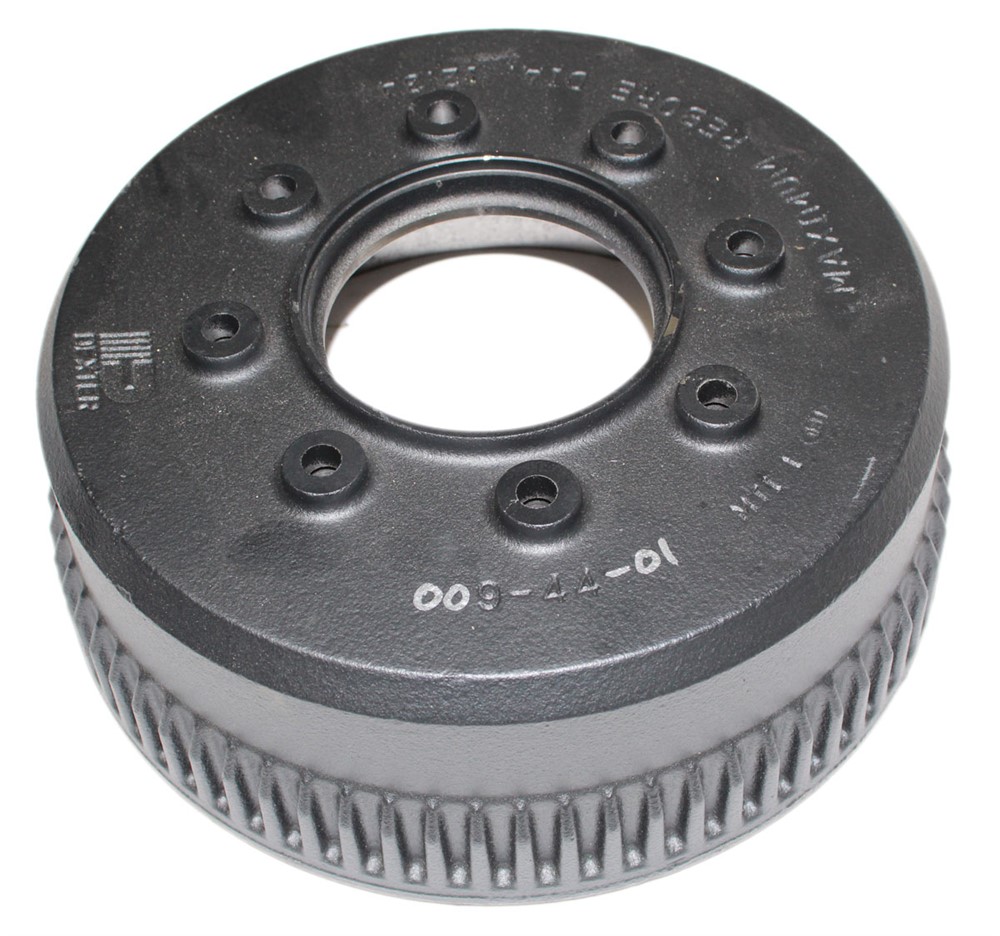

This listing is for one Dexter 9-44-1 Non-ABS Brake Drum Only for 9,000 lb. to 10,000 lb. Axles - 8 on 6-1/2
This Dexter drum is to be used with part number H82883BX or 8-288-3 hub. The drum is used on 9-10K GD axles made before July of 2009 and 9K axles after 10/1989. The drum uses a brake assembly that measures 12 1/4" x 3 3/8". To mount the drum to the hub you will need 8 mounting bolts that have a part number of 7-245. The mounting bolts are sold separately.
Product Features and Specs
- Adds or replaces a brake drum for Dexter "old-style," 2-piece hub and drum
- Non-ABS
- Mounting bolts (7-245) sold separately
- Application:
- Dexter trailer hub assembly for 9,000 and 10,000-lb axles - 8 on 6-1/2 - oil bath (8-288-3UC1)Drum size: 12-1/4" x 3-3/8"
- Pilot hole diameter: 4-3/4
- Bolt pattern: 8 on 6-1/2
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
