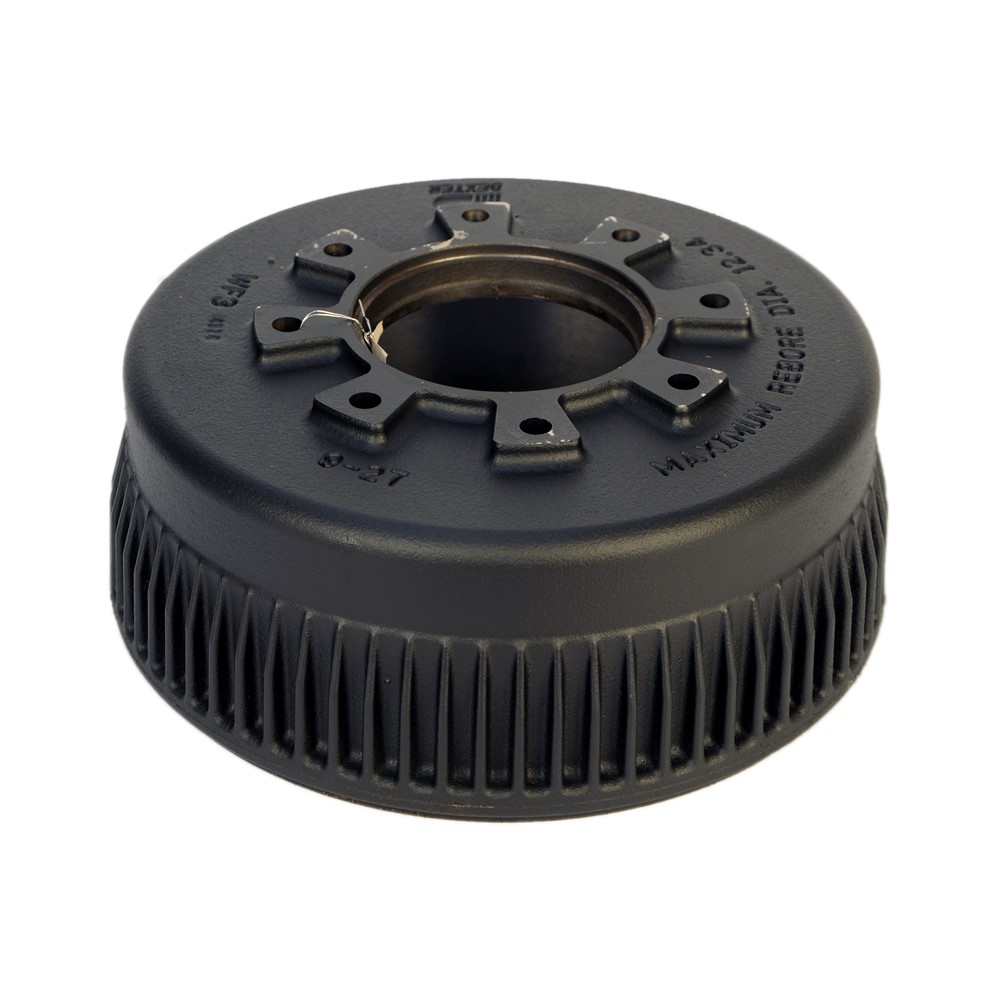

Dexter 9-27-1 Non-ABS Brake Drum Only for 10,000 lb. Axles - 8 on 6-1/2
Dexter 9-27-1 Non-ABS Brake Drum Only for 10,000 lb. Axles - 8 on 6-1/2
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
This listing is for one Dexter 9-27-1 Non-ABS Brake Drum Only for 10,000 lb. Axles - 8 on 6-1/2
Trailer brake drum works with 10,000-lb oil bath hub assembly (8-214-5UC1 - sold separately). Installs on 10,000-lb heavy-duty Dexter axles.
Product Features
- Trailer drum provides surface area for brake shoes to grip when brake is activated
- Designed to work with Dexter 10,000-lb oil bath hub assembly (8-214-5UC1 - sold separately)
- Compatible with non-ABS electric and hydraulic drum brakes
- Sturdy iron construction
- Made in the USA
- Weight capacity: 5,000 lbs per drum
Product Features & Specs
• Dexter 10k heavy duty brake drum only
• Fits 12-1/4" x 4" drum brakes
• Pilot size: 4-3/4"
• 8-214-5 hub sold separately
• Requires (8) 7-244 drum mounting bolts sold separately
Dexter Accessories and Parts - 9-27-1
- Trailer Hubs and Drums
- Drums
- 9-27-1
- 8 on 6-1/2 Inch
- Dexter
- 12-1/4 x 4 Inch
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
