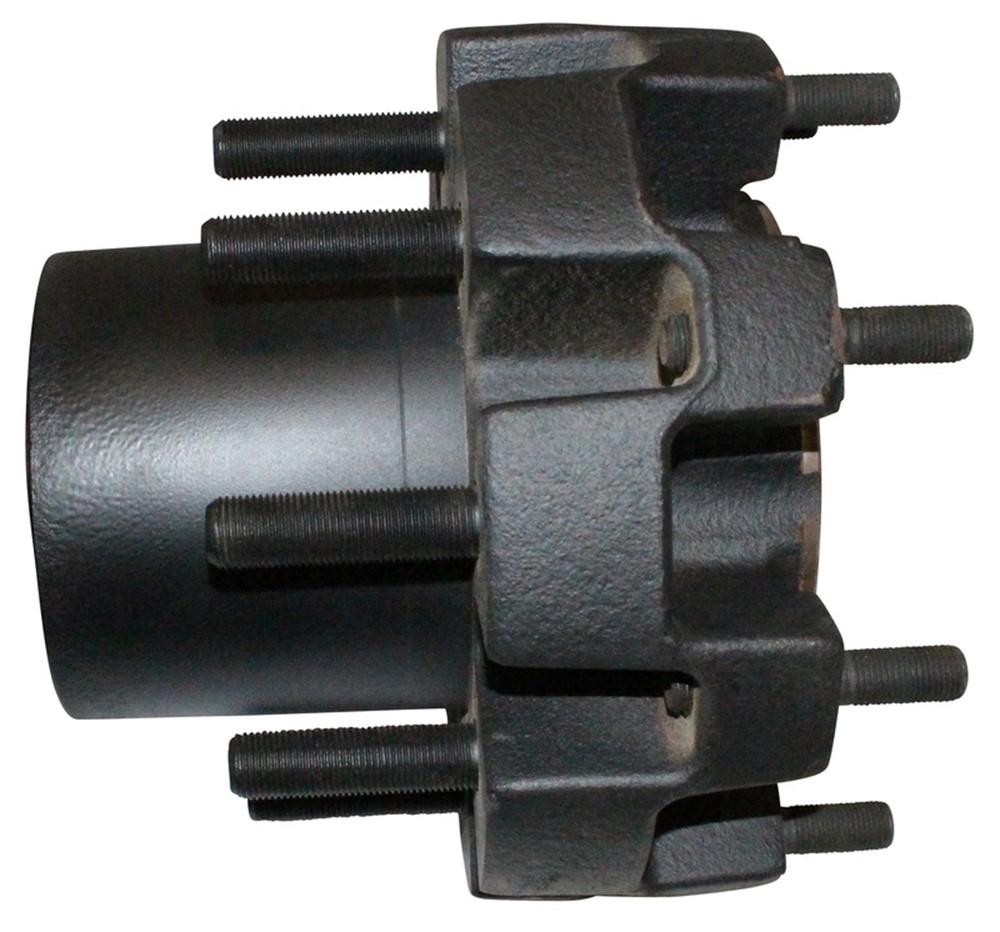

Dexter 8-214-5UC1 Complete Oil Bath Hub Assembly - 8 on 6.5 - 395S/387A - Fits Dexter 10K Axles
Hub is designed for use on trailer idler axles. Fits 10,000-lb axles. Inner bearing (395S) and race, outer bearing (387A) and race, oil seal, oil cap, wheel bolts, and lug nuts included. Oil bath system allows for easy maintenance.
Product Features
- Trailer hub assembly fits idler axles
- Bearings, races, seal, oil cap, wheel bolts, and lug nuts are included
- Oil bath lets you check lubricant level without disassembling the hub
- Look through clear oil cap to check lubrication
- Sturdy iron construction
- Hub and drum are made in the USA
Product Specifications
- Application: 10,000-lb trailer axles
- Pilot hole diameter: 4-3/4"
- Bolt pattern: 8 on 6-1/2"
- Wheel stud diameter: 5/8"
- Weight capacity: 5,000 lbs per hub
Bearing, Race, & Seal Information
- Bearings (included)
- Inner bearing: 395S (2.625" inner diameter)
- Outer bearing: 387A (2.250" inner diameter)
- Races (included)
- Inner race: 394A
- Outer race: 382A
- Oil seal (included): 10-56
- Inner diameter: 3.125"
- Outer diameter: 4.50"

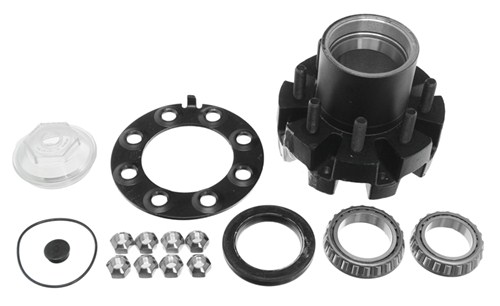

Includes
- 1x 395S Inner Bearing (2.625" ID)
- 1x 387A Outer Bearing (2.25" ID)
- 1x 10-56 Oil Seal (3.125" x 4.5")
- 1x 21-36 Oil Cap
- 1x 46-32 Oil Cap Plug
- 1x 33-52-1 Wheel Retaining Ring
- 8x 6-109 5/8" Coned Wheel Nuts
- 1x 8-214-5 8 on 6.5" 5,000lb Capacity Hub
To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.
Dexter Trailer Hubs and Drums - 8-214-5UC1
- 8 on 6-1/2 Inch
- For 10000 lbs Axles
- Hub
- 16 Inch Wheel
- 16-1/2 Inch Wheel
- 17 Inch Wheel
- 17-1/2 Inch Wheel
- Standard
- 387A
- 395S
- Dexter
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
