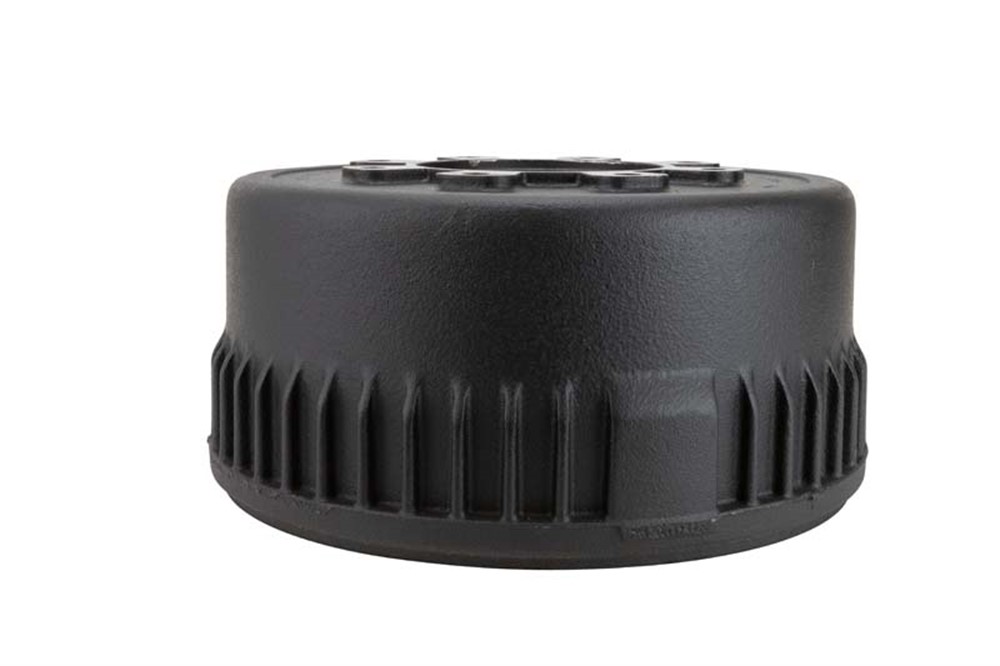

Dexter 9-28-5 Brake Drum with ABS - 12.25 Inch x 4 Inch - Fits Dexter 12K - 15K Axles
Dexter 9-28-5 Brake Drum with ABS - 12.25 Inch x 4 Inch - Fits Dexter 12K - 15K Axles
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Dexter 9-28-5 Brake Drum with ABS - 12.25 Inch x 4 Inch - Fits Dexter 12K - 15K Axles
Product Specs
- Brake Drum ONLY!
- Fits Oil Bath Hub
- Hub (not included) uses 3984 Inner / 28682 Outer Bearing
- Fits Dexter 15K Axles, RH & LH Side
- Capacity of 7,500 lbs. per each
- Drum Size: 12 1/4” x 5”
- Drum comes with ABS exciter ring installed
- Standard stud length, for use with steel wheels
Dexter Drum Only ABS w/Exciter Ring For 12-15K Axles 9-28-5
This drum can be used with Dexter 12,000 lb and 15,000 lb hubs. Drum uses a brake assembly that measures 12 1/4" X 5". For axles equipped with ABS. These drums are not interchangeable with non-ABS drums. Hub and 7-244 mounting bolts are not included with the drum.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
