Dexter 8-214-8UC1 Complete Oil Bath Hub Assembly - 8 on 6.5 - 33984/28682 - Fits Dexter 12K Axles - 12.25 x 5 Inch Drum
Dexter 8-214-8UC1 Complete Oil Bath Hub Assembly - 8 on 6.5 - 33984/28682 - Fits Dexter 12K Axles - 12.25 x 5 Inch Drum
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Hub fits 12,000-lb general-duty Dexter axles. Inner bearing (3984) and race, outer bearing (28682) and race, oil seal, cap, and lug nuts included. Oil bath system allows for easy maintenance. Drum and mounting bolts (7-103) not included.
Product Features
- Trailer hub assembly fits idler axles
- Oil bath lets you check lubricant level without disassembling the hub
- Look through clear oil cap to check lubrication
- Bearings, races, oil seal, oil cap, retaining ring, and lug nuts are included
- Sturdy iron construction
Product Specifications
- Application: 12,000-lb axles, Hi or Lo-Profile
- Bolt pattern: 8 on 6-1/2"
- Pilot hole diameter: 4-3/4"
- Wheel bolt diameter: 5/8"
- Weight capacity: 6,000 lbs per hub
- Drum Size: 12 1/4” x 5”
- 4.75” Hub Pilot
Bearing & Seal Information
- Bearings (included)
- Inner bearing: 3984 (2.625" inner diameter)
- Outer bearing: 28682 (2.25" inner diameter)
- Unitized oil seal (included): 10-56
- Inner diameter: 3.125"
- Outer diameter: 4.5"
- Oil cap kit (included): RG04-270
- 21-36 Cap
- 10-50 O-ring
- 46-32 Plug

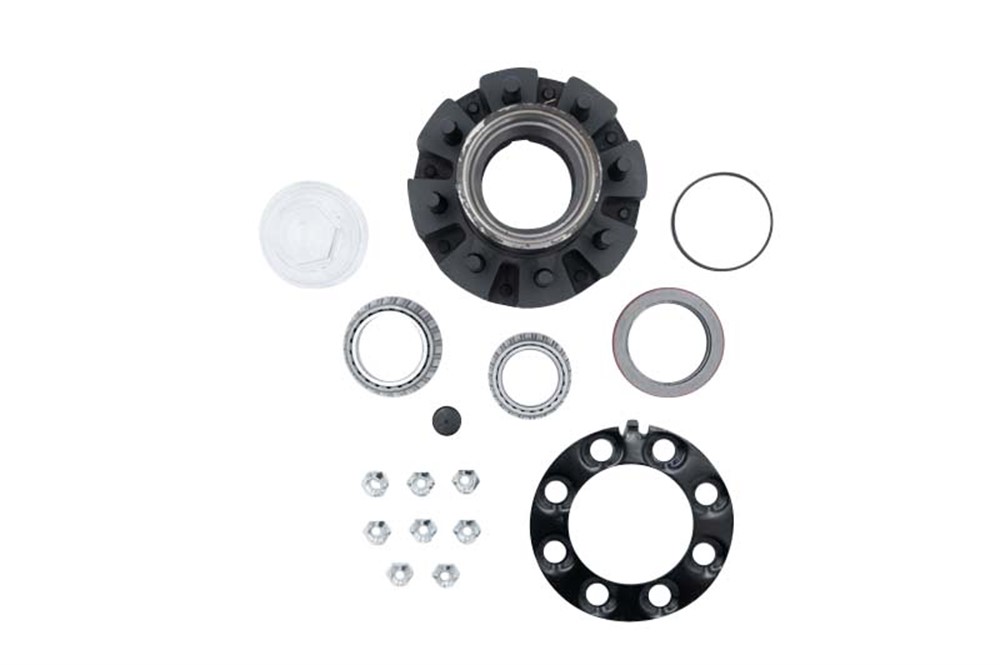

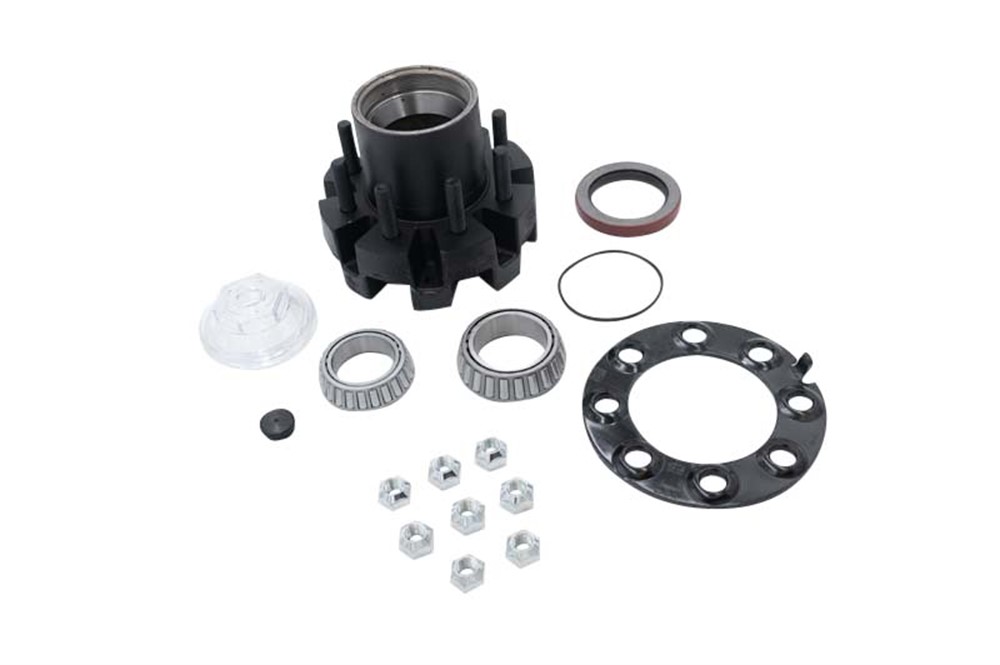

Kit Includes
- 1x 3984 Inner Bearing (2.625" ID)
- 1x 28682 Outer Bearing (2.25" ID)
- 1x 10-56 Oil Seal (3.125" x 4.5")
- 1x 21-36 Oil Cap
- 1x 46-32 Oil Cap Plug
- 1x 10-50 O-Ring
- 1x 33-52-1 Wheel Retaining Ring
- 8x 6-109 5/8" Coned Wheel Nuts
- 1x 8-214-8 8 on 6.5" 6,000lb Capacity Hub
To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter
Dexter Trailer Hubs and Drums - 8-214-8UC1
- 8 on 6-1/2 Inch
- For 12000 lbs Axles
- Hub
- Oil Bath
- 5/8 Inch Stud
- 28682
- 3984
- Dexter
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
