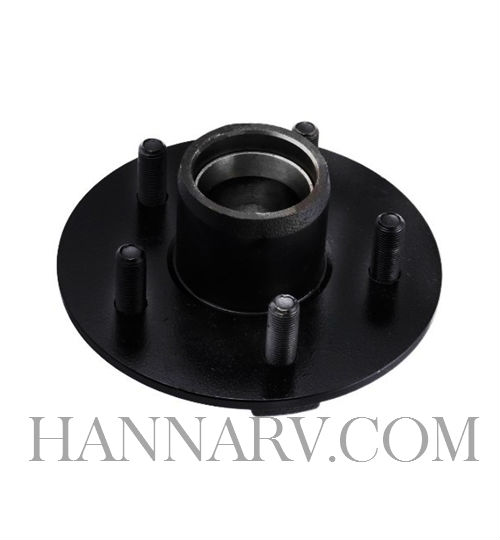

Dexter 8-258-5 Painted Hub Only - 5 on 4.5 - 6.5 Inch Hub Flange - L44643 Bearings - Fits BT8 1 Inch Spindle
Dexter 8-258-5 Painted Hub Only - 5 on 4.5 - 6.5 Inch Hub Flange - L44643 Bearings - Fits BT8 1 Inch Spindle
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Dexter Hub W/ 5 on 4.5" Bolt Pattern & 6.5" Diameter Flange For 2-2.2k Axles W/12-15" Wheels
There is no need to worry about the races as they are already pressed into the hub for you. This hub is designed for use with a BT8 or BTR spindle. Each hub has a capacity of 1,000lbs using the L44643 bearings and 1,100lbs using the L44649 bearings. The bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle washer sold separately. Kit with hardware is available.
Product Specifications
- Painted Hub Only
- Fits BT8 1” Spindle
- 5 on 3.5" Bolt Pattern
- 1x L44610 Outer Race (Already Pressed In) 1.98" OD
- 1x L44610 Inner Race (Already Pressed In) 1.98" OD
- Uses L44643 (1" ID) or L44649 (1.063" ID) bearings(sold separately)
- Capacity of 1,000 lbs. per hub
- 6 1/2” diameter hub flange
- Use with 12” to 15” wheels
- Std. Paint or GAL-DEX™ corrosion resistant finish (Marine)
To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
